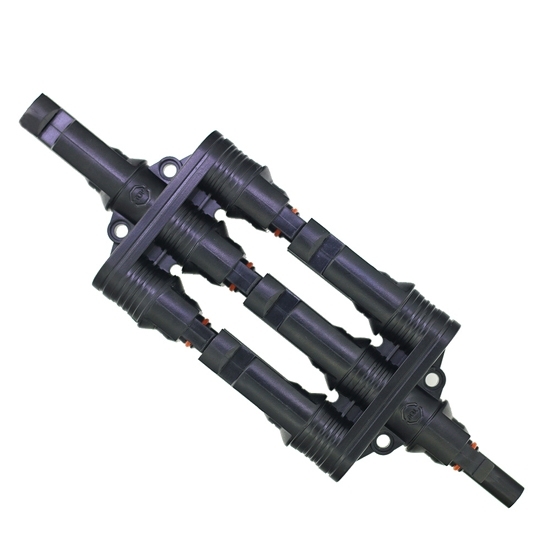

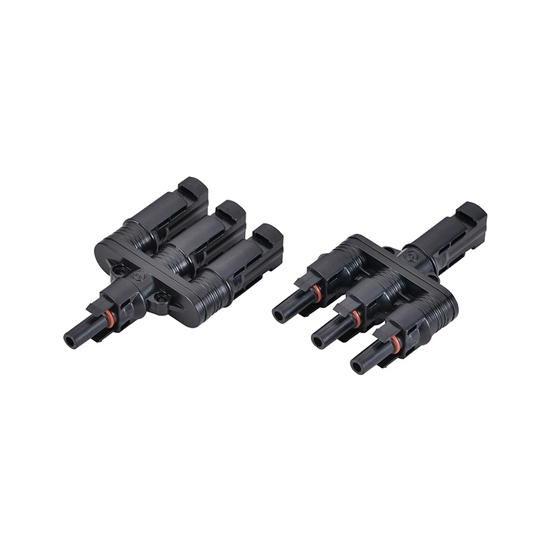

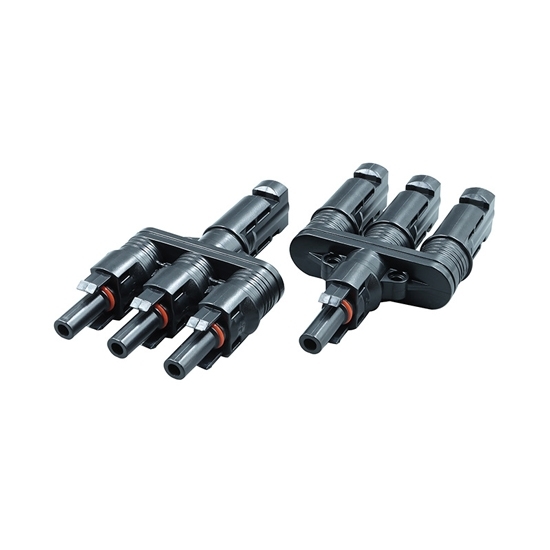

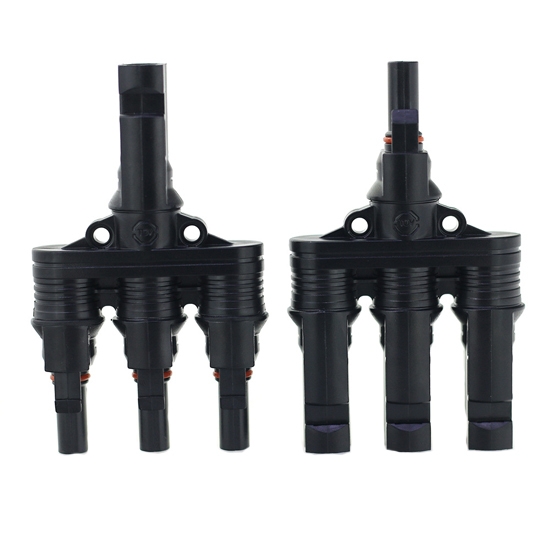

Solar PV Panel Connector, H Branch 3 To 1
New
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
Solar PV Panel Connector, H Branch 3 To 1
from
$11.50
Ex Tax: $11.50
- Stock: In Stock
- Model: HZTOHZ-SC-MCH301
- Weight: 1.00
- SKU: HZTOHZ-SC-MCH301
Solar panel H branch 3 to 1 connector waterproof rating reaches IP68. The conductor and the insulating shell are closely combined, and the virtual position is small. The male seat and the female seat are opposite each other and the space is small. Insertion force is low and flexible cords can be used.

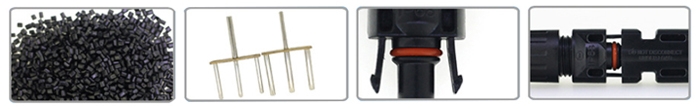

Features
- High-quality PPO material: High-quality materials, radiation resistance, low-temperature resistance, high-temperature resistance, high strength, impact resistance, and flame retardant.
- T2 copper conductor: Copper is tin/silver plated, wear-resistant, corrosion-resistant, and oxidation-proof, with low resistance and strong conductivity.
- High-strength waterproof ring: The product adopts a high-strength waterproof ring, insulating silicone, waterproof and dustproof, and protection grade IP68.
- Stable self-locking structure: The joints are connected by compression, and the male and female heads have a self-locking structure.

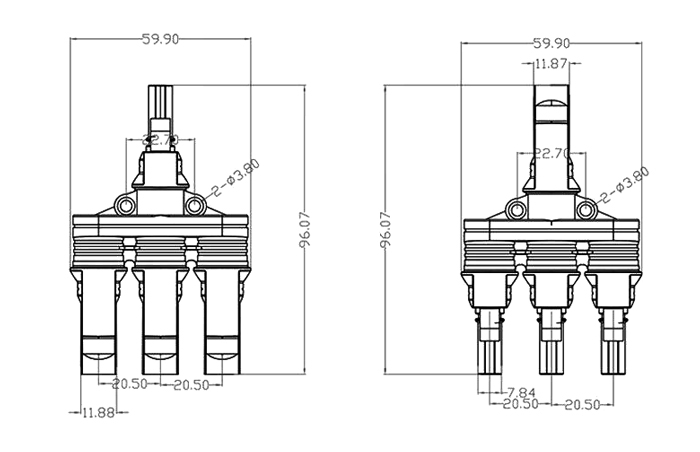

Dimension ( Unit: mm )

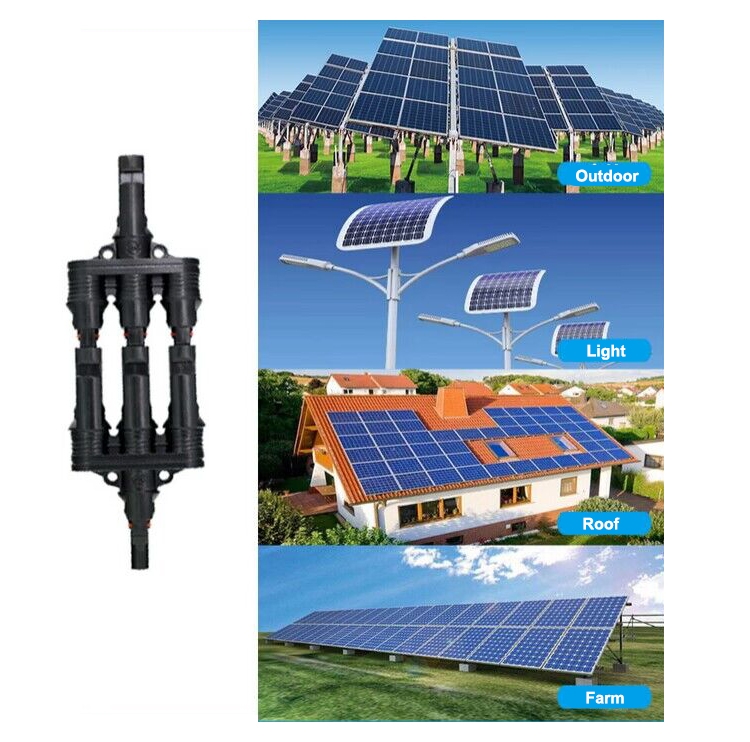

Application
| Model | HZTOHZ-SC-MCH301 |
| Rated Voltage | 1000V |
| Rated Current | 50A |
| Insulation Material | PPO Material |
| Conductor Material | Tinned Copper |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Safety Grade | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-Point Connectivity |
| Self-locking System | Embedded |
| Pullout force | ≥50N |
| Insertion force | ≤50N |
| Flame Retardant Grade | UL94-VO |
| Net Weight | 122.5g |
