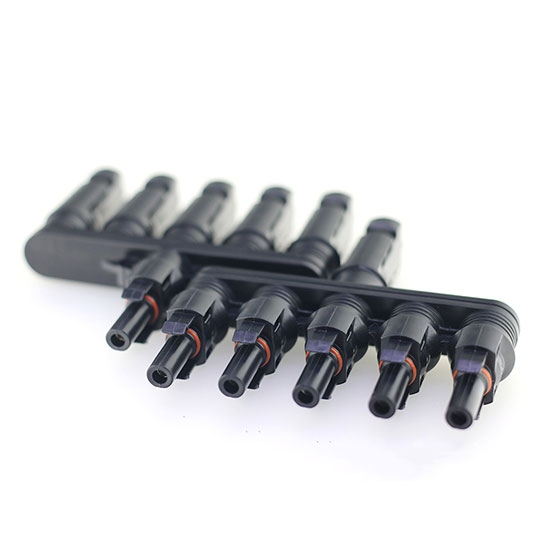

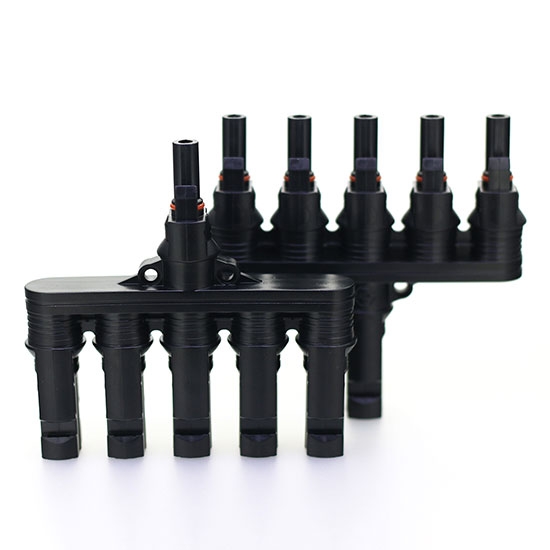

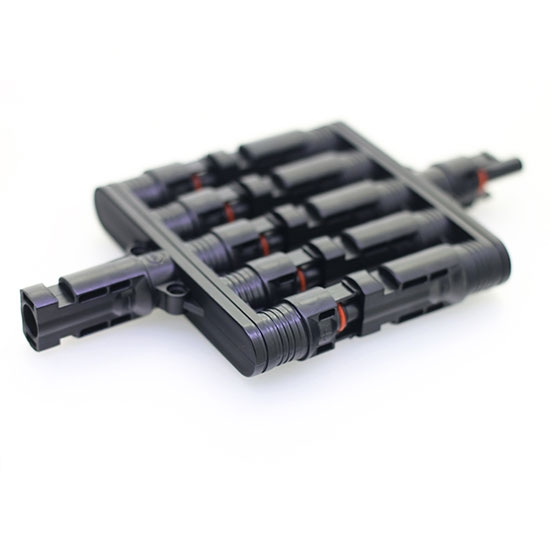

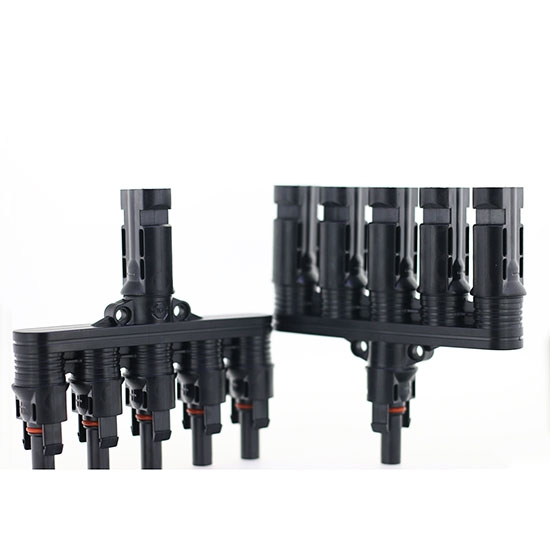

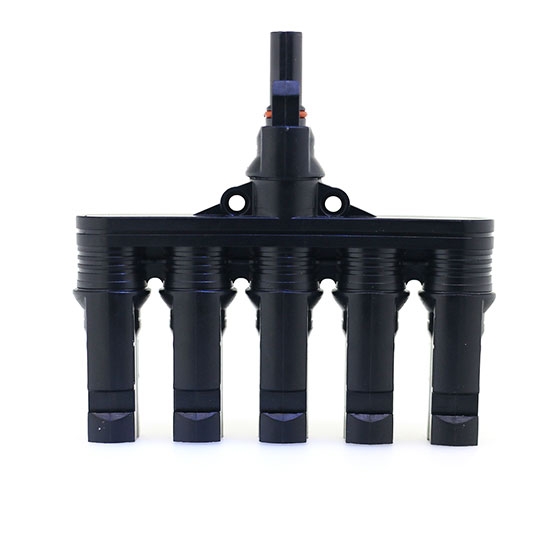

Solar Panle Connector, H Branch 5 To 1
from
$11.85
Ex Tax: $11.85
- Stock: In Stock
- Model: HZTOHZ-SC-MCH501
- Weight: 1.00
- SKU: HZTOHZ-SC-MCH501
The H-branch 5 to-1 solar panel connector features a more precise construction, with a tightly bonded conductor and insulating shell, small false position, smaller false position when plug and socket are pairs, and low insertion force, making the solar connector suitable for flexible wire connections. This solar module connector has flame retardant grade UL94-VO to ensure safety in high-temperature environments. Not only provides a reliable electrical connection for PV systems but also can meet safety and performance requirements.

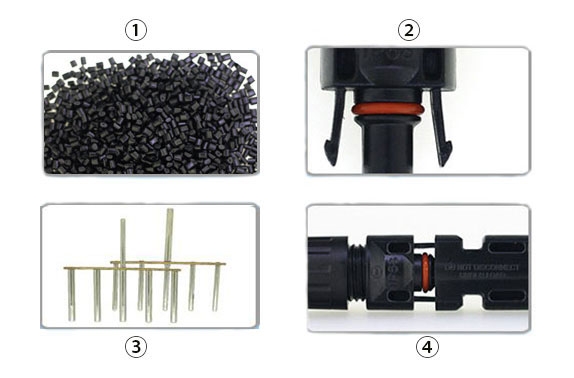

Features
- High-Quality PPO Material
The solar panel connector is made of high-quality PPO material, which is not only resistant to radiation, low temperature, and high temperature, but also resistant to high strength, impact resistance, and flame retardant function. - High Strength Waterproof Ring
The solar module connectors use a high-strength waterproof ring as the internal structure, the waterproof ring is made of insulating silicone, which can be waterproof and dustproof, with a protection level of IP68. - T2 Copper Conductor
Solar connectors use open type core, all for the copper tin/silver plating, this material is wear-resistant, corrosion-resistant ability is very strong, and T2 copper conductor itself has the characteristics of oxidation, resistance is small and conductivity is strong. - Stable Self-locking Structure
The connection of the solar panel connector adopts the compression method to connect, the male and female connectors are equipped witha self-locking structure, which can make the solar connector open and close freely.

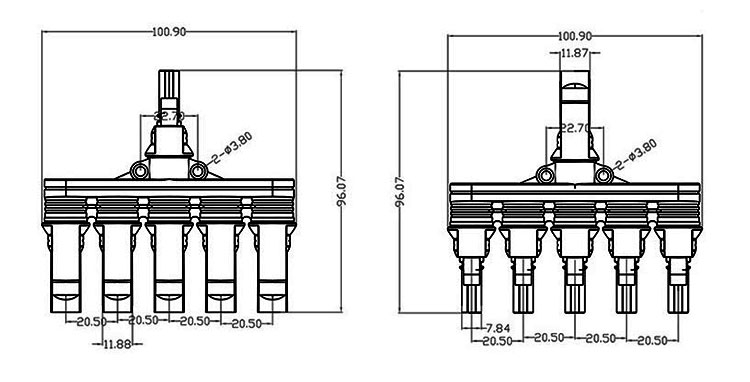

Dimension ( Unit: mm )

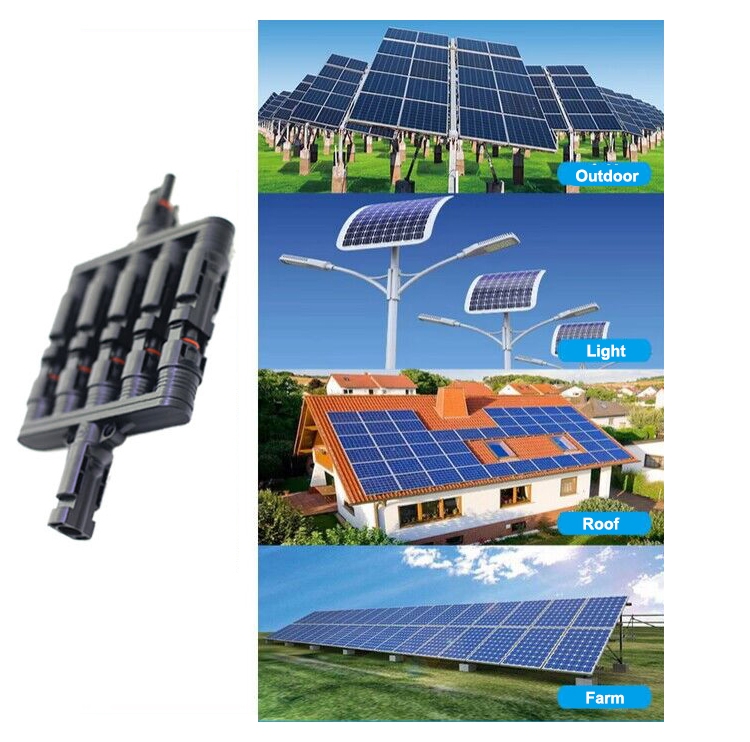

Application
| Model | HZTOHZ-SC-MCH501 |
| Rated Voltage | 1000V |
| Rated Current | 50A |
| Insulation Material | PPO Material |
| Conductor Material | Tinned Copper |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Safety Grade | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-Point Connectivity |
| Self-locking System | Embedded |
| Pullout Force | ≥50N |
| Insertion Force | ≤50N |
| Flame Retardant Grade | UL94-VO |
| Net Weight | 160g |
