Multi-Contact 4 Millimetre Solar Connector
New
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
Multi-Contact 4 Millimetre Solar Connector
from
$1.29
Ex Tax: $1.29
- Stock: In Stock
- Model: HZTOHZ-SC-4M
- Weight: 1.00
- SKU: HZTOHZ-SC-4M

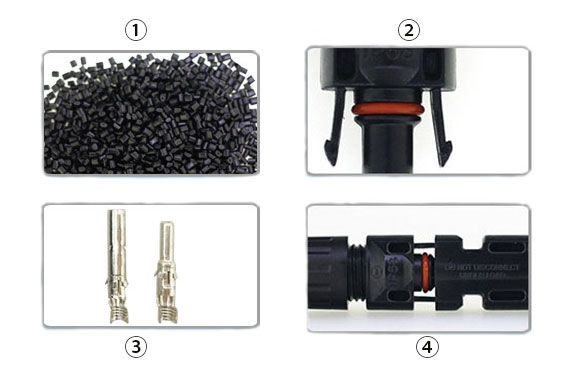

Fetures:
- High Quality PPO Material
The multi-contact 4 millimetre solar panel connector is made of high quality PPO material, which is not only resistant to radiation, low temperature and high temperature, but also resistant to high strength, impact resistance and flame retardant function. - T2 Copper Cconductor
Multi-contact 4 millimetre solar connectors use open type core, all for the copper tin/silver plating, this material is wear-resistant, corrosion-resistant ability is very strong, and T2 copper conductor itself has the characteristics of oxidation, resistance is small and conductivity is strong. - High Strength Waterproof Ring
The multi-contact 4 millimetre connectors use high-strength waterproof ring as the internal structure, the waterproof ring is made of insulating silicone, which can be waterproof and dustproof, with a protection level of IP68. - Stable Self-locking Structure
The connection of solar panel connector adopts the compression method to connect, the male and female connectors are equipped with self-locking structure, which can make the multi-contact 4 millimetre pv connector open and close freely.

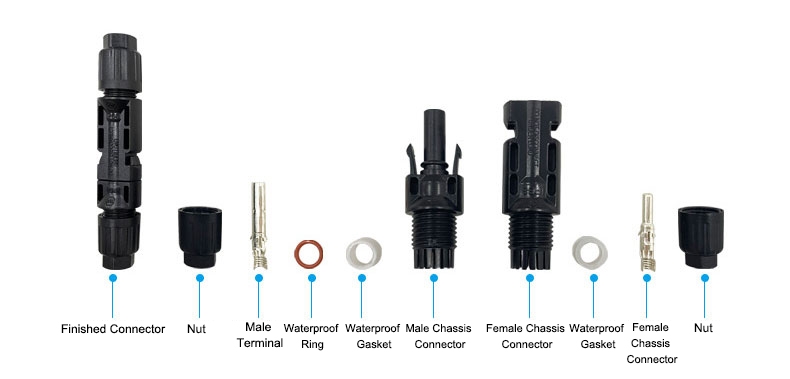

Details:

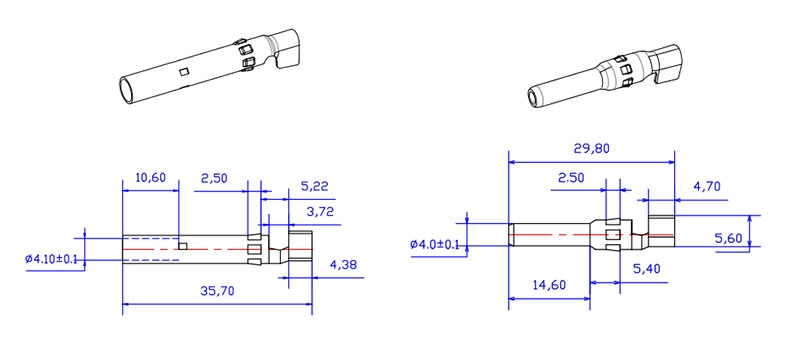

Overall Dimension Drawing (unit: mm)

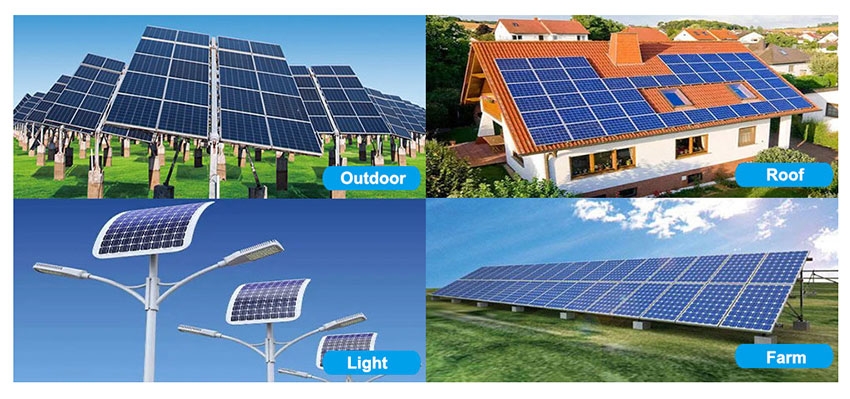

Application:
| Model | HZTOHZ-SC-4M |
| Rated Voltage | 1000V |
| Insulation Material | PPO Material |
| Conductor Material | Copper Tinned |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Safety Grade | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.5mΩ |
| Connection System | Multi-Point Connectivity |
| Self-locking System | Embedded |
| Connection Method | Crimp |
| Wiring Specification | 2.5mm2, 4mm2, 6mm2 |
| Rated Current | 1.5mm2: 17A/2.5mm2: 22.5A/4mm2～6mm2: 30A |
| Flame Retardant Grade | UL94-VO |
| Net Weight | 16g |
