Solar Cable Connector, Y Branch 4 To 1
from
$21.55
Ex Tax: $21.55
- Stock: In Stock
- Model: HZTOHZ-SC-MCY401
- Weight: 1.00
- SKU: HZTOHZ-SC-MCY401
Inverter solar panel cable connectors for sale are made of high-quality materials, especially the Y-branch design, providing reliable performance from 4 connections to 1. The solar wire connector is made of high-quality PPO material and has a thickened copper core to ensure efficient conductivity and resistance to pressure and abrasion. In addition, the solar wire connectors have excellent waterproof and dustproof performance to ensure reliable operation in various harsh environments. The design is intended to provide a reliable electrical connection for solar systems while ensuring long-term stability and durability.

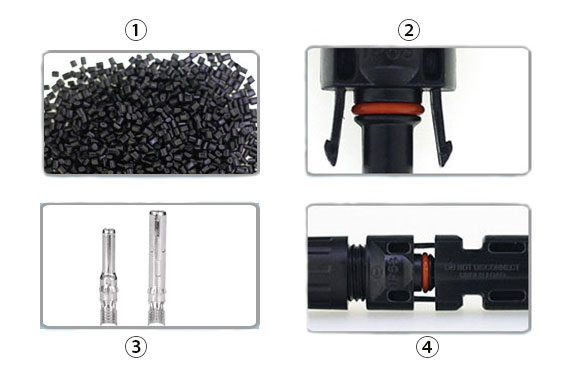

Features
- High-Quality PPO Material
The solar panel cable connector is made of high-quality PPO material, which is not only resistant to radiation, low temperature, and high temperature, but also resistant to high strength, impact resistance, and flame retardant function. - High Strength Waterproof Ring
The solar cable connectors use the high-strength waterproof ring as the internal structure, the waterproof ring is made of insulating silicone, which can be waterproof and dustproof, with a protection level of IP68. - T2 Copper Conductor
Solar wire connectors use open type core, all for the copper tin/silver plating, this material is wear-resistant, corrosion-resistant ability is very strong, and T2 copper conductor itself has the characteristics of oxidation, resistance is small and conductivity is strong. - Stable Self-locking Structure
The connection of the solar cable connector adopts the compression method to connect, the male and female connectors are equipped with a self-locking structure, which can make the solar connector open and close freely.

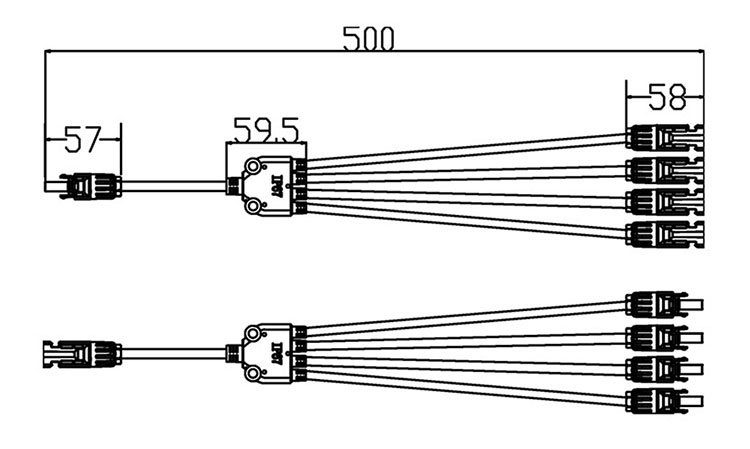

Dimension ( Unit: mm )

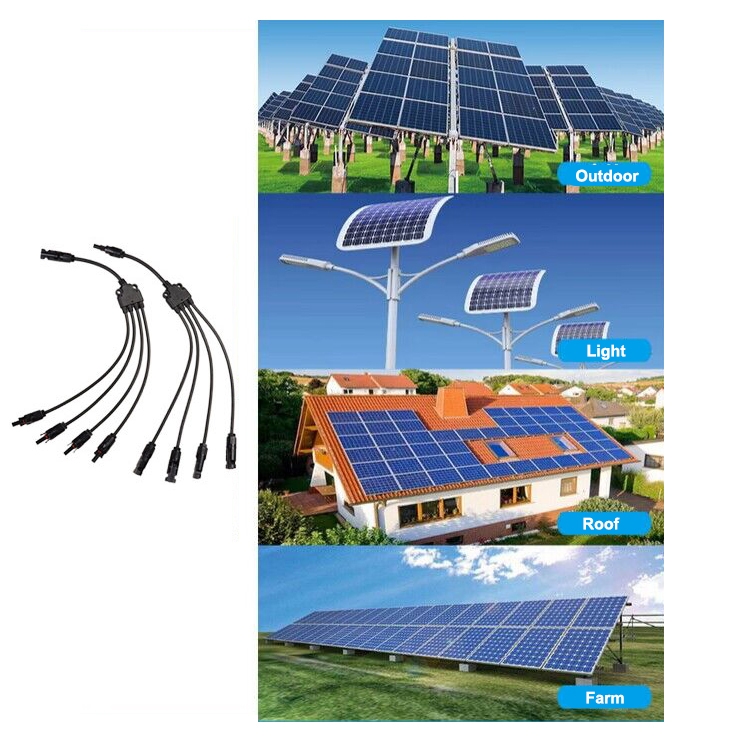

Application
| Model | HZTOHZ-SC-MCY401 |
| Rated Voltage | 1000V |
| Rated Current | 30A |
| Insulation Material | PPO Material |
| Conductor Material | Tinned Copper |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Safety Grade | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-Point Connectivity |
| Self-locking System | Embedded |
| Connection Method | Crimping |
| Wiring Specification | 4mm2/6mm2 |
| Flame Retardant Grade | UL94-VO |
| Net Weight | 440g |
