Solar Panel Cable Connector, Y Branch 2 To 1
from
$6.79
Ex Tax: $6.79
- Stock: In Stock
- Model: HZTOHZ-SC-Y21
- Weight: 1.00
- SKU: HZTOHZ-SC-Y21

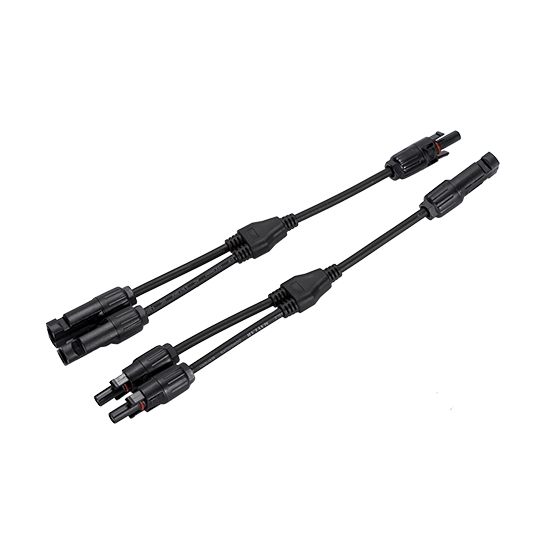

Y branch solar panel connectors play a crucial role in facilitating the parallel wiring of solar panels, specifically photovoltaic (PV) modules. Available in pairs, these 1000V rated voltage and a robust 30A rated current specialized "Y-Connectors" with IP68 waterproof and hard plastic UL94-VO material are designed to contribute to the efficiency and longevity of your solar power system.
Features
- Sturdy Hard Plastic Construction: The y-branch solar panel connector is made from robust hard plastic, providing durability and resilience against environmental factors.
- Parallel Connectivity: Facilitates parallel wiring of solar modules, allowing for increased energy production by efficiently combining the output of multiple panels.
- Universal Compatibility: Engineered to be compatible with standard solar panel configurations, making it adaptable to a variety of solar energy systems.
- Waterproof and Dustproof Design: Equipped with a waterproof and weatherproof design, safeguarding the y branch PV panel connector against moisture and environmental elements, enhancing its suitability for outdoor applications.

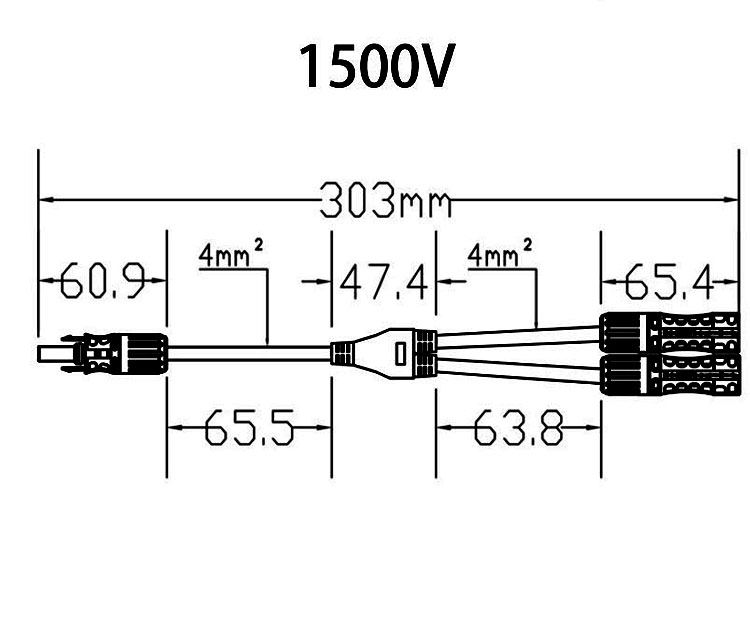

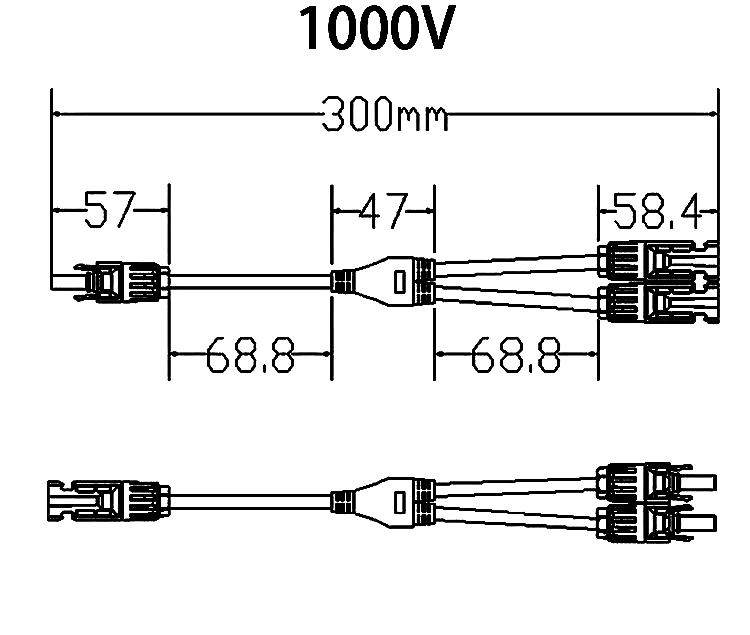

Solar Connector Size
Application
| Model | HZTOHZ-SC-Y21 |
| Rated Voltage | 1000V / 1500V |
| Insulation Material | PPO |
| Conductor Material | Copper tin-plated |
| Ambient Temperature | -40℃~+95℃ |
| Product Temperature | -40℃~+135℃ |
| Security Class | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-point connection |
| Self-Locking System | Embedded |
| Wiring Method | Crimping |
| Wiring Specifications | 4mm |
| Rated Current | 30A |
| Flame Retardant Rating | UL94-VO |
