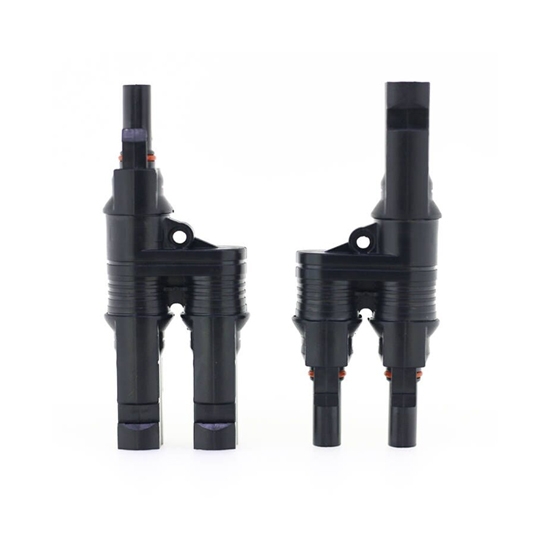

Solar Module Connector, H Branch 2 To 1
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-SC-H21
- Weight: 1.00
- SKU: HZTOHZ-SC-H21
Elevate your solar power systems with our cutting-edge h branch solar panel connector, designed to meet and exceed your energy transmission requirements. Engineered with precision, this connector boasts a substantial 1000V rated voltage and 50A rated current and crafted from hard plastic with a UL94-VO certification, this connector not only guarantees durability but also meets stringent safety standards. What sets our h branch solar connector apart is its IP68 waterproof rating, making it impervious to the elements. Whether rain or shine, this connector ensures a secure and weather-resistant connection, safeguarding your solar infrastructure against environmental challenges. You can enjoy a seamless and stable energy transmission experience, backed by the reliability of our certified and high-quality materials.
Features
- DC Connectivity: Used to link the direct current (DC) generated by large solar panels. Solar panels typically produce DC power, and solar connectors offer a secure and reliable means of transferring this electrical energy from the panels to other system components.
- Waterproof and Dustproof Design: Typically designed with waterproof and dustproof features to withstand outdoor conditions such as water and dust. This ensures the connector operates normally in various weather conditions, preserving the safety and reliability of electrical connections.
- High Voltage and Current Carrying Capacity: Requires sufficient voltage and current carrying capacity to handle the high power output in large solar power systems. This ensures the solar panel connector can withstand the voltage and current generated by the system, maintaining stability and safety in the connection.
- Plug-and-Play Capability: Generally designed with a plug-and-play feature for easy installation and maintenance. They allow for quick connections and disconnections, simplifying the installation and maintenance processes of the system.
- Standardization: Typically adheres to specific standards and specifications to ensure compatibility and interoperability.

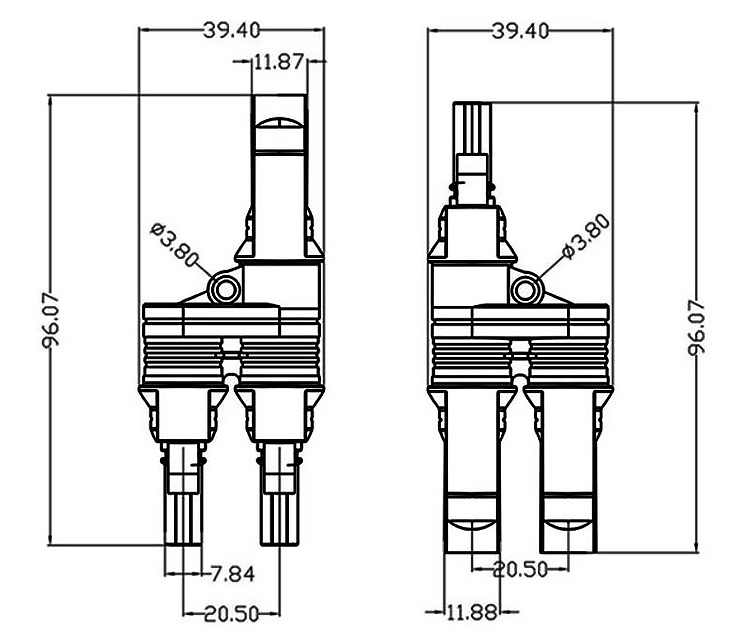

H Branch Solar Connector Size
H Branch Solar Module Connector Application
| Model | HZTOHZ-SC-H21 |
| Rated Voltage | 1000V |
| Insulation Material | PPO |
| Conductor Material | Copper tin-plated |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Security Class | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-point connection |
| Self-Locking System | Embedded |
| Insertion Force | ≤50N |
| Pulling out Force | ≥50N |
| Rated Current | 50A |
| Flame Retardant Rating | UL94-VO |
