7.5 Hp Horizontal Centrifugal Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-HCP-5500W
- Weight: 1.00
- SKU: HZTOHZ-HCP-5500W
7.5 hp horizontal centrifugal pump with 7.0m3/h maximum flow, 61.5m maximum head, and 40mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-40-250B | ||
| Weight | 125kg | ||
| Size | 465*640*330mm | ||
| Power | 7.5 hp (5.5kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 3.8m3/h (16.7 gpm, American system) | 5.5m3/h (24.2 gpm, American system) | 7.0m3/h (30.8 gpm, American system) |
| Head (max. head to min. head) | 61.5m (202ft) | 60m (197ft) | 56m (184ft) |
| Efficiency | 23% | 27% | 26% |
| Inlet diameter | 40mm (1-1/2 inch) | ||
| Outlet diameter | 40mm(1-1/2 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 250mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

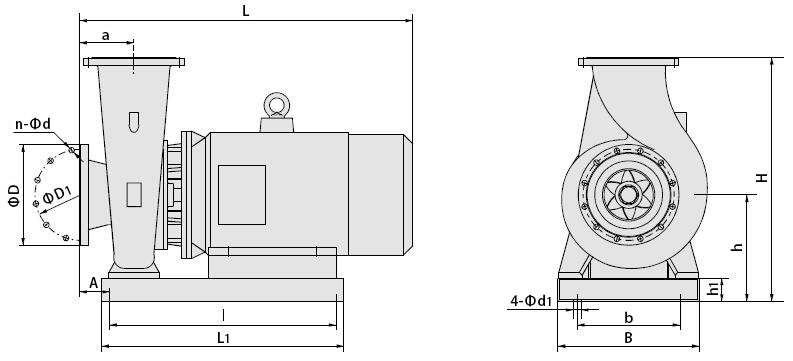

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 260 | 465 | 575 | 80 | 55 | 420 | 330 | 370 | 230 | 80 | 4-Φ14 | Φ150 | Φ110 | 4-Φ18 |
Tips: Operation steps of centrifugal pump startup
After completing preparations, the centrifugal pump can be started. After starting, when the pump speed is stable, check the pressure and current, and pay attention to the vibration and noise. When the ammeter pointer swings to the specified position, the cock of the vacuum gauge and the pressure gauge can be opened, and the outlet valve must be slowly opened, and the water pump starts to have the normal operation. At the same time, the valve of the sealing water pipe should be opened.
The idle running time after the start of the centrifugal pump should not be too long, usually limited to 2 to 4 minutes. If the time is too long, the temperature of the water will rise, which may cause cavitation or other adverse consequences.
Horizontal Centrifugal Pump User Manual
