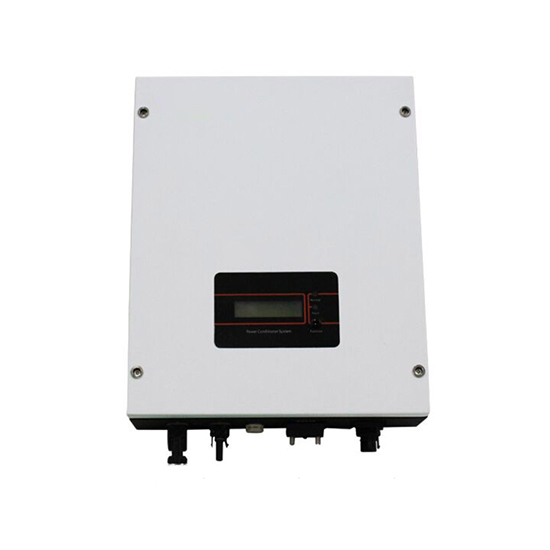

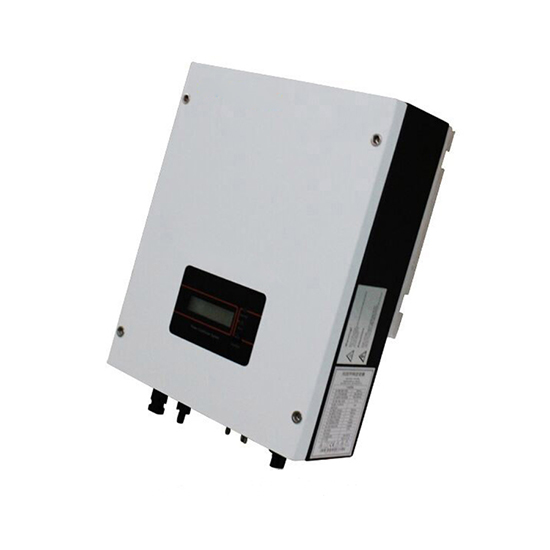

3000W Single Phase Grid Tie Solar Inverter
from
$1,012.19
Ex Tax: $1,012.19
- Stock: In Stock
- Model: HZTOHZ-GTI-TL3000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TL3000
One phase 3000W MPPT grid tie solar inverter for sale, wide DC input voltage range of 180-500 volts, default AC output of 230 volts, and other output voltages can be customized. Single phase grid connected inverter helps optimize the efficiency of the solar power system and ensures safety with built-in protections like anti-islanding, which prevents the inverter from continuing to supply power during a grid outage.
Features:
- LCD is convenient for the user to monitor the main parameters of grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection, completed sealed cover suitable for harsh environments.
- On grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reaches 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology, a wide MPPT voltage range, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

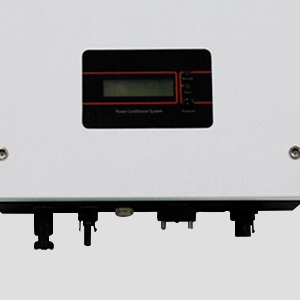

LCD Display
LCD display in a 3kW on grid inverter, it provides real-time data monitoring, is user-friendly, and easy to read, presenting complex information. This transparency helps identify any potential issues and optimize system efficiency. LCD also enhances user interaction and ensures efficient grid tie inverter system management.

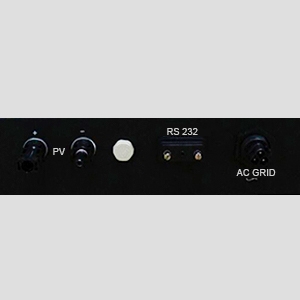

Multiple Port
This diversification optimizes energy capture and storage, by accommodating different energy sources, the grid tie power inverter system can optimize energy harvesting throughout the day, leading to better efficiency and output. With multiple ports, one energy source can act as a backup if another fails, ensuring continuous power supply.

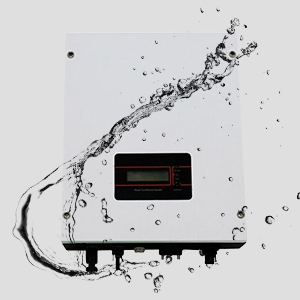

IP65 Protection
It ensures complete protection against dust ingress, preventing any harm to the internal components, making the on grid tie inverter safe for outdoor installation and resilient to rain, humidity, and other moisture sources. This durability can extend the lifespan of the inverter, reducing maintenance costs and ensuring reliable performance.
Applications:
Rural Electrification
Remote Location
Commercial Use

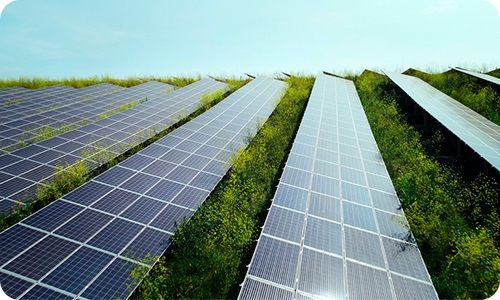

Solar Farm
| MODEL | HZTOHZ-GTI-TL3000 | |||||
| DC INPUT | Max. DC Input Power | 3200 watt | ||||
| Max. DC Input Voltage | 500V DC | |||||
| Max. DC Input Current | 13.5A | |||||
| MPPT Tracking Voltage Range | 180-500V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 100V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 3000W | ||||
| Output Range | Single phase AC 190~270V Adjustable according to different countries and regions' requirements. | |||||
| Rated Voltage | 230V AC (Optional: 110V) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | Single phase (L+N) / spilt phase 2 hotline (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC can be customized for this 3000W inverter. | |||||
| Power Factor | 1 | |||||
| Maximum Current | 13.6A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 97% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | AC connector | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Natural cooling | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | 0W | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | The size of the inverter is different due to different specifications, please contact us to confirm. | ||||
| Weight | Single phase version: 34kg, split phase version: 68kg | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
