1400 Watt Solar Micro Inverter, Grid-tie Inverter
from
$410.92
Ex Tax: $410.92
- Stock: In Stock
- Model: HZTOHZ-WVC-1400-WiFi
- Weight: 1.00
- SKU: HZTOHZ-WVC-1400-WiFi

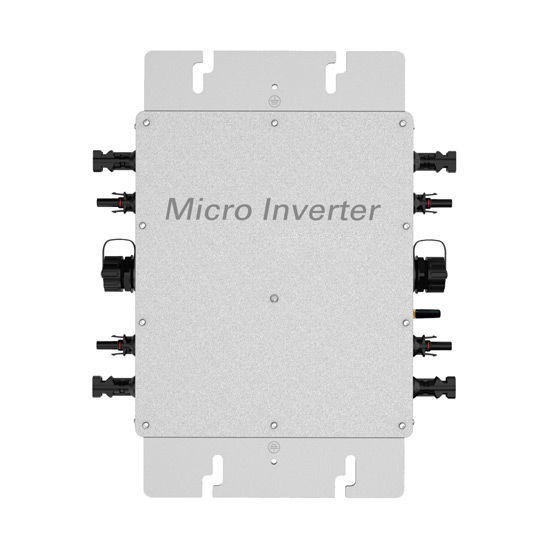

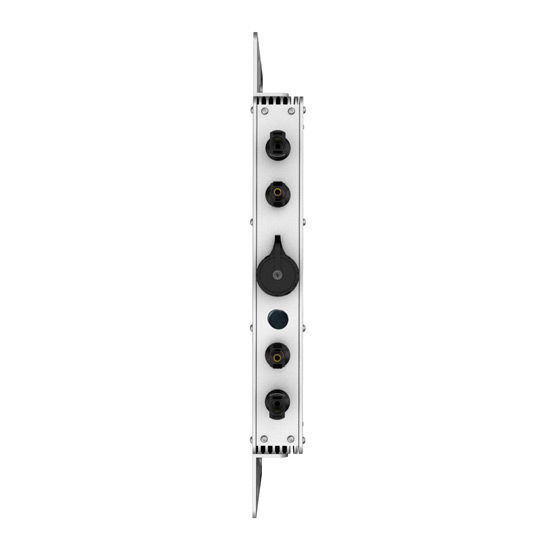

1400W smart micro inverter is an on-grid solar inverter with 433MHz wireless communication, converts 24V/ 48V (22-50V DC) to 80-160V/ 180-280V AC, IP65 waterproof streamline design, built-in high-performance MPPT function, more efficiency. The AC output can be automatically switched to 120V or 230V according to the local grid voltage.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wifi communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

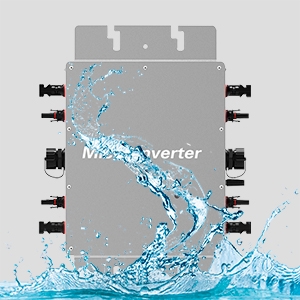

Waterproof Protection
The shell of the micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

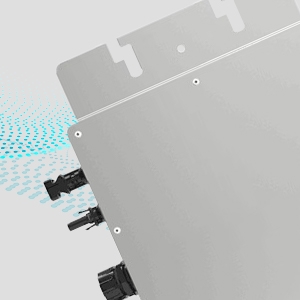

MPPT
MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of the MPPT micro inverter.
Power Chip
The 1400W smart micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

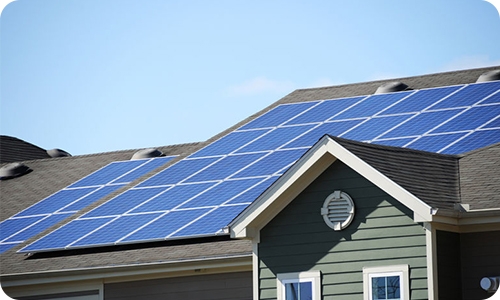

Solar Roof

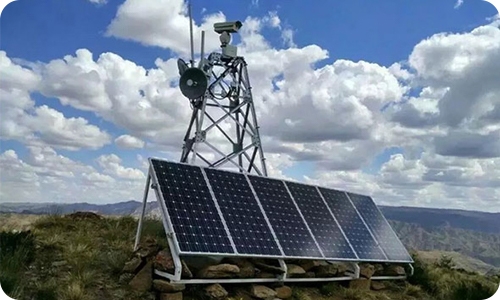

PV Communication Station
Farming Generation System
Small Power Station
Model | HZTOHZ-WVC-1400-WiFi | ||||
| Maximum input power | 1600 Watt | ||||
| Output voltage mode | 120/230V Auto switch; 120V/240V Split phase (L1, L2, G) output option contact us | ||||
| PV open circuit voltage | 30-60VOC | ||||
| Operating voltage range | 22-60V | ||||
| Starting voltage range | 22-60V | ||||
| Short-circuit current | 64A | ||||
| Maximum working current | 53.8A | ||||
| Output Parameters | @120V AC | @230V AC | |||
Output peak power | 1600 watt | 1600 watt | |||
Rated output power | 1400W | 1400W | |||
| Rated output current | 11.6A | 6A | |||
| AC voltage range | 80-160V AC | 180-260V AC | |||
| AC frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | |||
| Power factor | >95% | >95% | |||
| Maximum units per branch circuit | 3PCS (single-phase) | 6PCS (single-phase) | |||
| Output Efficiency | @120V AC | @230V AC | |||
| Static MPPT efficiency | 99.5% | 99.5% | |||
Max output efficiency | 95% | 95% | |||
Loss of power at night | <> | <> | |||
Total current harmonics | <> | <> | |||
Appearance and technical features | |||||
Temperature range | -40℃ to +60℃ | ||||
Size (L×W×H) | 370mm×300mm×41.6mm | ||||
Net amount | 3kg | ||||
Waterproof grade | IP65 | ||||
Heat dissipation mode | Self-cooling | ||||
| Communication mode | WiFi | ||||
| WIFI connection | iOS / Android (Monitor power generation, DC input & AC output display, etc.) | ||||
| 433MHz data collector | Monitor 30 inverters simultaneously | ||||
| Power transmission mode | Reverse transfer, load priority | ||||
| Monitoring system | Mobile APP, computer browser | ||||
| Electromagnetic compatibility | EN50081.part1 EN50082.part1 | ||||
Power grid | EN61000-3-2 Safety EN62109 | ||||
Power grid detection | DIN VDE 1026 | ||||
| Certificate | CEC, CE National patent technology | ||||
| Warranty period | 12 months | ||||
Packing weight | |||||
Weight | 3.74 KG | ||||
Size | 430×375×140mm | ||||
