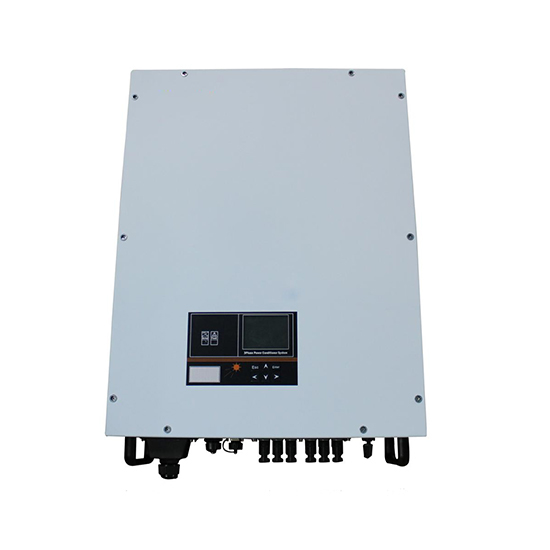

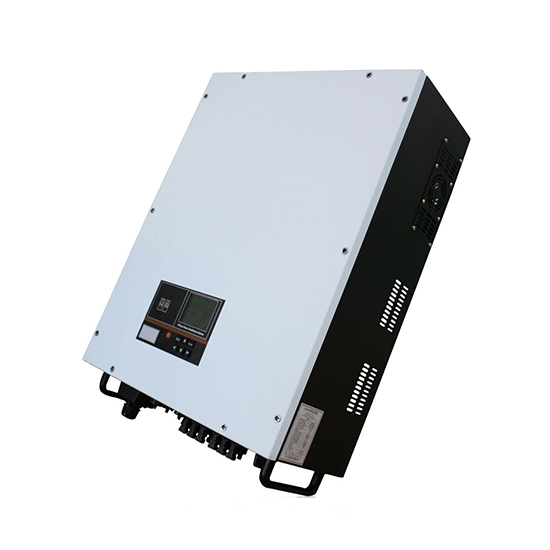

20kW Three Phase Grid Tie Solar Inverter
from
$3,592.62
Ex Tax: $3,592.62
- Stock: In Stock
- Model: HZTOHZ-GTI-TLC20000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TLC20000
Wide range 200-820 volt DC to three phase 208-480 volt AC on grid inverter operates at 50Hz/60Hz low frequency, 20kW rated capacity, transformerless design and high power density, LCD main parameters, with wide MPPT voltage, easy to install, is a perfect solution for grid tied solar power system. As a grid tie inverter, it synchronizes with the grid's voltage and frequency, allowing excess electricity produced by the solar panels to be exported to the grid.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- The on-grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

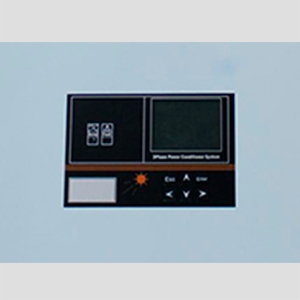

LCD Display
It provides real-time monitoring and feedback on the 20kW grid tie solar inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.

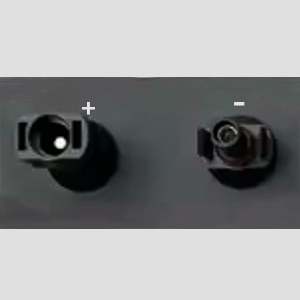

DC Input Connection
It enhances flexibility as DC input allows for easy integration with various renewable energy sources like solar panels or batteries, facilitating hybrid energy systems and improving the overall reliability of the on-grid inverter. DC input configurations enable easier implementation of maximum power point tracking (MPPT) algorithms, optimizing energy harvesting from solar arrays.

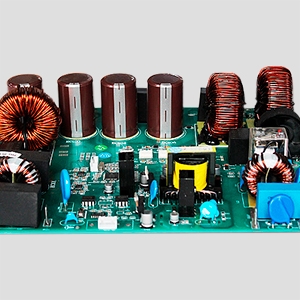

Precise Internal Construction
It improves reliability and longevity by reducing heat generation and stress on components, leading to a more durable system of grid tie power inverter. Precise construction enables better control over voltage and frequency, ensuring stable and synchronized power delivery to the grid, which is crucial for maintaining grid stability and preventing disruptions.
Applications:
Remote Location

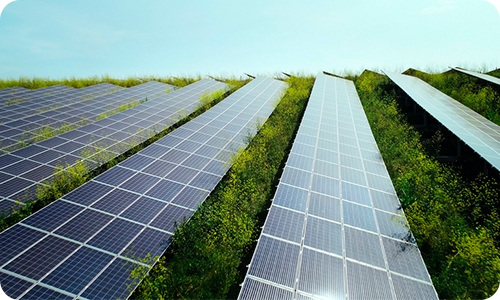

Solar Farm

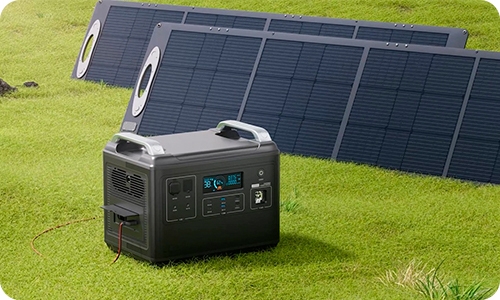

Battery Power

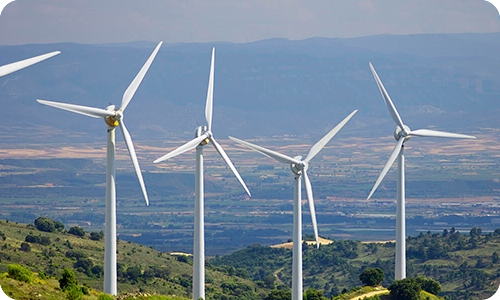

Wind Power
| MODEL | HZTOHZ-GTI-TLC20000 | |||||
| DC INPUT | Max. DC Input Power | 21000 watt | ||||
| Max. DC Input Voltage | 850V DC | |||||
| Max. DC Input Current | 60A | |||||
| MPPT Tracking Voltage Range | 200-820V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 300V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 20kW | ||||
| Output Voltage | Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | 3 phase 4 line (3L+N+PE) | |||||
| Power Factor | 0.9 | |||||
| Maximum Current | 30A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 98.6% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | <> | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | 550*730*270mm | ||||
| Weight | 85kg for 380V, 233kg for other customized voltages | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
