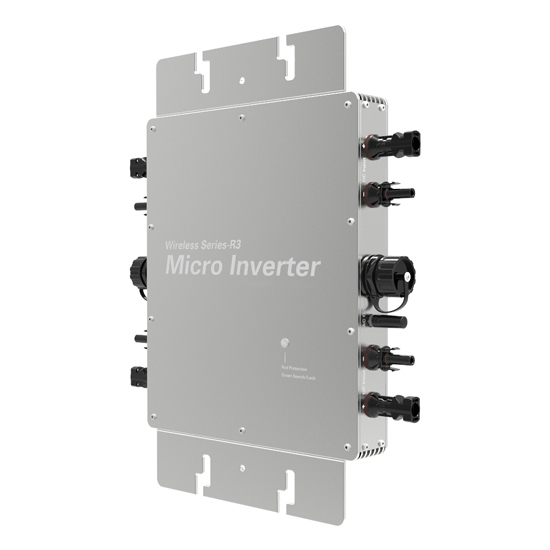

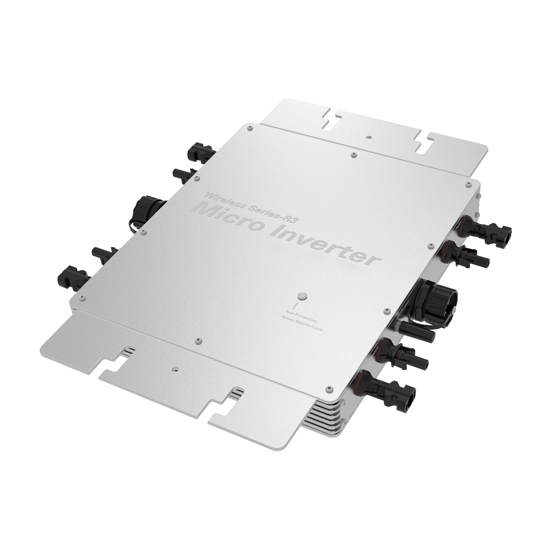

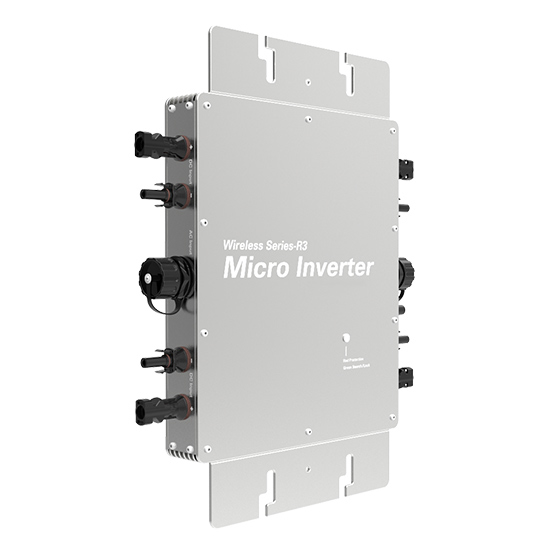

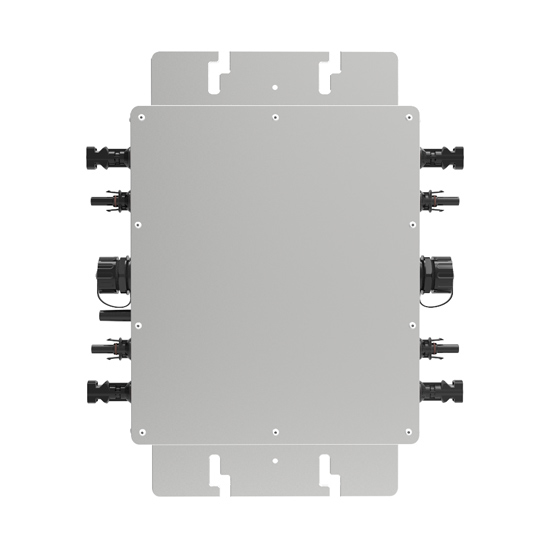

1600 Watt Solar Micro Inverter, Grid-tie Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
1600 Watt Solar Micro Inverter, Grid-tie Inverter
from
$453.77
Ex Tax: $453.77
- Stock: In Stock
- Model: HZTOHZ-WVC-1600
- Weight: 1.00
- SKU: HZTOHZ-WVC-1600
1600W solar inverter is a grid tie inverter with super power capture algorithm, also a specialized electronic device used in solar power systems. The micro on-grid inverter has high-precision phase detection and maximum point tracking (MPTT), 99.5% MPTT efficiency, converts 24V/ 48V (22-50V DC) wide input voltage to 120V/ 230V AC output, has stable performance, and installs simply. Smart micro inverter can be used to power household appliances and other electrical devices.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation and maintenance costs are low
- Use the wifi communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplify maintenance (user serviceable)
Details:

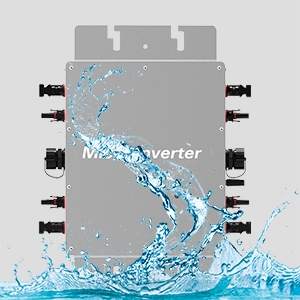

Waterproof Protection
The shell of the micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.
MPPT
MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting overall performance of 1600W micro grid tie inverter.
Power Chip
The solar cell micro inverter is equipped with high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

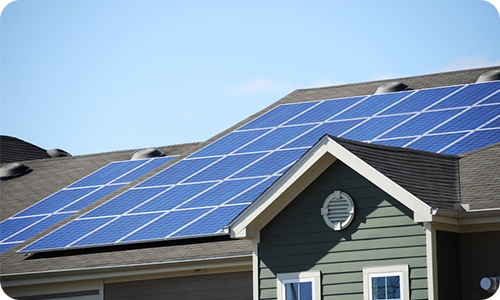

Solar Roof

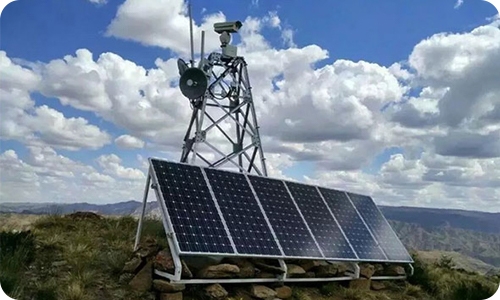

PV Communication Station

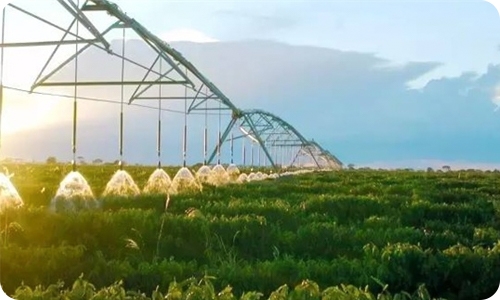

Farming Generation System

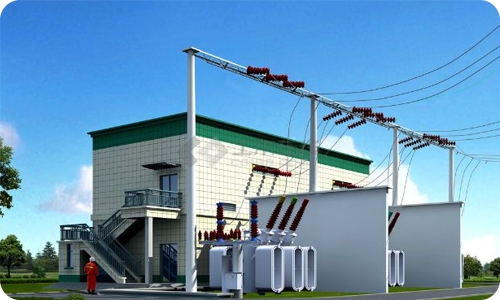

Small Power Station
Model | HZTOHZ-WVC-1600-WiFi | ||||
Maximum input power | 1600 watt | ||||
Output voltage mode | 120/230V Auto switch; 120V/240V Split phase (L1, L2, G) output option contact us | ||||
PV Open circuit voltage | 33-54VOC | ||||
Operating voltage range | 24V/48V DC, range: 22-60V DC | ||||
Starting voltage range | 22-60V DC | ||||
Short-circuit current | 72.7A | ||||
Maximum working current | 61.5A | ||||
| Output Parameters | @120V AC | @230V AC | |||
Output peak power | 1600 watt | 1600 watt | |||
Rated output power | 1550W | 1550W | |||
Output current | 13.3A | 6.95A | |||
AC voltage range | 80-160V AC | 180-260V AC | |||
AC frequency range | 47-52Hz/57-62Hz | 47-52Hz/57-62Hz | |||
Power factor | >94% | >94% | |||
| Number of branch connections | 3PCS (single-phase) | 3PCS (single-phase) | |||
| Output Efficiency | @120V AC | @230V AC | |||
| Static MPPT efficiency | 99.5% | 99.5% | |||
Max output efficiency | 95% | 95% | |||
Loss of power at night | <> | <> | |||
Total current harmonics | <> | <> | |||
Appearance and technical features | |||||
Temperature range | -20℃ to +50℃ | ||||
| Dimensions (WxHxD) | 370x300x41.6mm | ||||
Net amount | 3.0kg | ||||
Waterproof grade | IP65 NEMA3R | ||||
Heat dissipation mode | Self-cooling | ||||
| Communication mode | WiFi | ||||
| WIFI connection | iOS / Android (Monitor power generation, DC input & AC output display, etc.) | ||||
| 433MHz data collector | Monitor 30 inverters simultaneously | ||||
| Power transmission mode | Reverse transmission, Load priority | ||||
| Monitoring system | Mobile phone APP, Browser | ||||
| Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | ||||
Power grid | EN61000-3-2 EN62109.UL STD.1741 | ||||
Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | ||||
| Certificate | CEC, CE, INMETOR, ETL, Patented technology | ||||
| Warranty period | 12 months | ||||
Packing weight | |||||
Weight | 4 KG | ||||
Size | 430x375x140mm | ||||
