Portable Small Solar Power Generator, 50W/100W Solar DC System
from
$613.61
Ex Tax: $613.61
- Stock: In Stock
- Model: HZTOHZ-DL-50
- Weight: 1.00
- SKU: HZTOHZ-DL-50

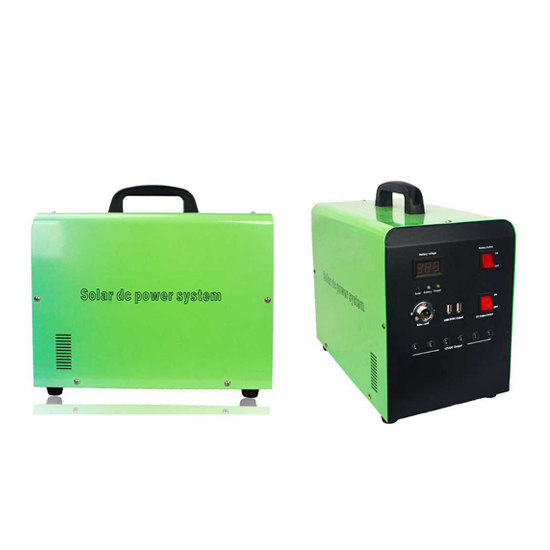

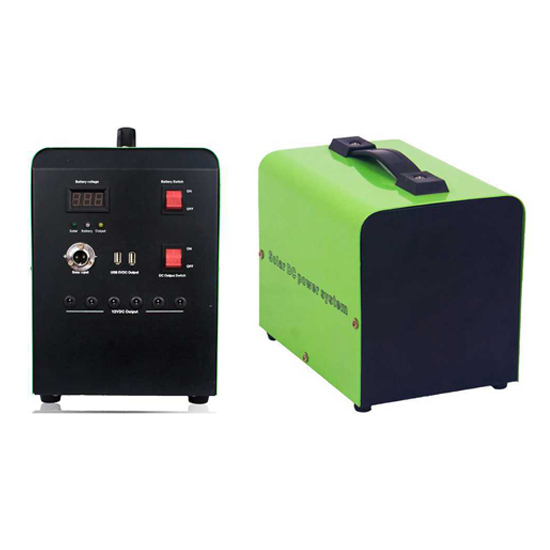

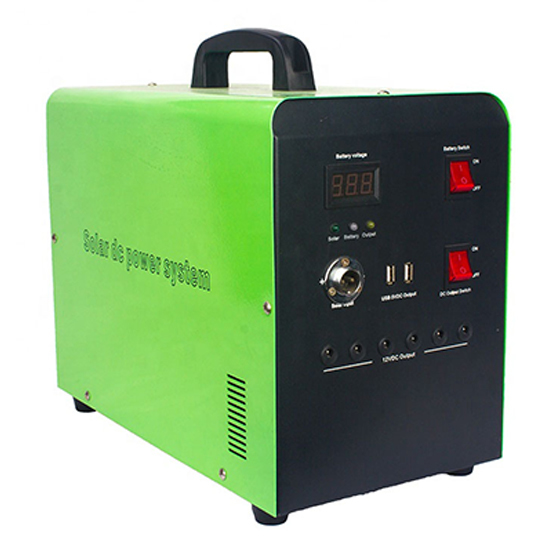

50w / 100w DL small solar generator has a built-in battery and built-in solar controller, SCM intelligent control, 100 watt solar generator with a PWM charge mode, a longer life contributed by automatic control modes, solar-powered generator for RV or home use.
Feature
- SCM intelligent control and optimization SOC algorithm.
- Solar generator built-in temperature sensor which can improve charge efficiency of the built-in battery effectively.
- Energy solar generator with full-automatic control such as overcharge protection, over-discharge protection, electronic circuit short circuit protection, overload protection, and unique reverse connection prevention.
- A serial-connection PWM charge main circuit makes voltage loss of the charge circuit less than that of the charge circuit of a diode by nearly half and the charge efficiency 3% to 6% higher than a non-PWM charge main circuit and increases the time of power consumption.
- Solar power generator has a longer life contributed by automatic control modes including boosting charge for recovery from over discharge, normal direct charge, and floating charge.
- Visualized display of the system status by nixie tube and LEDs.
- User solar power supply. Photovoltaic water pumps solve the deep water without electricity and drinking, and irrigation; Solar water purifiers can solve the problem of drinking water and purifying water quality in areas without electricity.
- Communications field. Solar unattended microwave relay station, optical cable maintenance station, broadcast/communication/paging power supply system, small communicator.
- Home lighting power supply. Such as street lamps, hand lamps, garden lamps, energy-saving lamps, etc.
- Others. Solar car/electric car, ventilator fan; power supply for desalination equipment; satellites, spacecraft, space solar power plants.
Applications
Outdoor Camping
Outdoor Picnics
Travel and Hiking
Electric devices charging
| Model | HZTOHZ-DL-50 | |
| Solar panel | ||
| Type | Monocrystalline silicon or polycrystalline silicon panel of class A | |
| Power | 50W | 100W |
| Dimensions (mm) | 176*279*288 | 213*300*383 |
| Solar controller | ||
| Control mode | Efficient PWM | |
| Charge current | 10A / 12V | |
| Protection functions | Overcharge protection, over-discharge protection, electronic circuit short circuit protection, overload protection | |
| Voltage of overcharge protection | 14.3V | |
| Voltage of boosting protection | 14.0V | |
| Voltage of floating protection | 13.8V | |
| Voltage of overdischarge protection | 10.5V | |
| Display of nixie tube | Current voltage of the battery | |
| Indication of LEDS | Charge indication, load indication, and battery indication | |
| Battery | ||
| Battery type | Deep-cycle maintenance-free lead-acid battery | |
| Battery capacity | 50AH | 100AH |
| DC output | ||
| Maximum output power | 120W (12V / 10A) | |
| 12V DC | 5 output ports | 6 output ports |
| USB (5V DC) | 2 USB output ports (MAX.3A) | |
| Accessories included | ||
| 12V DC LED indicator | Two 3W LEDs and two 5W LEDs (including 4 lamp holders, two 3M lamp wires and two 5W lamp wires) | |
| USB charge line | A universal charge line | |
| Solar panel bracket | A set (including 2 pieces) | |
| Electric wire of the solar panel | 5M | |
| AC charger | An optional accessory when there is no solar power supply and charging by mains supply | |
| Certificate | CE | |
| Warranty | 1 year | |
