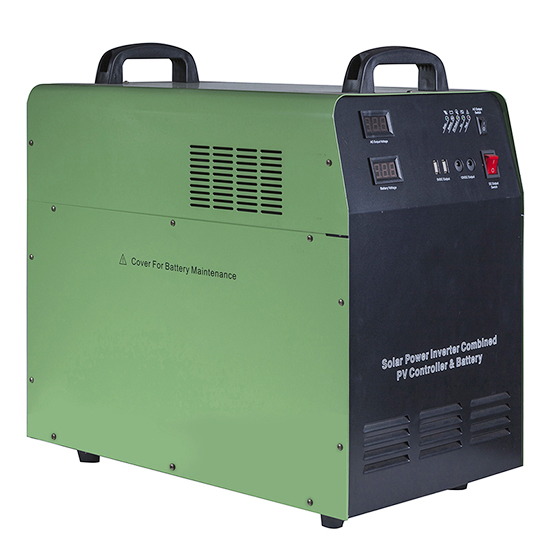

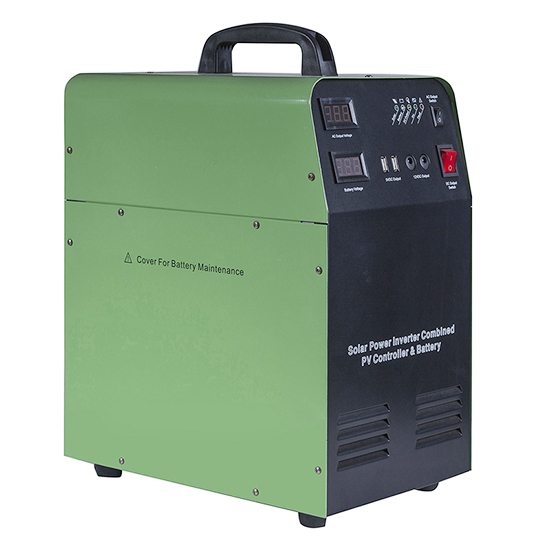

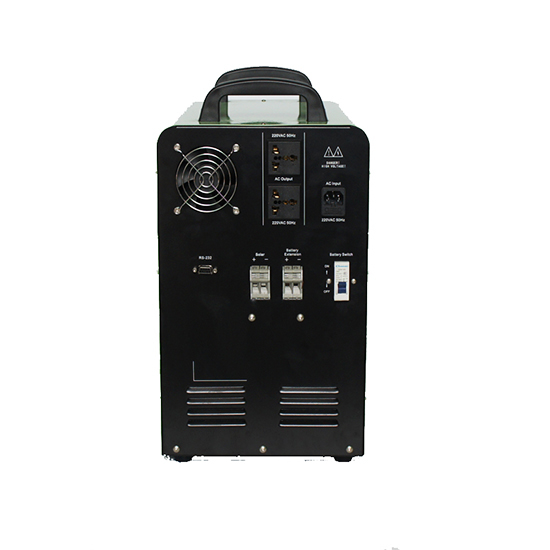

300 Watt Portable Solar Power Generator, Solar DC System
from
$664.00
Ex Tax: $664.00
- Stock: In Stock
- Model: HZTOHZ-AL-300
- Weight: 1.00
- SKU: HZTOHZ-AL-300
300w solar power generator is provided with independent solar three-stage charge management. Overcharge protection and over-discharge protection for a longer battery life and improve the charge efficiency of its battery.
Features
- Excellent performance because of an MCU intelligent control technology
- 300W generator with pure sine wave AC output
- convenient and practical 5V DC-USB output port and 12V DC output port
- Solar array and battery common-anode system input
- Charge by the electricity grid for flexible configuration
- Solar powered generator with overcharge protection and over-discharge protection for a longer battery life

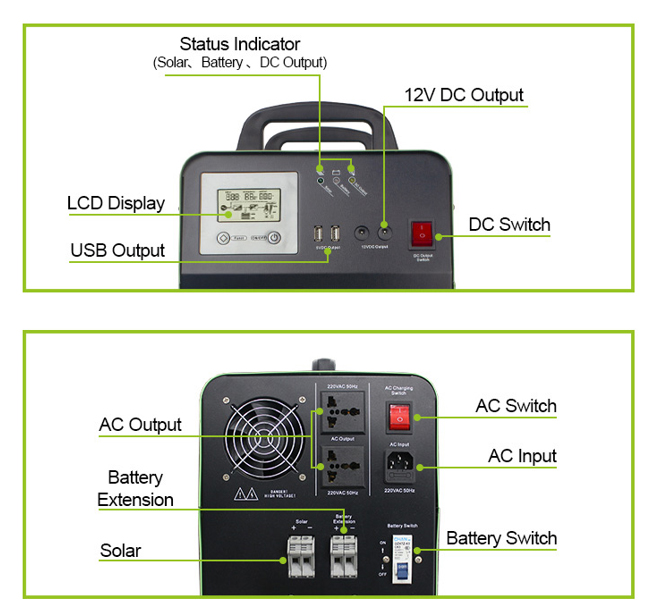

- LCD and LEDs for visualization of the operation status of the equipment
- Energy solar generator with overall automatic protection and alarms including AC output overload protection, short circuit protection
Detail
Applications
Outdoor Camping
Outdoor Picnics
Travel and Hiking
Electric devices charging
| Model | HZTOHZ-AL-300 |
| Inverter | |
| Battery voltage | 12V |
| ln-built battery specification | 1*55AH / 12V |
| Rated power | 300W |
| Output voltage | 110V or 220V AC (Optional) |
| Output frequency | 50 / 60Hz |
| Output waveform | Pure Sine Wave |
| Charge by a mains supply | |
| Input voltage | 110V or 220V AC (Optional) |
| Charge current | 10A (MAX) |
| Solar input | |
| Maximum photovoltaic | ≤ 25V |
| Charge voltage (VDC) | 10~25V |
| Rated charge current (A) | 30A |
| Maximum power (Wp) | 360Wp |
| Voltage of overcharge protection (VDC) | 14.2V |
| Voltage of overcharge recovery (VDC) | 14.0V |
| Voltage of floating charge (VDC) | 13.7V |
| DC output | |
| Voltage of high-voltage protection (VDC) | 16V |
| Voltage of high voltage recovery (VDC) | 15.2V |
| Voltage of low voltage recovery (VDC) | 12.6V |
| Voltage of low voltage protection (VDC) | 11V |
| USB (5V DC) output port | 2 ones / MAX 2A |
| 12V DC output port | 2 DC ports + backboard 12V terminal block (MAX 8A) |
| Starting temperature of the exhaust fan | > 45 ℃ |
| Ambient temperature for operation | 0-40 ℃ |
| Ambient temperature for storage | -25 ℃ ~ +55 ℃ |
| Operation/storage conditions | 0-90% (no condensation) |
| External dimensions: DxWxH (mm) | 343x225×443 |
| Packing dimension: DxWxH (mm) | 420x290x490 |
| Certificate | CE |
| Warranty | 1 year |
