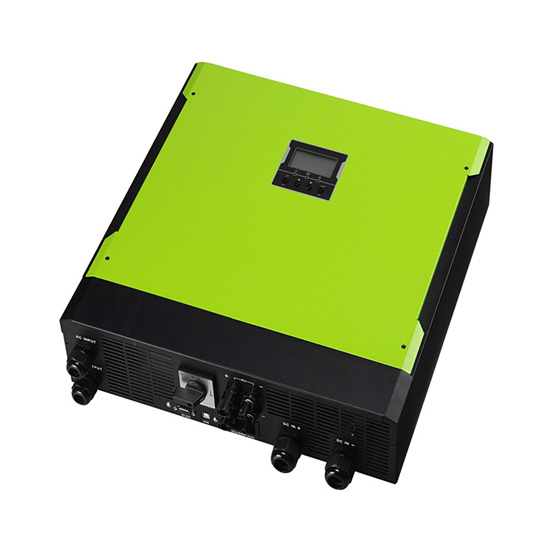

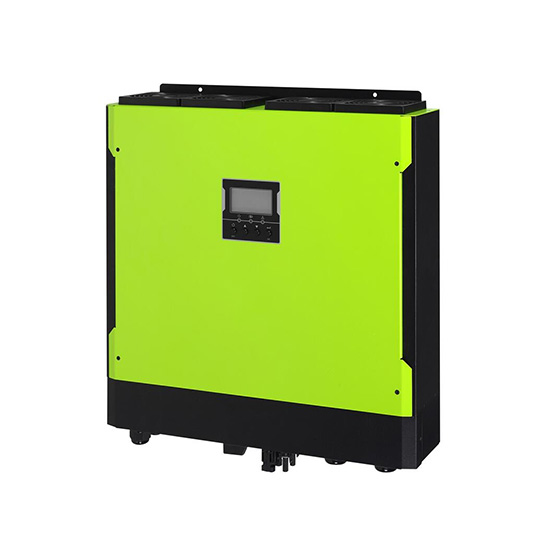

5.5kW Hybrid Solar Inverter
from
$2,294.62
Ex Tax: $2,294.62
- Stock: In Stock
- Model: HZTOHZ-HSI-5.5kW48-230
- Weight: 1.00
- SKU: HZTOHZ-HSI-5.5kW48-230
One phase 5500 watt hybrid inverter for off grid solar system, wide input voltage range and high efficient MPPT up to 93%, perfect electric protection functions. An off-grid hybrid solar inverter plays a crucial role in maximizing the efficiency and reliability of solar energy systems by integrating renewable energy sources with storage capabilities, thus reducing reliance on the traditional electrical grid and increasing energy independence for consumers.
Features:
- Combine power for self-use and grid connection.
- The priority supply sequence of solar, battery power, and city power can be set. It can synchronize with the electrical grid to either export excess power generated by the solar panels or to draw power from the grid when solar production is insufficient.
- The charging current can be adjusted according to a variety of battery types.
- Optional modes. grid-connected mode, off-grid mode, and grid-connected energy storage mode. Grid-connected mode excess solar power is fed back into the grid to offset energy consumption while also enabling battery backup functionality for critical loads during grid outages.
- The built-in timer in the hybrid inverter can set the machine's on/off time.
- The LCD panel of the hybrid solar inverter can display various detailed information.
- Configure multiple communication ports.
Details:

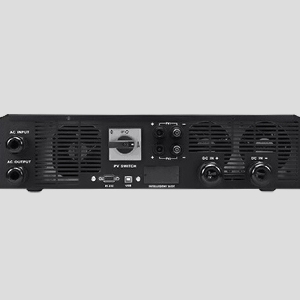

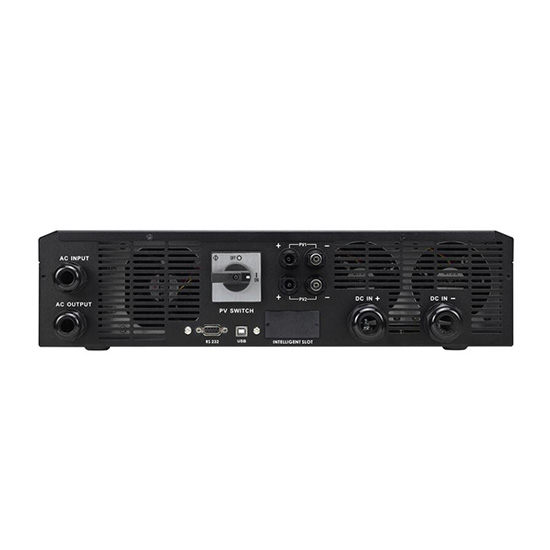

Multiple Communication Ports
Hybrid solar inverters are equipped with multiple communication ports that enhance their functionality and adaptability in renewable energy systems. This facilitates seamless integration and coordination between different components of the system, optimizing overall performance and efficiency.

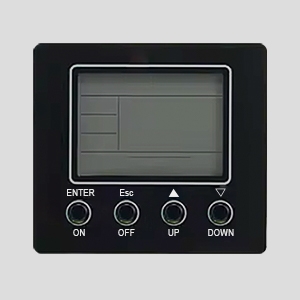

LCD Display
LCD provides clear and concise information about power generation, consumption, and system status of 5.5 kW hybrid inverter, aiding users in monitoring and managing energy usage effectively, empowering users to make informed decisions for better energy management.

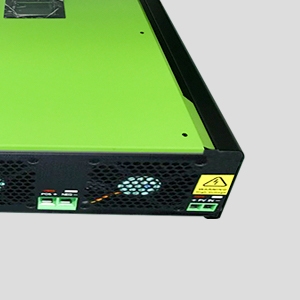

Dust Cover
By preventing accumulation on sensitive components, dust covers enhance the longevity and efficiency of the hybrid inverter, reducing maintenance requirements and potential malfunctions. contribute to maintaining optimal performance levels by minimizing the risk of overheating or electrical issues caused by dust infiltration.
Applications:
Photovoltaic Power Generation
Agriculture Industry
Home Appliance
Street Lighting
| Model | HZTOHZ-HSI-5.5kW48-230 | |
| Rated Power | 5500W | |
| PV INPUT (DC) | Maximum DC Power | 6500W |
| Nominal DC Voltage | DC 360V | |
| Maximum DC Voltage | DC 500V | |
| Working DC Voltage Range | DC 120V-500V | |
| Start-up Voltage / Initial Feeding Voltage | 116V/150V | |
| MPP Voltage Range | DC 120V-DC 450V | |
| Full Load MPP Voltage Range | DC 250V-DC 450V | |
| Maximum Input Current | 2*13A | |
| GRID OUTPUT (AC) | Nominal Output Voltage | AC 230V |
| Output Voltage Range | AC 184V-265V | |
| Output Frequency Range | 47.5-51.5Hz~59.3-60.5Hz | |
| Nominal Output Current | 23.9A/phase | |
| AC INPUT | AC Start-up Voltage | AC 120V-140V |
| Auto Restart Voltage | AC 180V | |
| Acceptable Input Voltage Range | AC 170V-280V | |
| Nominal Frequency | 50Hz / 60Hz | |
| AC Input Power | 5000VA / 5000W | |
| Maximum AC Input Current | 40A | |
| BATTERY MODE OUTPUT (AC) | Nominal Output Voltage | AC 230V |
| Output Frequency Range | 50 Hz / 60 Hz (auto sensing) | |
| Output Waveform | Pure sine wave | |
| Output Power | 5500VA/5500W | |
| Efficiency (DC to AC) | 93% | |
| BATTERY & CHARGER (Lead-acid/Li-ion) | DC Voltage Range | DC 40V–63V |
| Nominal DC Voltage | DC 48V | |
| Maximum Battery Discharging Current | 150A | |
| Maximum Charging Current | 60A | |
| GENERAL PHYSICAL | Dimension, D*W*H (mm) | 110*450*445 |
| Net Weight (kgs) | 16 | |
| INTERACE | Communication Port | RS-232/USB |
| Intelligent Slot | Optional SNMP, Modbus, AS-400 | |
| ENVIRONMENT | Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10 to 40°C | |
