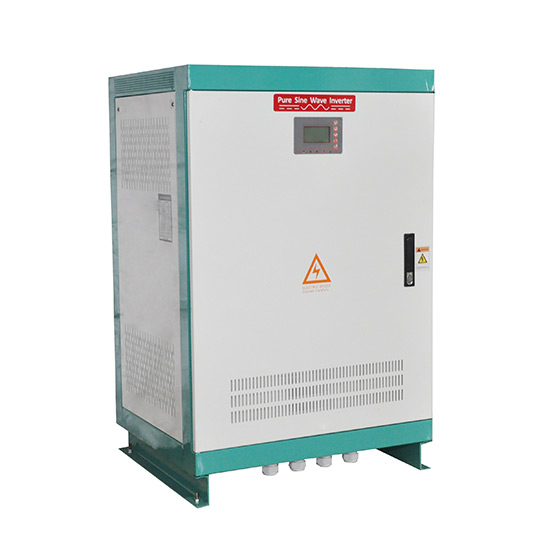

30kW Pure Sine Wave Off Grid Solar Inverter
Free Shipping
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
30kW Pure Sine Wave Off Grid Solar Inverter
from
$12,590.77
Ex Tax: $12,590.77
- Stock: In Stock
- Model: HZTOHZ-OGI-30kW
- Weight: 1.00
- SKU: HZTOHZ-OGI-30kW
30kW 3 phase off grid inverter with MPPT function, high efficient IPM intelligent module, strong load capacity, two kinds of start mode: Step-down voltage start and variable frequency start. Low frequency pure sine wave inverter without battery for solar power system, converts 240V DC to 480V AC. This pv inverter off grid offers flexibility and reliability for those looking to establish a renewable energy system that is independent from the main power grid.
Features:
- Two kinds of start modes: Step-down voltage start and variable frequency start. Customers can set start mode according to the type of their load.
- The output voltage can be set between -40 % to +20 % of the rated voltage. And the output voltage with an accuracy ±1%.
- Pure sine wave output. With a good dynamic response of less than 50MS, the waveform distortion rate is smaller, with higher conversion efficiency and stable output voltage.
- Adopts a black pure aluminum radiator, which confirms the best radiating performance.
- Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, power consumption (kWH), time and date, temperature, and fault code display.
- Wide input voltage can work without battery and solar charge controller, save more cost, and with MPPT wide voltage input function, maximum use of solar power.
Details:

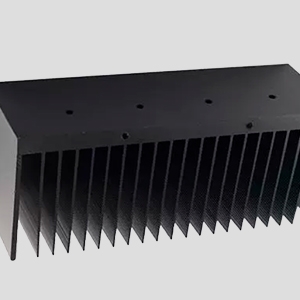

Black Oxide Heat Sink
Used thickened aluminum heat sink improve radiation rate cooling surface is stable and not easy to oxidize, black coating does not interfere with electrical conductivity. This results in better cooling and a longer lifespan for the 30kW off grid inverter. The black finish can improve the overall appearance of the inverter and make it blend more seamlessly with other components.

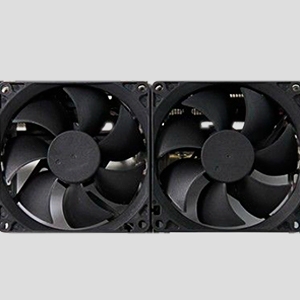

Powerful Cooling System
A powerful cooling system enhances the safety, durability. It helps maintain optimal operating temperatures, ensuring the grid off inverter runs efficiently and effectively. This cooling system prevents overheating, which can lead to equipment damage and failure. Additionally, a well-cooled inverter can handle higher loads without risking performance degradation.

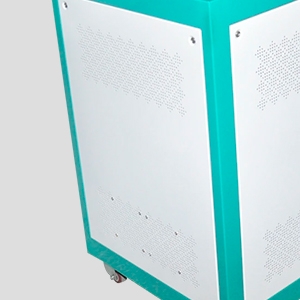

Anti-dust Protection
Reasonable cabinet design with dust-proof net to reduce dust, prevent accidental touch and improve safety performance. Anti-dust features enhance the reliability of the power inverter, minimizing downtime and maintenance needs. This protection maintains efficiency by keeping internal components clean and functioning optimally, ensuring stable power conversion.
Applications:

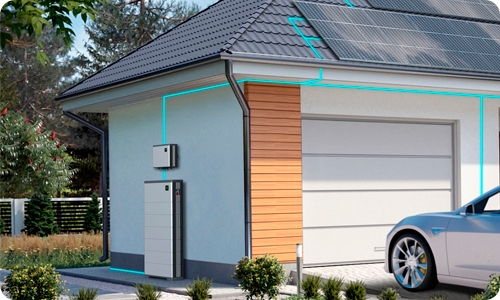

Home Use
Remote Location

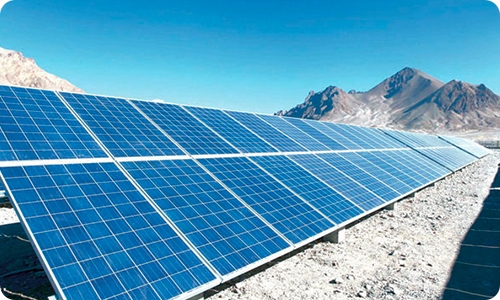

Off Grid Solar System

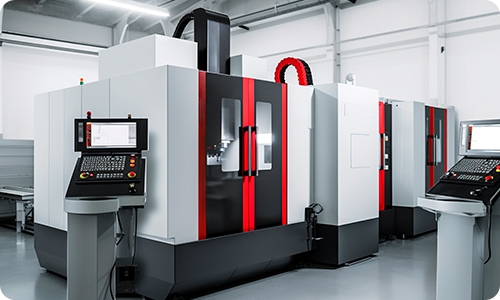

CNC Machine
| Model | HZTOHZ-OGI-30kW | |||||||
| Size (D*W*H) | 600*700*1080mm | |||||||
| Weight | 280kg | |||||||
| Certificate | CE, UL, SA, SAA, VDE | |||||||
| Warranty period | 12 months | |||||||
| AC Input | Rated voltage | AC input voltage is the same value as the AC output | ||||||
| DC Input | Rated voltage | 240V/ 288V/ 300V/ 480V DC (can be customized) | ||||||
| Rated current | 125A @240V DC | |||||||
| AC Output | Rated output power | 30kW | ||||||
| Output waveform | Pure sine wave | |||||||
| Rated voltage | 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 460V/ 480V (optional) | |||||||
| Phase | 3 phase 4 wire+PE wire (single phase/ split phase can be customized, please contact us by email) | |||||||
| Rated phase current | 45A @380V AC | |||||||
| Frequency | 50Hz or 60Hz | |||||||
| Power factor | >0.99 | |||||||
| Overload ability | 150%, 5 seconds | |||||||
| Efficiency | >93% | |||||||
| Waveform distortion rate | THD<> | |||||||
| Dynamic response (0 to 100% load) | 5%, ≤50ms | |||||||
| Display | LCD | |||||||
| Running mode | Working continuously | |||||||
| Electrical insulation properties | 2000Vac, 1min | |||||||
| Communication interface | RS485 (optional), can remote control the start/stop of the inverter and convey the data as below: 1. Input DC current 2. Input DC voltage 3. Output AC current 4. Output AC voltage 5. Power consumption (kWH) 6. Some fault information | |||||||
| Battery charging function | Can be customized, please contact us | |||||||
| Protection Function | Protection | Input reverse polarity, under voltage, over-voltage, output over-current, short circuit, overheating | ||||||
| Cooling method | Fan-cooled | |||||||
| Short-circuit protection | No automatic recovery, need to restart the machine | |||||||
| Working Environment | Noise (1 meter） | ≤50dB | ||||||
| Degree of protection | IP20 (indoor) | |||||||
| Working altitude | ≤2000m | |||||||
| Working temperature | -25~+55℃ | |||||||
| Relative humidity | 0~90%, non-condensing | |||||||
| Note | The above parameters are for reference only, and can be customized according to the customer's requirement! | |||||||
