30 Hp Horizontal Centrifugal Pump
from
$5,273.54
Ex Tax: $5,273.54
- Stock: In Stock
- Model: HZTOHZ-HCP-022KW
- Weight: 1.00
- SKU: HZTOHZ-HCP-022KW

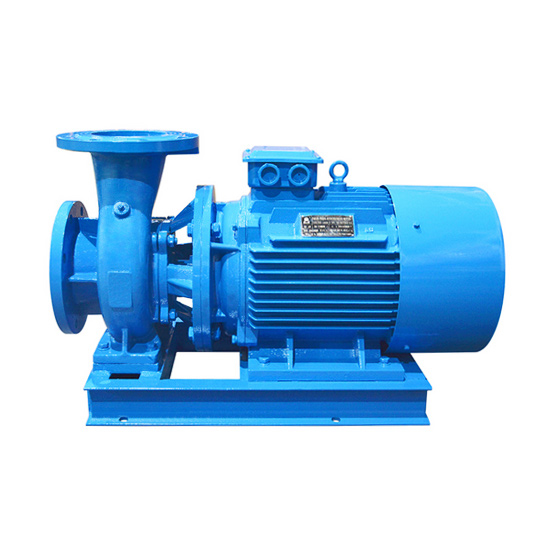

30 hp horizontal centrifugal pump with 31m3/h maximum flow, 115m maximum head, and 65mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-65-315A | ||
| Weight | 300kg | ||
| Size | 570*865*360mm | ||
| Power | 30 hp (22kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 16.6m3/h (73 gpm, American system) | 23.7m3/h (104 gpm, American system) | 31m3/h (136 gpm, American system) |
| Head (max. head to min. head) | 115m (377ft) | 113m (371ft) | 110m (361ft) |
| Efficiency | 32% | 40% | 44% |
| Inlet diameter | 65mm (2-1/2 inch) | ||
| Outlet diameter | 65mm (2-1/2 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 315mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.5m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

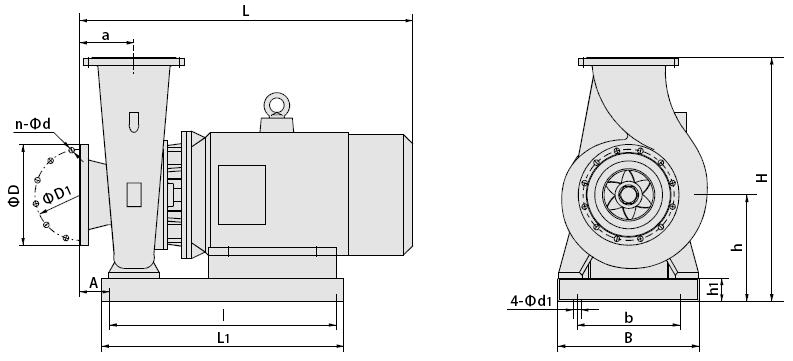

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 300 | 570 | 865 | 125 | 85 | 620 | 360 | 570 | 260 | 100 | 4-Φ18 | Φ185 | Φ145 | 4-Φ18 |
Tips: What are the main reasons for the mechanical seal of centrifugal pump leakage?
- The sealing end face between the moving ring and the stationary ring has the phenomena of too serious wearing, improper loading coefficient in design, thus causing the seal end face to have a crack, deformation, damage or the like.
- Several auxiliary seals have defects themselves or defects due to improper assembly, and the selected auxiliary seals are not suitable for the working medium.
- The spring preload is insufficient, or the spring has a fracture, corrosion, relaxation, coking or other problems, or suspended particles or crystals of the working medium accumulate in the spring gap after a long-period operation, causing spring fault and the compensation sealing ring is unable to float, to have leakage.
- Because the vertical deviation between the end face of the moving and static ring seal and the center line of the shaft is too large, the sealing end face is not tightly bonded, thus causing leakage.
- Due to a large amount of axial yaw of the shaft, the fittings or the quality of the fittings associated with the seal are not good, it is easy to cause leakage.
