2 Hp Vertical Centrifugal Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VCP-1500W
- Weight: 1.00
- SKU: HZTOHZ-VCP-1500W

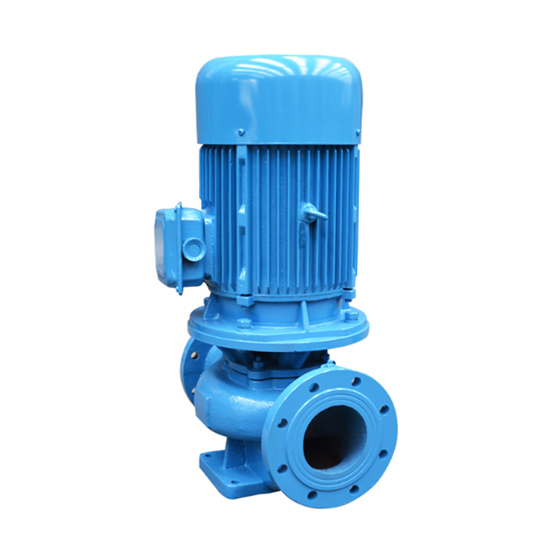

2 hp vertical centrifugal pump with 5.2m3/h maximum flow, 33m maximum head, and 25mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-25-160 | ||
| Weight | 70kg | ||
| Size | 300*270*440mm | ||
| Power | 2 hp (1.5kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 2.8m3/h (12.3 gpm, American system) | 4.0m3/h (17.6 gpm, American system) | 5.2m3/h (22.9 gpm, American system) |
| Head (max. head to min. head) | 33m (108ft) | 32m (105ft) | 30m (98ft) |
| Efficiency | 24% | 32% | 33% |
| Inlet diameter | 25mm (1 inch) | ||
| Outlet diameter | 25mm (1 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 160mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

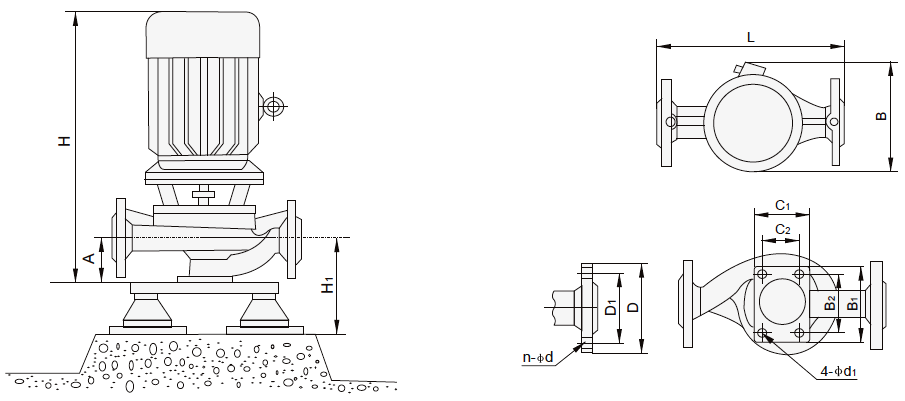

Vertical centrifugal pump dimension (unit: mm):
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 300 | 270 | 440 | 90*130 | 70 | 60*100 | 4-Φ14 | Φ115 | Φ85 | 4-Φ14 |
Tips: Selection of the centrifugal pump power
The power of a centrifugal pump is often related to its head and flow. In general, the higher the centrifugal pump power, the higher the head and flow. Therefore, in choosing the power of the centrifugal pump, it is firstly required to carefully understand the head, flow, or pressure of the using position, instead of choosing the power as you like or choosing the power the higher the better. Otherwise, it is difficult to achieve the effect of the centrifugal pump, or it will cause water leakage caused by the high pipe pressurizing.
Generally speaking, the power of the centrifugal pump is a direct reflection of the head and flow. However, when it comes to the high-efficiency motor, the power is no longer the basis for judging the head and flow. The unit efficiency of high-efficiency motors is not the same. When it comes to a high-efficiency motor, you may encounter a low-power, high-head centrifugal pump. In addition, the power consumption of the pump does not depend on the power of the pump motor but the shaft power of the pump. If both the pumps are equipped with a motor of 30kw (40 hp), the one with the shaft power of 20.56kw is significantly more energy-efficient than the one with the shaft power of 25.18kw. The key to shaft power is the efficiency of the pump. Therefore, as to the centrifugal pump with the same head, the centrifugal pump with lower power and higher efficiency saves more energy and cost.
In a word, to measure the performance of the centrifugal pump, the power is not the most important, instead, it is the unit efficiency. In the case of the same head and the same flow rate, the higher the efficiency of the centrifugal pump with lower power, the better the performance. Therefore, several parameters should be considered comprehensively in selecting the centrifugal pump.
