25 Hp Vertical Centrifugal Pump
from
$3,657.23
Ex Tax: $3,657.23
- Stock: In Stock
- Model: HZTOHZ-VCP-18d5KW
- Weight: 1.00
- SKU: HZTOHZ-VCP-18d5KW

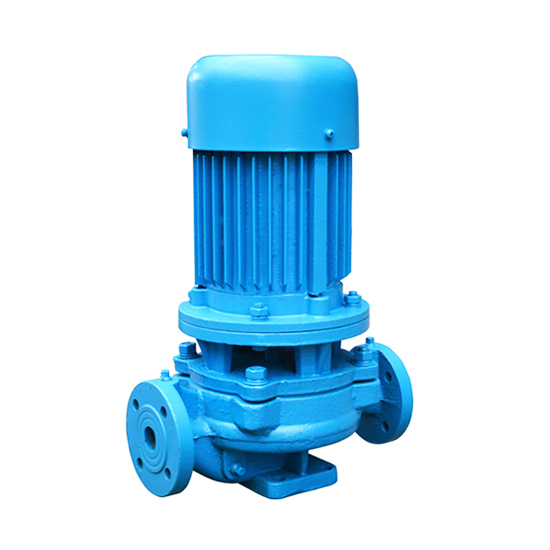

25 hp vertical centrifugal pump with 61m3/h maximum flow, 73m maximum head, and 80mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-80-250A | ||
| Weight | 208kg | ||
| Size | 480*430*820mm | ||
| Power | 25 hp (18.5 kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 32.5m3/h (143 gpm, American system) | 46.7m3/h (206 gpm, American system) | 61m3/h (269 gpm, American system) |
| Head (max. head to min. head) | 73m (240ft) | 70m (230ft) | 63m (207ft) |
| Efficiency | 52% | 59% | 60% |
| Inlet diameter | 80mm (3 inch) | ||
| Outlet diameter | 80mm (3 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 250mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 3.0m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||
Vertical centrifugal pump dimension (unit: mm):
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 480 | 430 | 820 | 160*220 | 130 | 110*170 | 4-Φ18 | Φ200 | Φ160 | 8-Φ18 |
Tips: Fault treatment of the centrifugal pump - Unable to pump water
It means the centrifugal pump has the following faults: being unable to pump water, having difficulty in start-up, or the flow is reduced.
Reasons for not being able to pump water:
- Insufficient injection of liquid before pumping.
- Air or air leakage in the pump or suction tube.
- The suction height exceeds the allowable range of the pump.
- The pipeline resistance is too high.
- There is debris in the pump or pipeline.
- The motor is overloaded.
Reasons for difficult start-up:
- Incorrect installation, friction, stuck or bearing burned and locked.
- The outlet valve is fully open in start-up, the resistance inside the outlet pipe is too small, and the pump load is too heavy.
- The suction pipe is not smooth, and the axial force is too large.
- The stuffing is too tight or the mechanical seal assembly is skewed, the compression is too large, or the like.
- The power supply has problems.
- Water leakage and heat generation in the gland packing area.
- The bearing is overheated.
- Vibration, noise.
Man-made faults:
- Lack of lubricating oil or selected lubricating oil does not meet the requirements.
- Wrong technological process (operation error).
- The pump rotation direction is wrong.
- Improper or late maintenance.
