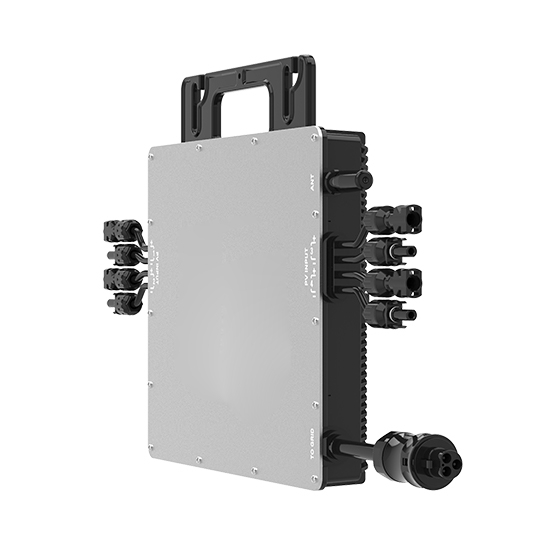

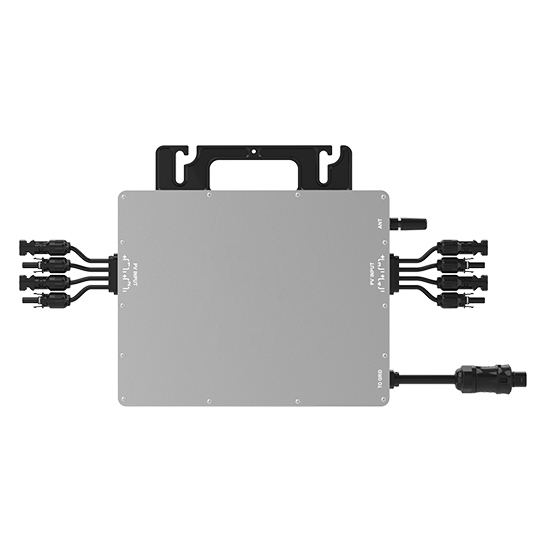

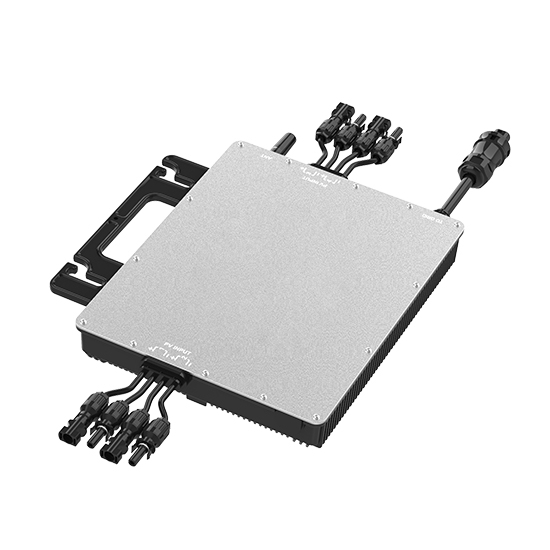

2000 Watt Solar Micro Inverter, Grid-tie Inverter
from
$591.71
Ex Tax: $591.71
- Stock: In Stock
- Model: HZTOHZ-GTMI-2000-WiFi
- Weight: 1.00
- SKU: HZTOHZ-GTMI-2000-WiFi

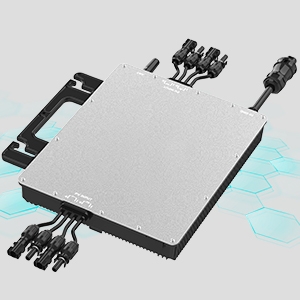

Reasonable price micro inverter 2000W is a grid connected solar inverter with IP67 waterproof streamline design, convert 24 V / 48 V (22-60 V DC) to 80-160 V / 180-260 V AC, the AC output can be chosen 120 V or 230 V according to the local grid voltage, built-in high-performance MPPT function for higher efficiency.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wifi communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

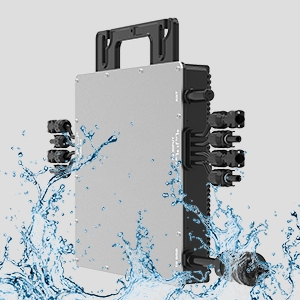

Waterproof Protection
The shell of the photovoltaic micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.
MPPT
MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of the 2200W pv micro inverter.
Power Chip
The AC micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

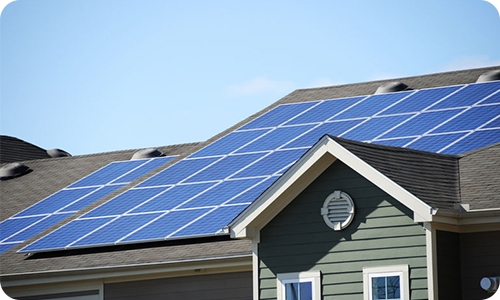

Solar Roof

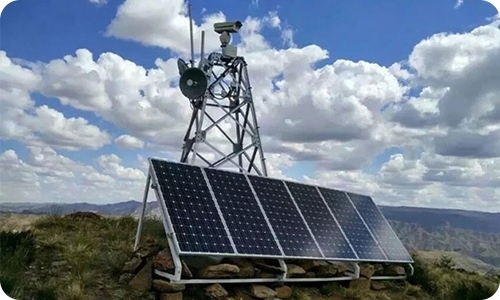

PV Communication Station

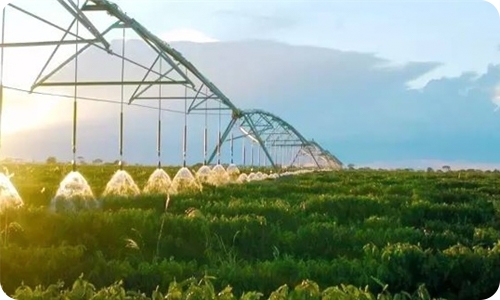

Farming Generation System

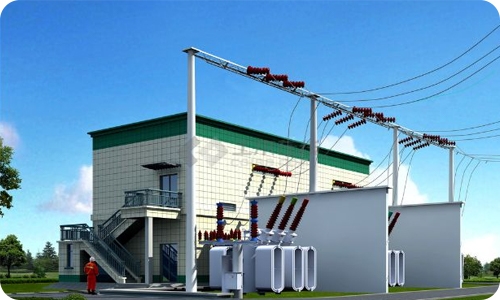

Small Power Station
| DC Input | Model | HZTOHZ-GIMI-2000-WIFI |
| Max Solar Panel lnput Power | 4*625W | |
| MPPT Voltage Range (solar panel open circuit voltage range) | 33-54V | |
| Starting Voltage | ＞22V d.c. | |
| Working Voltage Range | 22-60V d.c. | |
| Maximum Input Current | 4×20A | |
| Maximum Input Short Circuit Current | 4×23A | |
| Maximum Feedback Current Of The Array | 0 | |
| AC Output | Maximum Output Power | 2000W |
| Rated Output Current | @120V 16.6A/@230V 8.7A | |
| Nominal Output Voltage Range | @120V a.c. (80-160V AC)/@230V a.c. (180-260V AC) | |
| Nominal Frequency Range | 50Hz/60Hz | |
| Power Factor | >0.99 default 0.95 leading...0.95lagging | |
| Harmonic Distortion Of Output Current | ＜5% | |
| Maximum Number Of Connections Per Branch | @120V 2 units/@230V 4 units | |
| Efficiency | Peak Microinverter Efficiency | 92.70% |
| CEC Weighted Efficiency | 92.50% | |
| Nominal MPPT Efficiency | 99.80% | |
| Night Time Power Consumption (mW) | 0 | |
| Mechanical Data | Ambient Temperature Range | -20~+50℃ |
| Storage Temperature Range | -20~+50℃ | |
| Dimensions (LxWxH) | 308×297×42mm | |
| Weight | 6.34kg | |
| Waterproof Level | Outdoor Nema 3r (IP67) | |
| Cooling Method | Natural cooling (no fan) | |
| Degree of Pollution | PD3 | |
| Feature | Power Delivery Mode | Reverse transmission, load priority |
| Communication Method | WiFi | |
| Rated Transmit Power | 802.11b:+17dBm ± 1.5dBm (@11Mbps) 802.11g:+15dBm± 1.5dBm(@54Mbps) 802.11n:+14dBm± 1.5dBm (@HT20, MCS7) | |
| Sureillance System | Smart Life | |
| Warranty | 10 years | |
| Electrical Standard | EN 55011:2016+A2:2021;BS EN 55011:2016+A2:2021 CISPR 11:2015/AMD2:2019; EN IEC61000-3-2:2019+A1:2021; EN IEC 62311:2020 BS EN IEC 61000-3-2:2019+A1:2021; EN301 489-1 V2.2.3 (2019-11);IEEE 1547A:2014 EN 301 489-17 V3.2.4 (2020-09); EN 300 328 V2.2.2 (2019-07); DIN VDE V 0126-1-1 (VDE V 0126-1-1):2013-08; VDE-AR-N 4105 (VDE-AR-N 4105):2011-08; DIN VDE V 0124-100 (VDE V 0124-100):2012-07; IEC 62109-1:2010; IEC 62109-2:2011 DIN VDE 0126-1-1 (VDE V 0126-1-1):2013-08 VFR 2019 UL 1741:2010 Ed.2+R:16Sep2020 CSA C22.2#107.1:2016 Ed.4 ABNT NBR 16149:2013;ABNT NBR 16150:2013 ABNT NBR IEC 62116:2012 ANEXO III - parte 2, Portaria n,° 357, de 01 de agosto de 2014 | |
| Bluetooth | 2402-2480MHz Bluetooth EIRP Power (Max.) 7.89dBm | |
| Wifi 2.4G | 2412-2472MHz Wifi 2.4G EIRP Power (Max.) 18.08dBm | |
| Package | G.W | 7.9kg (single) |
| Size | 490*350*95mm |
