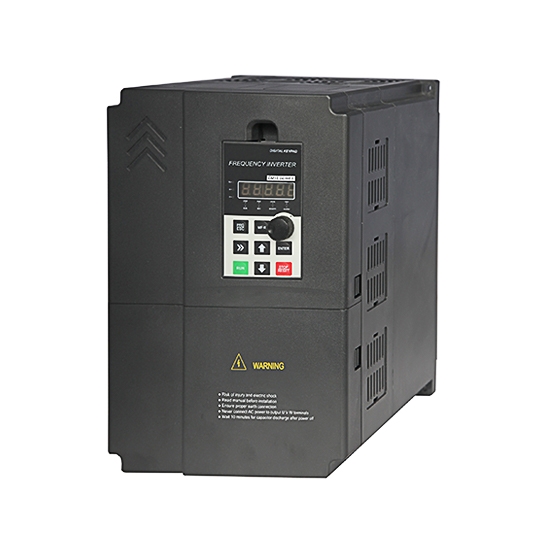

30 KW Three Phase Solar Pump Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
30 KW Three Phase Solar Pump Inverter
from
$1,155.31
Ex Tax: $1,155.31
- Stock: In Stock
- Model: GK330-SP3-030
- Weight: 1.00
- SKU: GK330-SP3-030
Three-phase DC/AC 30 kW solar pump inverter, compatible with solar panels and asynchronous motors, advanced MPPT technology applied to the irrigation system. Performs normally under vibration acceleration up to 5.9m/s² (0.6g). No condensation when the RH(Relative Humidity) is less than 95%. Reasonable layout and easy operation, the digital display screen is intuitive and clear.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
Good-quality 30 kW solar water pump inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reducing the heat generated during inverter use, with intelligent start-stop control. An independent air duct design establishes a completely sealed environment, preventing dust and moisture from reaching the circuit board area.

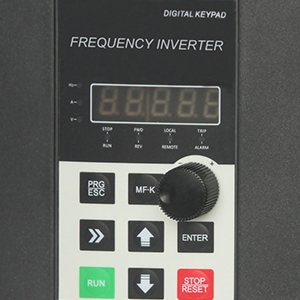

Digital Keypad
The digital keypad of the 30 kW PV pump inverter is clear and easy to use, directly controlling the start, stop, and acceleration functions. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency and convenience of the solar pump system's operation.

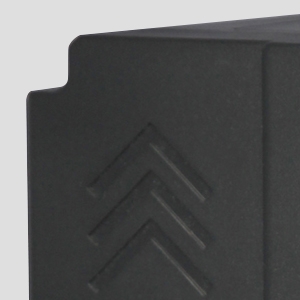

Rugged Casing
The top-performing and advanced 30kW solar variable frequency drive for pumps is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, corrosion-resistant facts, effective insulation against moisture and dust, stable operation, reliability, and safety. It not only protects the circuit and electronic parts inside the equipment but also ensures the PV pump inverter's safety, stability, and reliability, capably extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 030 | Adaptable motor power: 030 (30 KW) |
| Model | SP3-030 |
| Rated power | 30kW |
| Voltage input | DC 350~750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 280V |
| Max. DC voltage | 750V |
| Recommended DC MPPT range | 350~750(V) |
| AC output current | 60A at 3-phase 380V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
