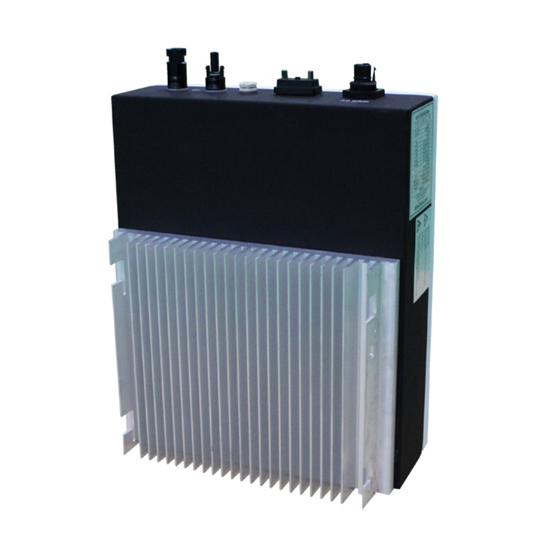

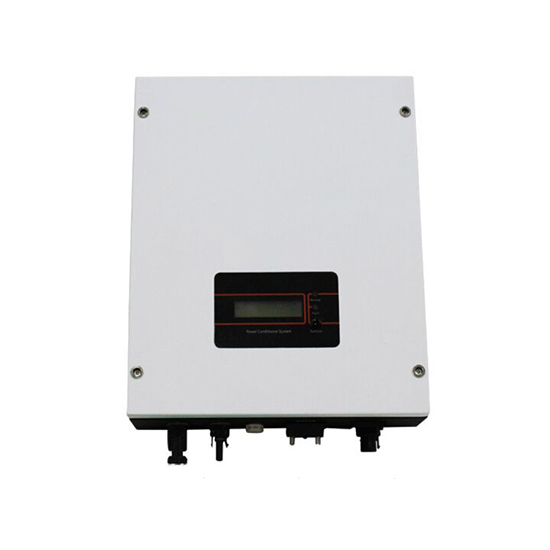

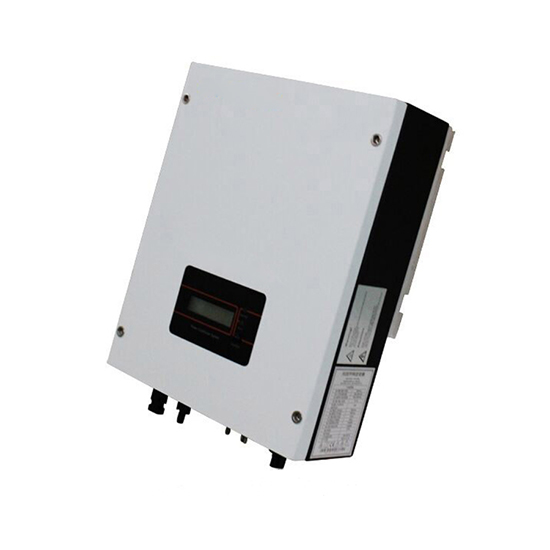

5000W Single Phase Grid Tie Solar Inverter
from
$1,560.15
Ex Tax: $1,560.15
- Stock: In Stock
- Model: HZTOHZ-GTI-TL5000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TL5000
A 5000W single-phase grid tie solar inverter is a device that converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity. Buy 5000W high power solar on grid inverter with low cost, max power up to 5400W, converting DC 180-500 volt to AC 230 volt or 110 volt, higher efficiency, and more stable performance. Grid tie inverter also has safety features like anti-islanding, which shuts down the inverter.
Features:
- LCD is convenient for the user to monitor the main parameters of grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection, completed sealed cover suitable for harsh environments.
- On grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reaches 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology, a wide MPPT voltage range, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

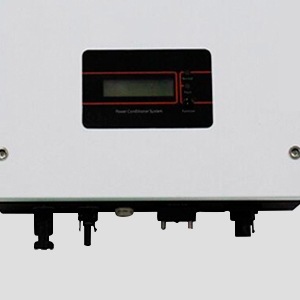

LCD Display
LCD display in a 5kW grid tie inverter provides real-time data monitoring, is user-friendly, and is easy to read, presenting complex information. This transparency helps identify any potential issues and optimize system efficiency. LCD also enhances user interaction and ensures efficient grid tie inverter system management.

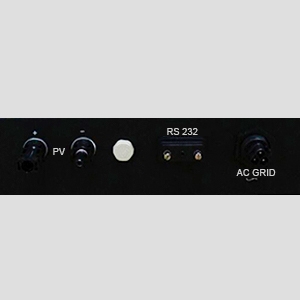

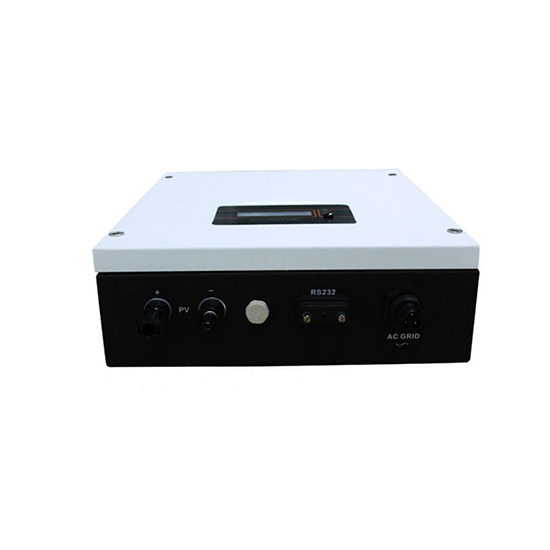

Multiple Port
This diversification optimizes energy capture and storage, by accommodating different energy sources, the grid-tie solar inverter system can optimize energy harvesting throughout the day, leading to better efficiency and output. With multiple ports, one energy source can act as a backup if another fails, ensuring continuous power supply.

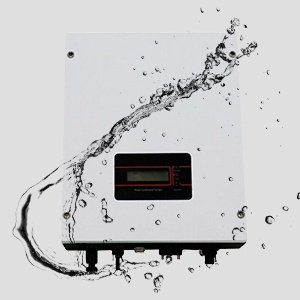

IP65 Protection
It ensures complete protection against dust ingress, preventing any harm to the internal components, making the PV grid-connected inverter safe for outdoor installation and resilient to rain, humidity, and other moisture sources. This durability can extend the lifespan of the inverter, reducing maintenance costs and ensuring reliable performance.
Applications:
Rural Electrification
Remote Location
Commercial Use

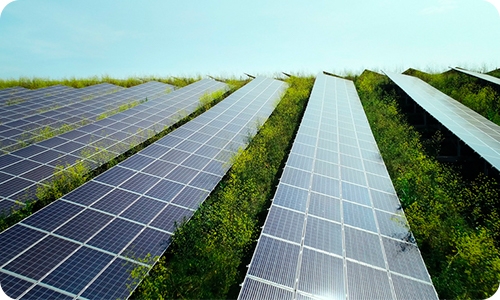

Solar Farm
| MODEL | HZTOHZ-GTI-TL5000 | |||||
| DC INPUT | Max. DC Input Power | 5400 watt | ||||
| Max. DC Input Voltage | 500V DC | |||||
| Max. DC Input Current | 26A | |||||
| MPPT Tracking Voltage Range | 180-500V | |||||
| MPPT Tracking Number / Each Input String Number | 1/2 | |||||
| Power ON / OFF Voltage | 200V / 100V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 5000W | ||||
| Output Range | Single phase AC 190~270V Adjustable according to different countries and regions' requirements. | |||||
| Rated Voltage | 230V AC (Optional: 110V) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | Single phase (L+N) / spilt phase 2 hotline (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC can be customized for this 5000W inverter. | |||||
| Power Factor | 1 | |||||
| Maximum Current | 23A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 97% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Natural cooling | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | 0W | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | The size of the inverter is different due to different specifications, please contact us to confirm. | ||||
| Weight | Single phase version: 46kg, split phase version: 92kg | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
