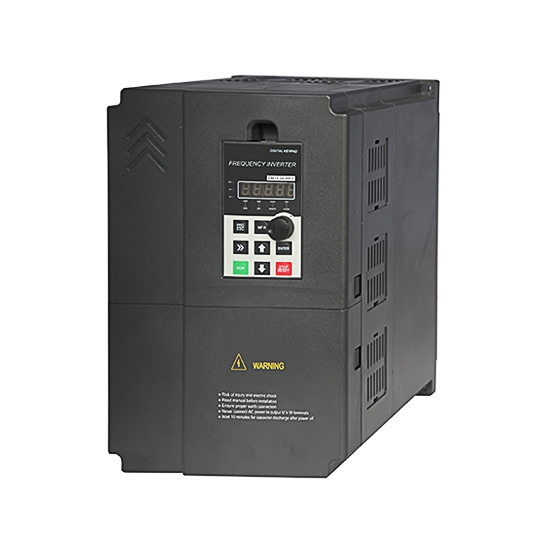

37 KW Three Phase Solar Pump Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
37 KW Three Phase Solar Pump Inverter
from
$1,195.31
Ex Tax: $1,195.31
- Stock: In Stock
- Model: GK330-SP3-037
- Weight: 1.00
- SKU: GK330-SP3-037
Affordable 37 kW solar pump inverter, that converts the DC supply of the solar panel to three-phase alternating current, and auto-adjusts AC motor speed and water flow. It is widely used for agricultural irrigation, livestock watering, domestic water supply, community water projects, etc.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
The cost-effective and advanced 37 kW solar pump inverter's high-density vents dissipate heat superbly, ensuring stable operation in high-temperature environments. DC powerful heat sink, silent operation, effectively reducing the heat generated by using the inverter, intelligent start-stop control. The design of independent air ducts can form an airtight space, effectively preventing dust and water mist from entering the circuit board part.

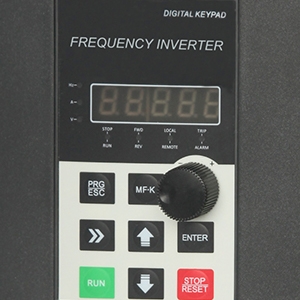

Digital Keypad
The 37 kW solar pumping inverter has a clear digital keyboard that can directly control the start, stop, and acceleration. Users can set the inverter's operating parameters and adjust the output frequency to control the operating speed of the solar pump through simple key operations, easily meeting different working requirements. The digital keyboard is easy to use, making the operation of the solar pump system more efficient and convenient.
Rugged Casing
The solar pump inverter features a compact structure and a rugged casing that is impact-resistant, flame-retardant, aging-resistant, and corrosion-resistant. The 37 kW pump inverter is expertly insulated, dust-proof, and moisture-proof, ensuring all users' stable, safe, and reliable operation. The robust casing protects internal circuits and electronic components, ensuring the inverter's safety, stability, and reliability, effectively extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 037 | Adaptable motor power: 037 (37 KW) |
| Model | SP3-037 |
| Rated power | 37kW |
| Voltage input | DC 350~750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 280V |
| Max. DC voltage | 750V |
| Recommended DC MPPT range | 350~750(V) |
| AC output current | 75A at 3-phase 380V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
