15 Hp Vertical Centrifugal Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VCP-011KW
- Weight: 1.00
- SKU: HZTOHZ-VCP-011KW

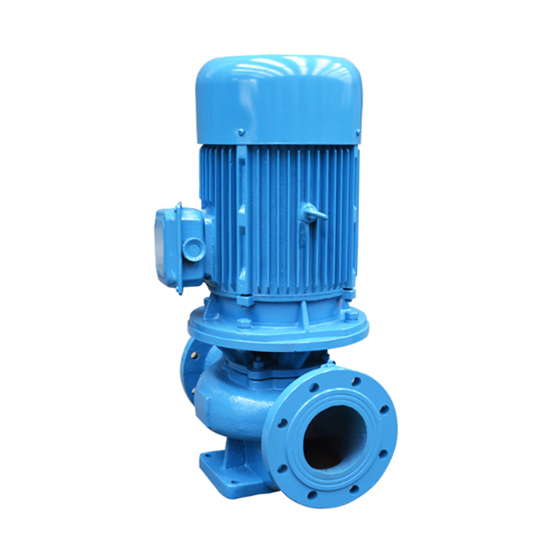

15 hp vertical centrifugal pump with 16.3m3/h maximum flow, 82m maximum head, and 50mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-50-250 | ||
| Weight | 180kg | ||
| Size | 440*430*750mm | ||
| Power | 15 hp (11kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 8.8m3/h (39 gpm, American system) | 12.5m3/h (55 gpm, American system) | 16.3m3/h (72 gpm, American system) |
| Head (max. head to min. head) | 82m (269ft) | 80m (262ft) | 77.5m (254ft) |
| Efficiency | 29% | 38% | 40% |
| Inlet diameter | 50mm (2 inch) | ||
| Outlet diameter | 50mm (2 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 250mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

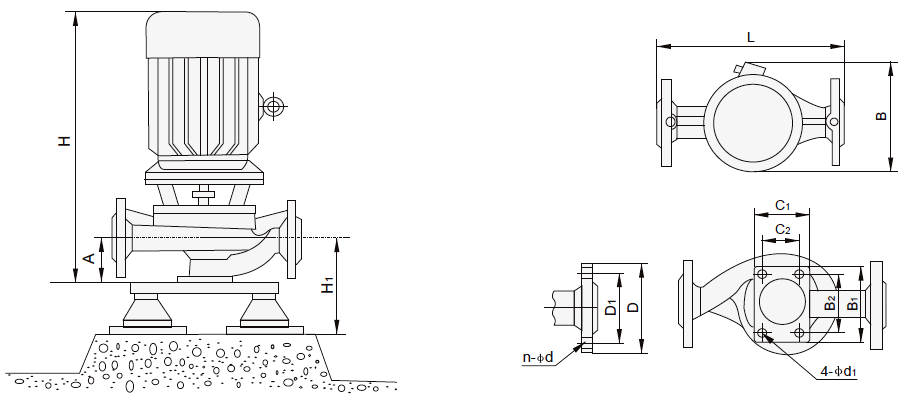

Vertical centrifugal pump dimension (unit: mm):
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 440 | 430 | 750 | 140*200 | 105 | 90*150 | 4-Φ18 | Φ165 | Φ125 | 4-Φ18 |
Tips: Centrifugal pump troubleshooting - insufficient flow and head
Possible reason: Air leakage of the water adsorption pipe or bottom valve, blockage of the water inlet, insufficient underwater depth of the bottom valve, too low water pump revolving speed, too serious abrasion of the sealing ring or impeller, not standard sunction height and so on.
Solution: Check the suction pipe and the bottom valve, block the air leakage source. Clean up the silt or blockage at the water inlet, guarantee the depth of the bottom valve be greater than 1.5 times the diameter of the inlet pipe, increase the depth of the bottom valve, check the power supply voltage, increase the centrifugal pump speed, replace the seal ring or impeller, reduce the installation position of the pump, or replace the high head pump.
