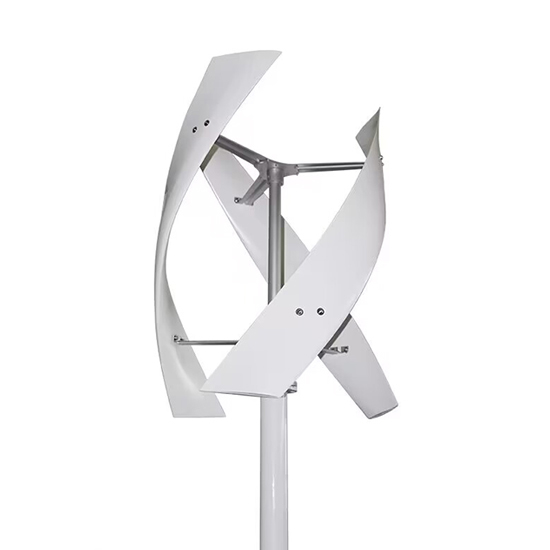

800W Vertical Axis Wind Turbine, 24V/48V/96V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X9-800
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X9-800
Low price small 48V vertical wind generator for sale, 800W vertical axis wind turbine blades are made of reinforced fiberglass, 3 blades design generator can effectively use wind resources to obtain higher power generation.
Specification
| Model | HZTOHZ-VAWT-X9-800 |
| Rated Power | 800W |
| Rated Voltage | 24V/48V/96V |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.5m/1.5m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Reinforced FRP |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN20 |
| Degree of protection | IP54 |
| Gross Weight | 90kg |
| Package Dimension | 1495*455*855 mm |

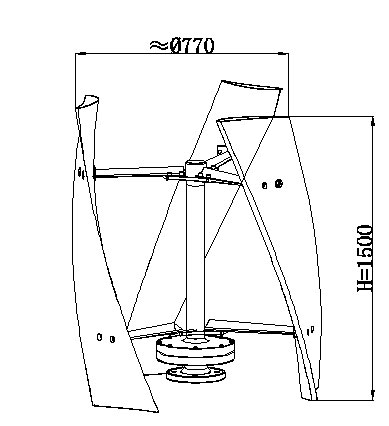

Dimension (Unit: mm)

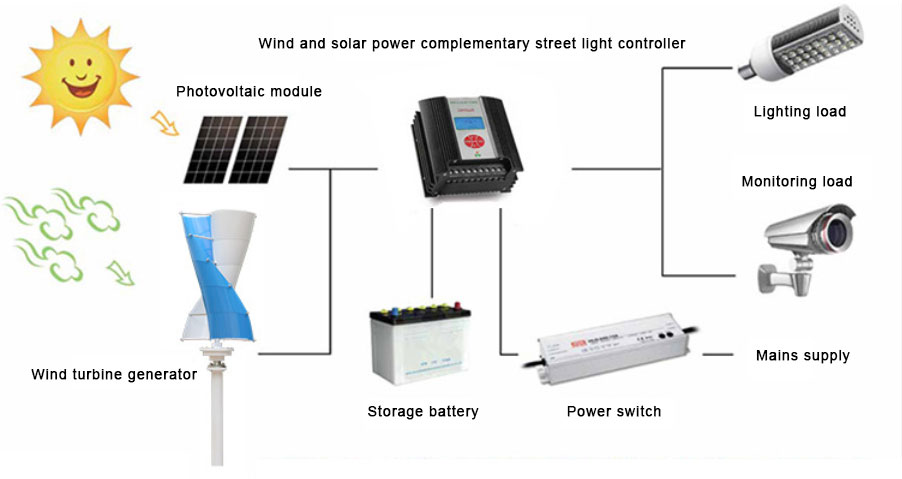

Applications
The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: What is the lifespan of a vertical axis wind turbine?
The lifespan of a vertical axis wind turbine (VAWT) can vary depending on several factors such as the quality of the materials used in its construction, the frequency and intensity of use, and the level of maintenance it receives.
In general, a well-designed and properly maintained VAWT can last up to 20-25 years or more. However, this lifespan can be significantly reduced if the turbine is exposed to harsh environmental conditions such as extreme temperatures, high winds, or corrosive elements.
It's worth noting that VAWTs are still a relatively new technology, and their long-term durability and performance are still being studied and evaluated. As the technology continues to evolve and improve, we can expect to see longer lifespans and better overall performance from these wind turbines.
