500W Vertical Axis Wind Turbine, 12V/24V/48V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X5-500
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X5-500

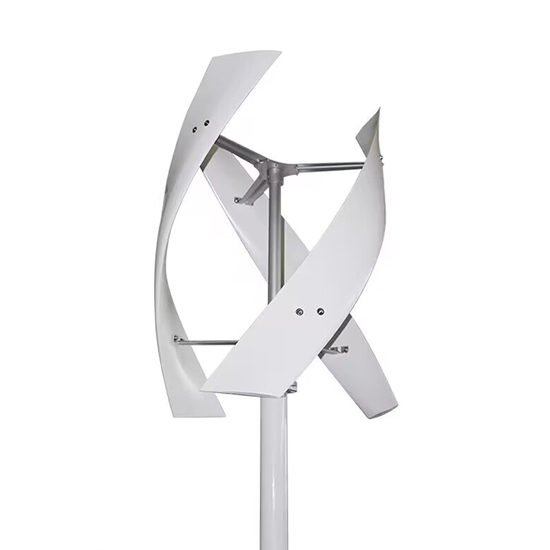

The 500 watt vertical axis wind turbine for home, which is highly efficient, environmentally friendly, and easy to install, comes with a rated voltage of 12V, 24V, or 48V. The vertical wind turbine's control system automatically adjusts the attitude of the blades to maximize the use of the wind and increase power production.
Specification
| Model | HZTOHZ-VAWT-X5-500 |
| Rated Power | 500W |
| Rated Voltage | 12V/24V/48 |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.65m/0.9m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Aluminum alloy |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN25 |
| Degree of protection | IP54 |
| Gross Weight | 21kg |
| Top Net Weight | 22kg |
| Dimension | 1060*270*490mm |

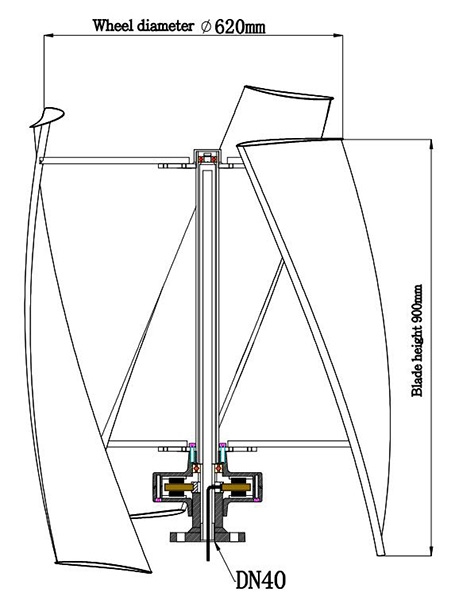

Dimension (Unit: mm)
Applications

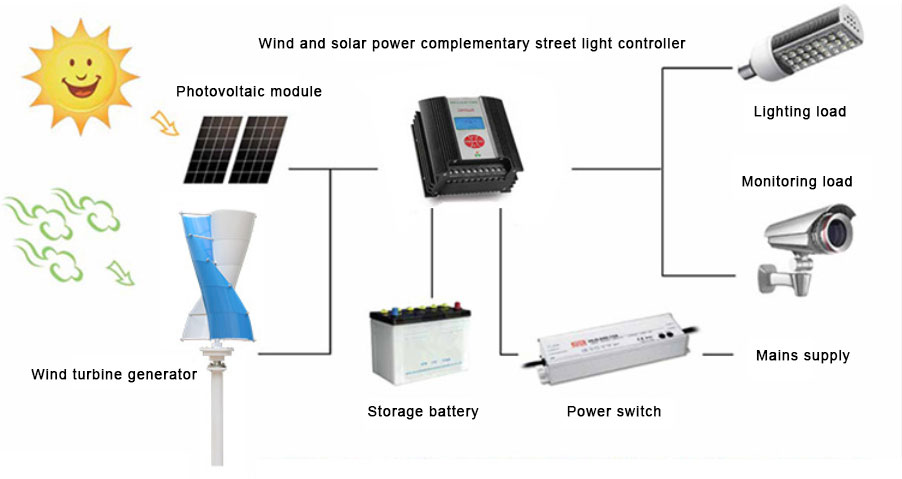

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: How efficient are vertical wind turbines?
Vertical wind turbines can be effective for small-scale energy generation or specific applications, such as powering lights or water pumps in remote areas. They have the advantage of having a compact design, making them suitable for installations in limited spaces.
The effectiveness of vertical wind turbines depends on the circumstances and design factors. They can be used effectively for small-scale energy generation in limited spaces, but they tend to be less energy efficient than horizontal wind turbines.
