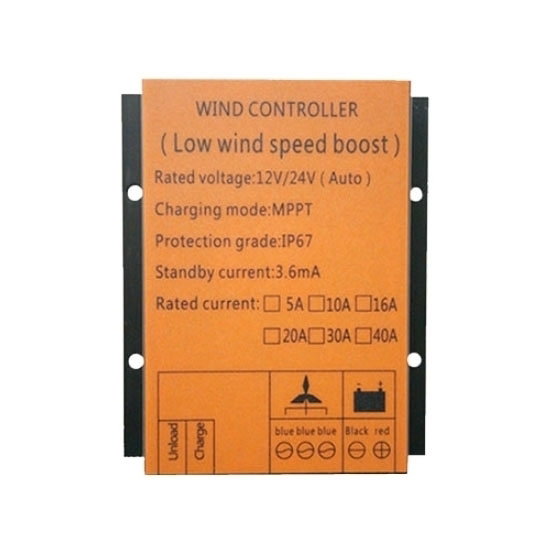

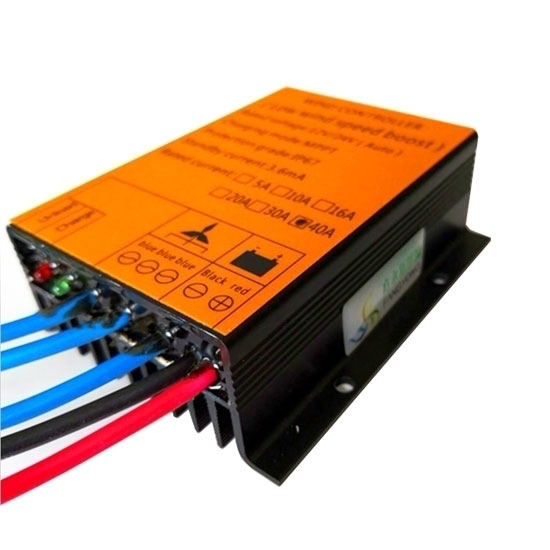

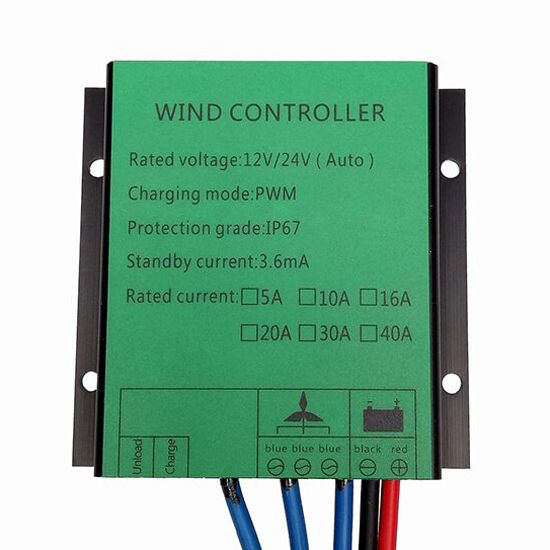

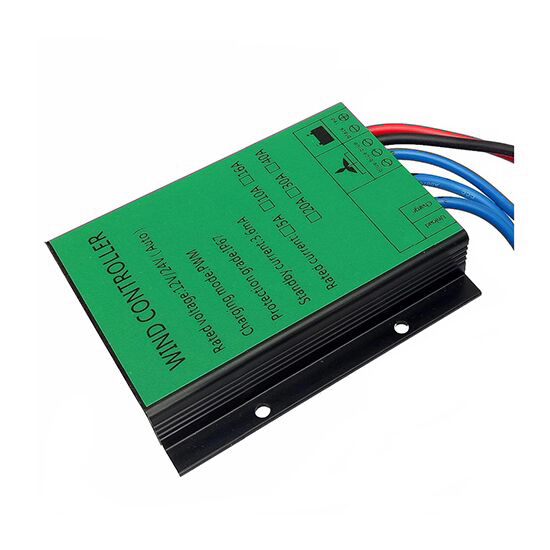

600W Wind Turbine MPPT Charge Controller, 12V/24V
New
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
600W Wind Turbine MPPT Charge Controller, 12V/24V
from
$104.61
Ex Tax: $104.61
- Stock: In Stock
- Model: HZTOHZ-WTCMPPT-600
- Weight: 1.00
- SKU: HZTOHZ-WTCMPPT-600
Buy 12V/24V wind turbine charge controller, mppt control, fan power output, good charging effect, economical and applicable, breeze start wind turbine, 600 watt rated power.
Specification:
| Model | HZTOHZ-WTCMPPT-600 |
| Rated Voltage | 12V/24V (Automatic recognition voltage) |
| Wind Generator Rated Power | 600W |
| Protection | Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking |
| Function | MPPT Charging |
| Unloading Way | PWM electrodeless and noiseless unloading |
| Working Temperature | -20~+60°C 35~85%RH |
| Dimension | 100*80*15mm |
| Net Weight | 0.4kg |
Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage. Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.
Features:
- High quality technical components ensure the stability and reliability of the wind turbine controller.
- Waterproof and dustproof, the controller can be used in various outdoor environments.
- Voltage/current control charging ensures that the battery is always charged.
- The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
- Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

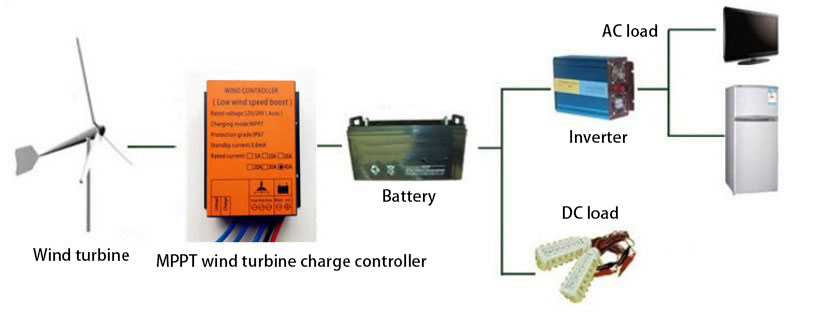

Wind Power System Connection Diagram:
Tips: Safety notes
- When installing insulated tools, use insulated tools. Do not use inferior tools.
- Do not use inferior batteries to prevent leakage or corrosion.
- Do not use cables that are too thin or of poor quality to avoid leakage or fire.
- Do not keep the positive and negative terminals of the battery.
- Do not place the controller in the environment of humidity, dust, rain, severe vibration, corrosion and strong electromagnetic interference. It is strictly prohibited to install and use this controller in a mixed flammable gas environment.
