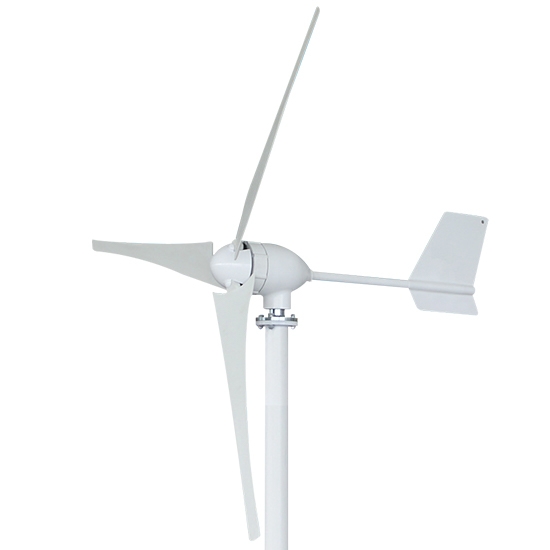

700W Horizontal Axis Wind Turbine, 24V/48V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WT-700M4
- Weight: 1.00
- SKU: HZTOHZ-WT-700M4
A 700W horizontal axis wind turbine is a small-scale wind energy device designed to generate up to 700 watts of electrical power. It features a horizontal axis, meaning the rotor shaft and blades rotate on an axis parallel to the ground. This type of wind turbine is commonly used in residential or small commercial settings, offering a renewable energy solution by converting wind energy into electricity. The 700W capacity makes it suitable for low to moderate-wind speed areas, providing power for off-grid applications or as a supplementary power source.
Features:
- Low starting wind speed, beautiful appearance, and low running vibration.
- This 700W HAWT wind turbine uses a humanized flange installation design, convenient installation and maintenance.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Details:

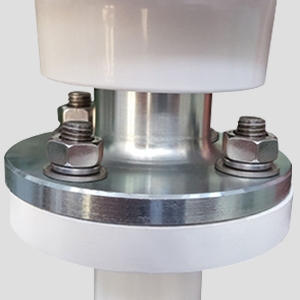

Flange Design
It ensures better load distribution, reduces stress concentrations, and increases the overall lifespan of the 700 watt horizontal axis wind turbine. Flanges allow for easier assembly and maintenance, as they enable precise alignment of parts. This design also improves the stability of the turbine, particularly under high wind conditions, by securing the critical joints more effectively.

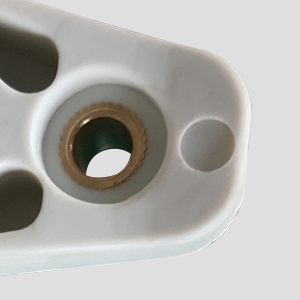

Built-in Copper Insert
Built-in copper inserts in horizontal wind turbines (HAWT) enhance efficiency and performance by improving electrical conductivity and reducing resistance in the generator. This leads to better energy conversion, maximizing power output. Copper's high thermal conductivity helps dissipate heat more effectively, increasing the lifespan and reliability of the wind turbine's components.

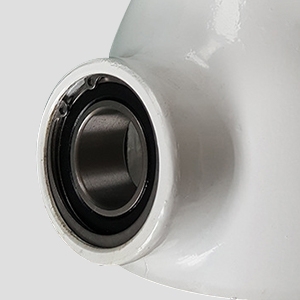

Compact Design
It enhances structural integrity, reducing vibrations and mechanical stress, which leads to a longer lifespan for 700W HAWT wind turbine components. This design also ensures precise alignment of the blades, optimizing aerodynamic efficiency and improving energy capture. The tight fit minimizes gaps, reducing air leakage and enhancing overall turbine performance.

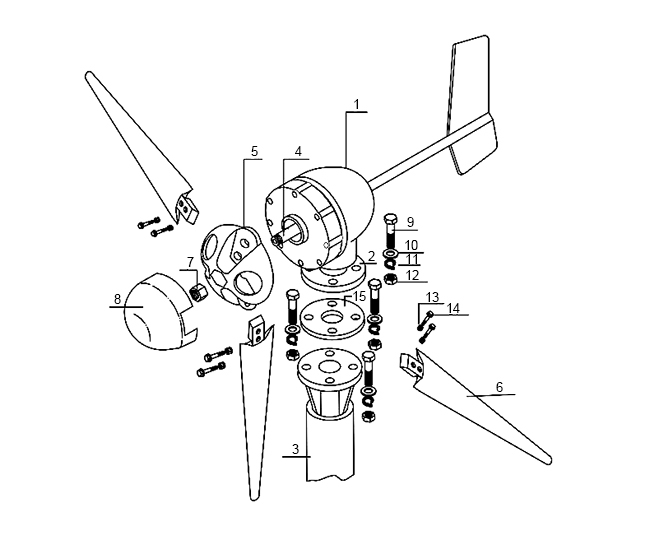

700W HWAT Decomposition Diagram:
1. Wind turbine body; 2. Wind turbine flange seat; 3. Tower; 4. Wind turbine shaft; 5. Wind turbine hub; 6. Wind turbine blade; 7. Lock nut; 8. Fairing; 9. Bolt; 10. Flat washer; 11. Elastic washer; 12. Nuts; 13. Stainless steel screw; 14. Anti-loose nut; 15. Rubber gasket
Applications:

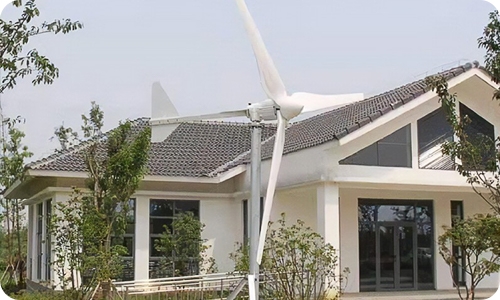

Home
Industry Field
Offshore Wind Farm
Remote Area
| Model | HZTOHZ-WT-700M4 |
| Rated power | 700W |
| Maximum power | 720W |
| Rated voltage | 24V/48V |
| Start-up wind speed | 2.5m/s |
| Rated wind speed | 11m/s |
| Safe wind speed | 45m/s |
| Fan blade diameter | 1.86m |
| Number of blades | 3/5 pieces |
| Blade material | nylon fiber |
| Generator material | 3-phase AC permanent magnet generator |
| Magnetic steel material | NdFeB |
| Generator housing material | die-cast aluminum |
| Control system | electromagnetism |
| Wind direction adjustment | automatically adjusts the windward angle |
| Working temperature | -20 ℃~60 ℃ |
| Net weight | 24kg |
