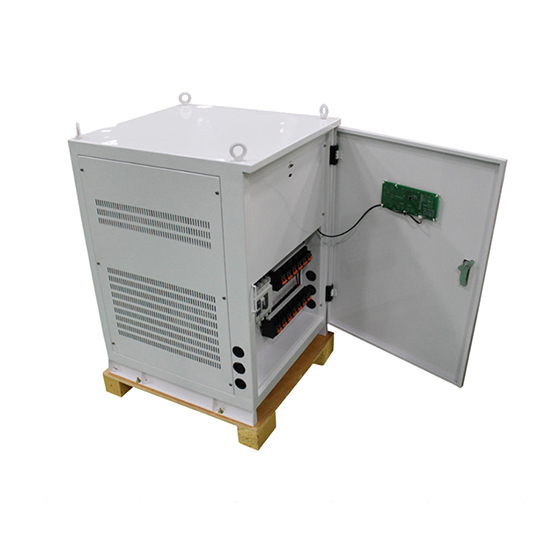

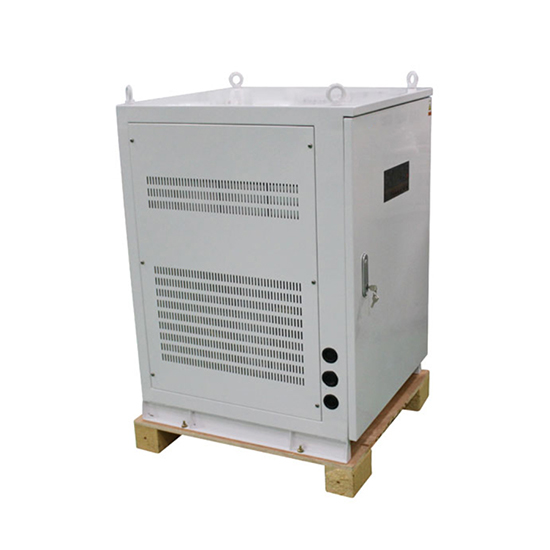

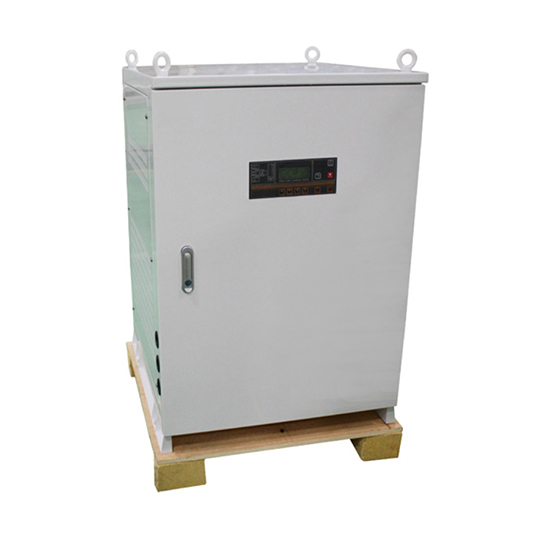

50kW Three Phase Grid Tie Solar Inverter
from
$8,082.69
Ex Tax: $8,082.69
- Stock: In Stock
- Model: HZTOHZ-GTI-TLC50000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TLC50000
The high-power 50kW grid tie solar inverter converts 200-820V DC to 3 phase 380 volt, 460 volt and feed the power into the grid, high reliability due to perfect protection function, powerful communication interfaces, easy operation and installation. With a power capacity of 50 kilowatts, this three-phase grid-connected inverter is typically used for medium to large-scale solar installations, such as in commercial buildings, industrial facilities, or large residential complexes.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- The on-grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

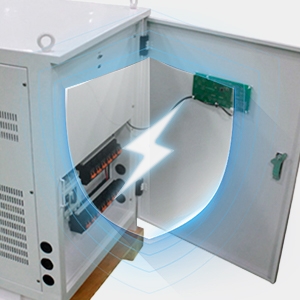

Multiple Protection
It enhances system reliability and safety by safeguarding against over-voltage, under-voltage, over-current, and short circuits. This protection ensures consistent performance, minimizes downtime, and extends the lifespan of both the solar grid tie inverter and connected equipment. It helps in maintaining grid stability by preventing disturbances caused by inverter malfunctions. Also, it can prevent costly damage and reduce maintenance expenses.

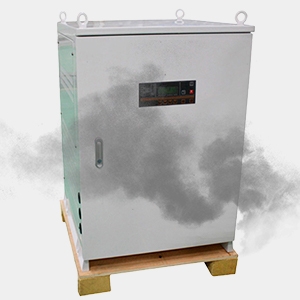

IP65 Protection
It ensures complete protection against dust ingress, enhancing the inverter's reliability and longevity in harsh environments. IP65 rating also protects against low-pressure water jets from any direction, allowing the grid tie PV inverter to be installed outdoors without risk of water damage. IP65 protection increases durability, reduces maintenance needs, and ensures stable performance in challenging conditions.

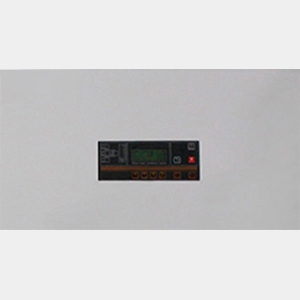

LCD Display
It provides real-time monitoring and feedback on the solar grid connected inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.
Applications:
Irrigation System
New Energy Field
Medical Devices
Industrial Automation
| MODEL | HZTOHZ-GTI-TLC50000 | |||||
| DC INPUT | Max. DC Input Power | 55000 watt | ||||
| Max. DC Input Voltage | 850V DC | |||||
| Max. DC Input Current | 150A | |||||
| MPPT Tracking Voltage Range | 200-820V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 300V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 50kW | ||||
| Output Voltage | Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | 3 phase 4 line (3L+N+PE) | |||||
| Power Factor | 0.9 | |||||
| Maximum Current | 75A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 98.6% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | <> | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | 830*890*685mm | ||||
| Weight | 163kg | |||||
| Certificate | IEC | |||||
| Warranty | 5 years | |||||
