5000 Watt Pure Sine Wave UPS Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-UPSI-5000
- Weight: 1.00
- SKU: HZTOHZ-UPSI-5000
A 5000 watt pure sine wave ups (uninterruptible power supply) inverter is a device that converts DC (direct current) power from batteries into AC (alternating current) power, providing up to 5000 watts of continuous output. The pure sine wave output making it suitable for sensitive electronics and appliances. This type of inverter is ideal for use in homes, RVs, boats, and off-grid solar systems, offering reliable backup power during outages. UPS power inverter can handle high-power demands from devices like refrigerators, pumps, and medical equipment while ensuring stable and clean power for computers, TVs, and other sensitive electronics.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- UPS inverter with pure sine wave output (THD＜3%)
- UPS power inverter built-in 3-stages battery charger, allow to run loads while charging.
- Automatically switch with a ultra-fast switching time.
- 5000 watt ups inverter has soft-start technology.
- High efficiency-converts the battery’s available power.
- 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Aluminum shell with good heat dissipation and strong shock resistance.
- Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries.
- LED indicators for power and protections.
- Switch-mode design in uninterruptible power supply inverter, easy to use.
Details:

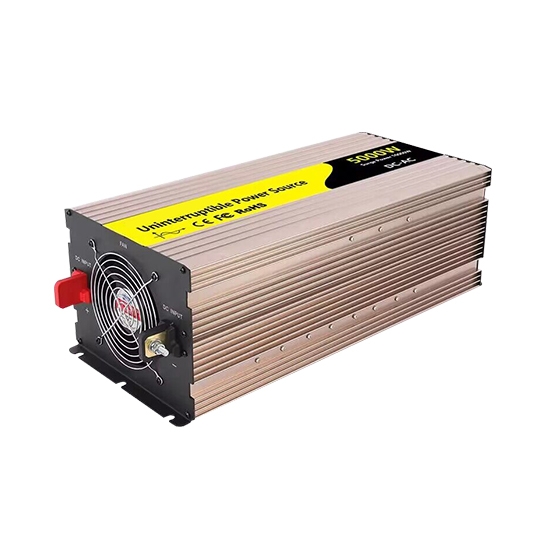

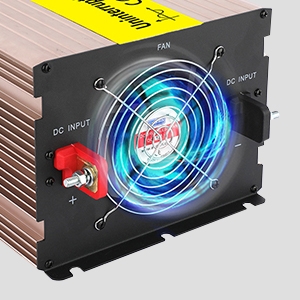

Intellgent Cooling Fan
A cooling fan in a 5000W pure sine wave ups inverter helps dissipate heat generated during operation, ensuring optimal performance and longevity. It prevents overheating, which can lead to inefficiency, component damage, or system failure. By maintaining a stable temperature, the fan enhances reliability and allows the inverter to consistently deliver clean, stable power.

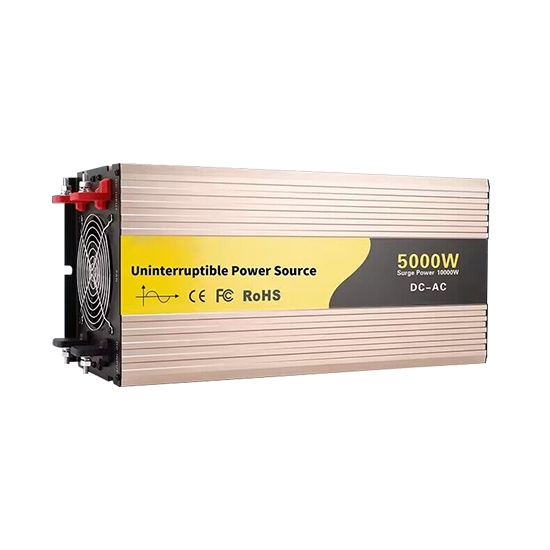

Aluminum Alloy Shell
The lightweight yet robust nature of aluminum enhances the ups inverter's portability and durability, making it resistant to corrosion and physical damage. Aluminum casing shields the inverter from electromagnetic interference, ensuring stable and reliable performance. It provides excellent heat dissipation, ensuring efficient cooling and preventing overheating during high-power operations.

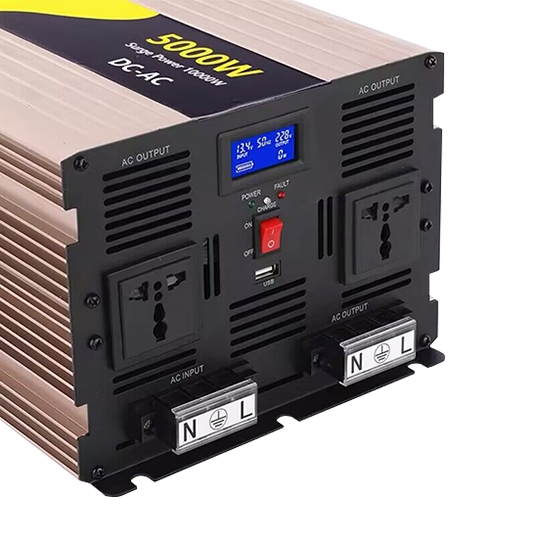

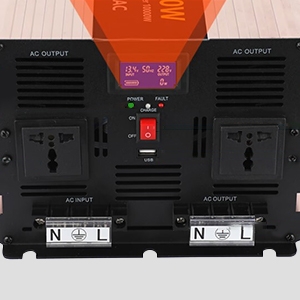

One-touch Switch
It simplifies operation, allowing users to easily switch between modes or turn the pure sine inverter on/off with a single press. This convenience reduces the potential for user error and makes it more accessible for non-technical users. Additionally, it enhances safety by minimizing the need for manual intervention, thereby reducing the risk of accidental damage or electrical faults.
Applications:
Camping
Household Appliance
Office Electricity
Outdoor Work
| Model | HZTOHZ-UPSI-5000 | |||
| Rated power | 5000W | |||
| Peak power | 10000W | |||
| Input voltage range | DC 12V | DC 24V | DC 48V (if you want, please contact us) | |
| Output voltage | 220VAC or 230VAC or 240VAC | |||
| Unload current less than | 1.2A | 0.8A | 0.5A | |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||
| Output waveform | Pure Sine Wave | |||
| Waveform distortion | THD＜3% (linear load) | |||
| Phase | 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) | |||
| USB port | QC 3.0 | QC 3.0 | / | |
| Max. efficiency | 90% | 92% | 95% | |
| Charging current | 40A | 20A | 10A | |
| Input voltage range | 10-15.5V | 20-31V | 40-61V | |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±1.5V | |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |
| Protection function | Low voltage | Alarm at first, voltage continuously reduce. LED red light on and shut down | ||
| Over voltage | LED red light on, shut down | |||
| Over load | LED red light on, shut down | |||
| Over temperature | Alarm at first, tempurature continuously rise. LED red light on and shut down | |||
| Short circuit | LED red light on | |||
| Input reverse polarity | Fuse burn-out | |||
| Working temperature | 10℃—+50℃ | |||
| Storage temperature | -30℃—+70℃ | |||
| Dimension (mm) | 475*205*152 | |||
| Packing (mm) | 565*302*240 | |||
| Net. / gross weight (g) | 9040/11500 | |||
| QTY / Cth | 1Pcs | |||
| Meas.Ctn (mm) | 565*302*240 | |||
| Warranty | 2 years | |||
| Cooling method | Intelligent air cooling | |||

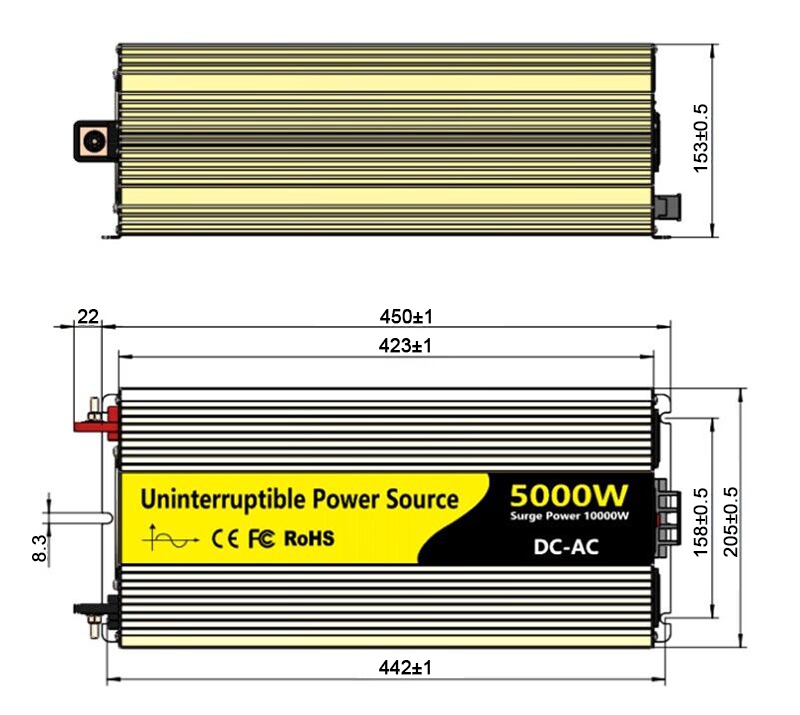

Dimensions (Unit: mm)

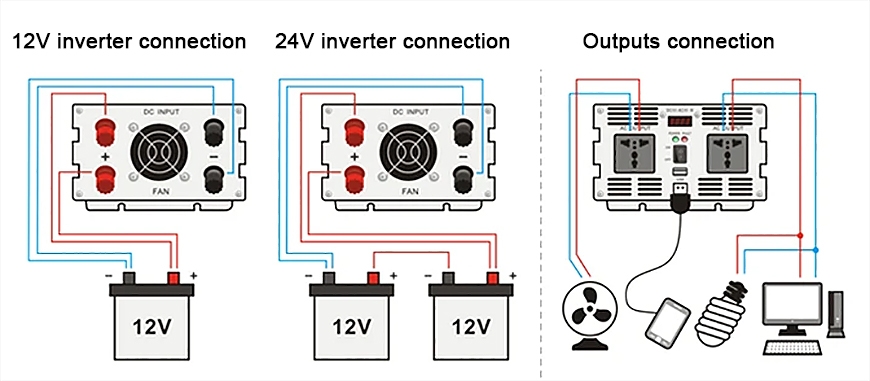

Wiring Diagram:

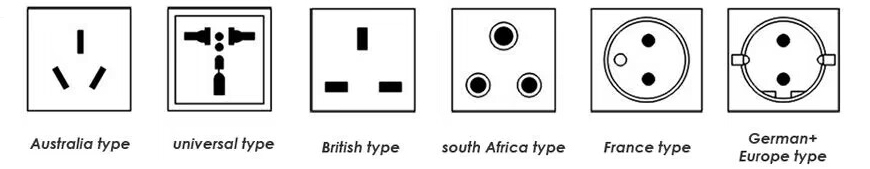

Pure Sine Wave UPS Inverter Output Sockets (Optional)
