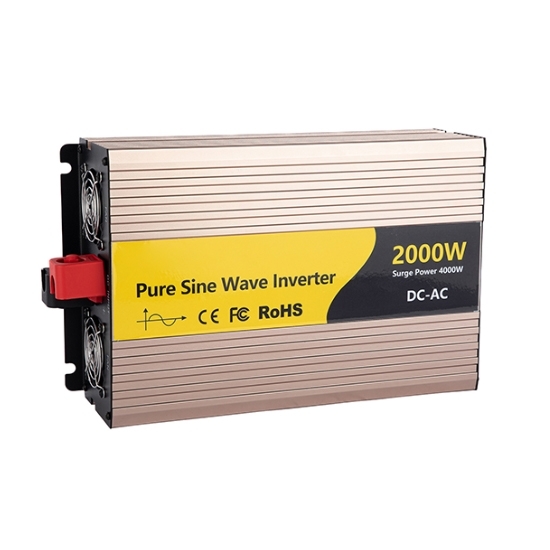

12V 2000 Watt Pure Sine Wave Inverter
from
$291.19
Ex Tax: $291.19
- Stock: In Stock
- Model: HZTOHZ-PSWI-12V-2000W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-12V-2000W

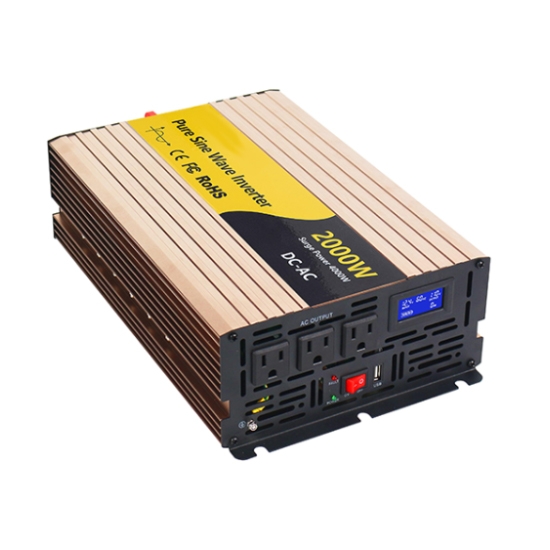

12V 2000W pure sine wave inverter with LCD display, remote ON/OFF, AC 110V/120V/220V/230V/240V, built-in overload, short circuit, over voltage, under voltage, over temperature protection functions, high reliability. This makes 2000 watt pure sine wave power inverter compatible with a wider range of sensitive electronic equipment, including medical devices, audio equipment, and variable-speed motors, without risking damage or malfunction.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Imported parts. The pure sine wave inverter materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

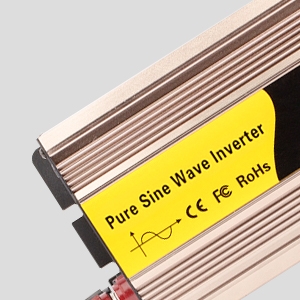

Aluminium Alloy housing
Aluminium's excellent thermal conductivity facilitates efficient heat dissipation, enhancing the inverter's performance and lifespan. its corrosion resistance ensures longevity even in harsh environments. Thermal efficiency, and environmental friendliness, making it an optimal choice for 12 volt inverter 2000 watt.

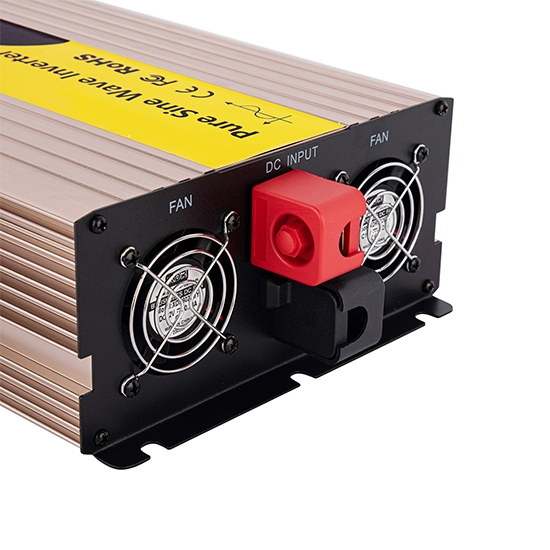

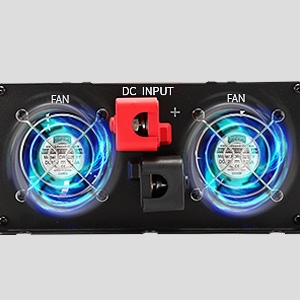

Dual Intellengent Cooling Fan
Adopts with dual fans instead of one, they ensure better heat dissipation, preventing overheating and prolonging the lifespan of the inverter components, enhancing the overall reliability of the pure sine wave inverter system. Improved performance, increased durability, and reduced maintenance requirements.

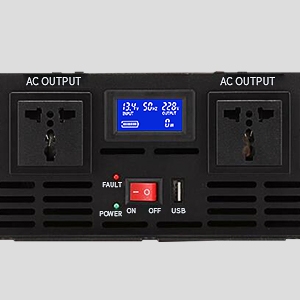

LCD Display
LCD screens consume less power compared to traditional displays, conserving energy and extending battery life. LCD provides clear, sharp visuals with wide viewing angles, ensuring readability even in varying lighting conditions. Users can easily read the information displayed on the screen without any difficulty.
Applications:
Audio Equipment
Residential Use
Industrial Equipment
Sensitive Electronic
| Model | HZTOHZ-PSWI-12V-2000W |
| Rated Power | 2000 Watt |
| Peak Power | 4000 Watt |
| Input Voltage | DC 12V |
| Output Voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| Unload Current Less Than | 0.9A |
| Output Frequency | 50Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | QC 3.0 |
| Max Working Efficiency | 90% |
| Low Voltage Protection Function | Alarm at first, voltage continously reduce. LED Red light on & shut sown |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, tempurature continously rise. LED Red light on & shut sown |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 10-15.5V |
| Low Voltage Alarm | 10.5±0.5V |
| Low Voltage Protection | 10±0.5V |
| Over Voltage Protection | 15.5±0.5V |
| Low Voltage Recover | 12.3±0.5V |
| Over Voltage Recover | 14.8±0.5V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 1 year |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 355mm*205mm*95mm |
| Net/Gross Weight | 3900g / 4600g |

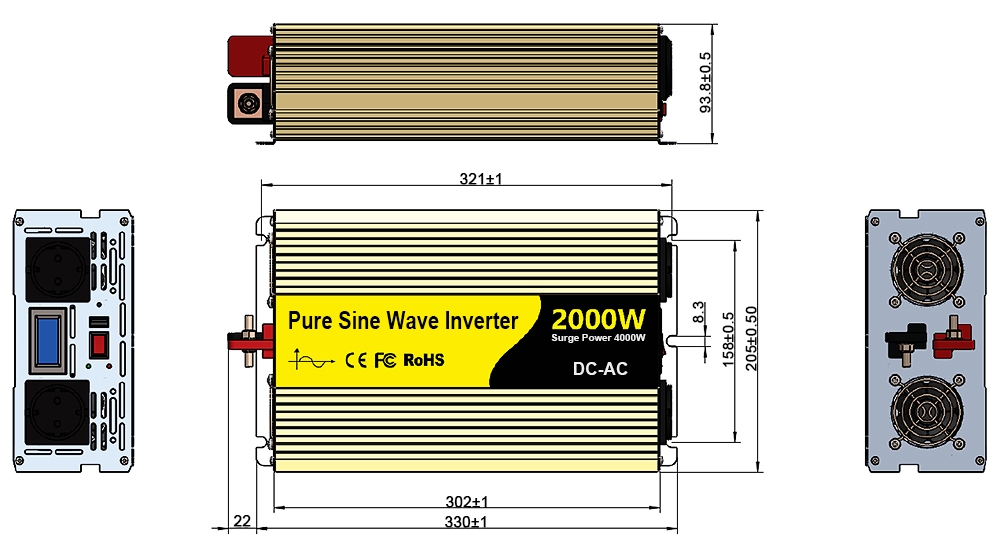

Dimension (Unit: mm)

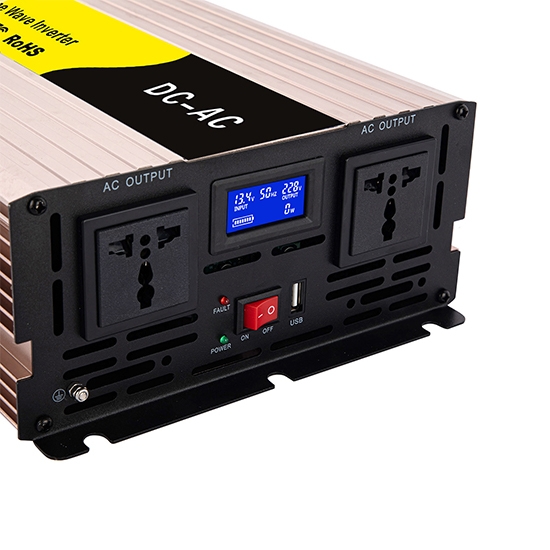

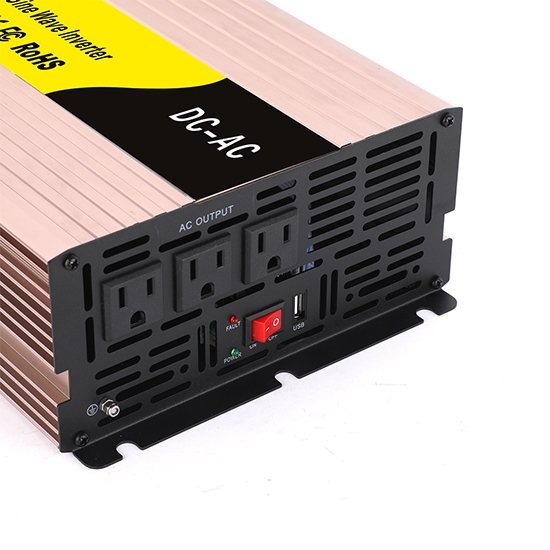

Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).

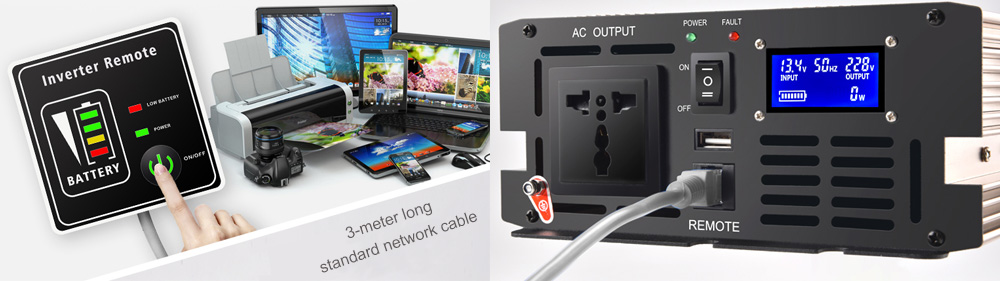

Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
