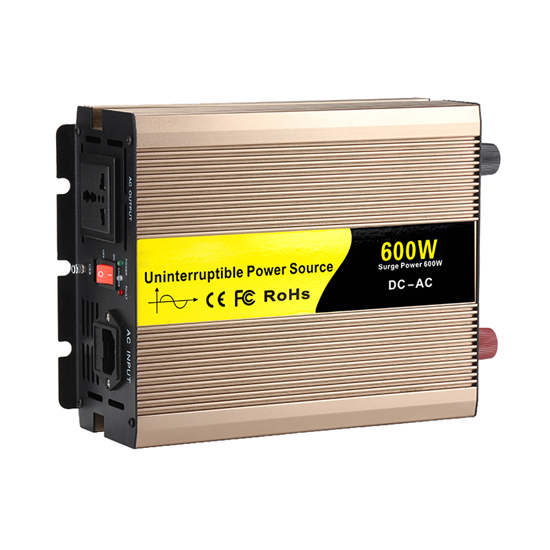

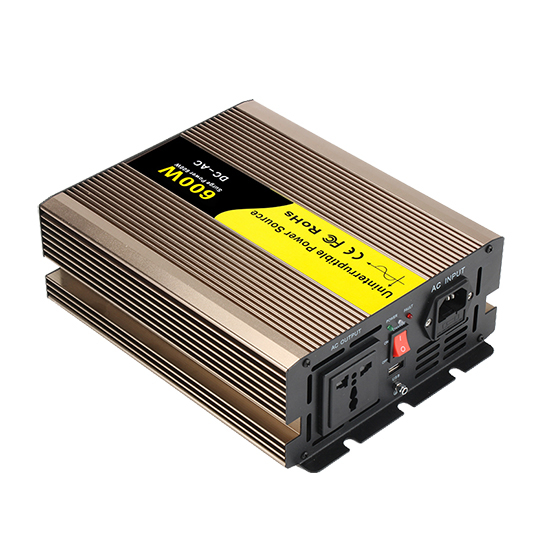

600 Watt Pure Sine Wave UPS Inverter
from
$204.76
Ex Tax: $204.76
- Stock: In Stock
- Model: HZTOHZ-UPSI-600
- Weight: 1.00
- SKU: HZTOHZ-UPSI-600
Lowest price 600 watt (650VA) pure sine wave power inverter with USB output port. It can meet any type of AC load, without damaging the load, small in size, elegant in appearance and easy to carry. With a power capacity of 600 watts, this ups inverter is suitable for supporting moderate loads during power outages, offering efficient and reliable backup power for various electronic devices.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- 600W ups inverter with pure sine wave output (THD＜3%)
- UPS inverter built-in 3-stages battery charger, allow to run loads while charging.
- Automatically switch with a ultra-fast switching time.
- Soft-start technology.
- High efficiency-converts the battery’s available power.
- 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries.
- USB charging port in uninterruptible power supply inverter: 5V, ideally qualified for powering your phone, laptop, pc, etc.
- LED indicators for power and protections.
- Switch-mode design in sine wave inverter, easy to use.
Details:

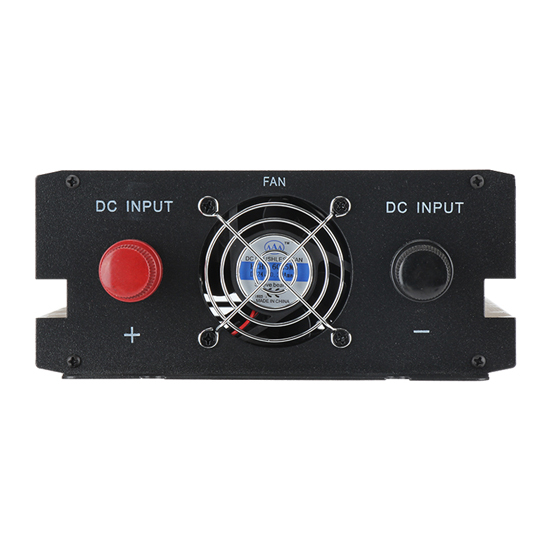

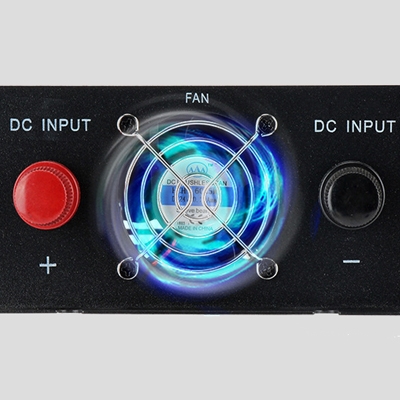

Intelligent Cooling Fan
The automatically activates the fan after the temperature reaches 45℃, effectively reduce ups inverter energy consumption.

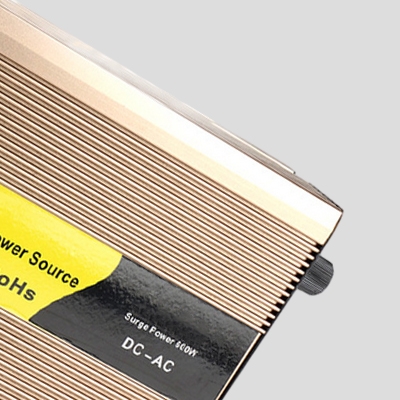

Aluminum Alloy Shell
The surface with aluminum alloy is sandblasted and oxidized for better heat dissipation, and it doesn't discolor easily.

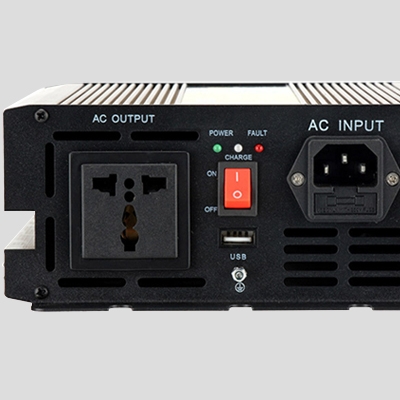

One-touch Switch
The one-touch power on/off control for efficient management, safer electricity consumption, LCD display also available.
Applications:
Camping
Household Appliance
Office Electricity
Outdoor Work
| Model | HZTOHZ-UPSI-600 | ||||||
| Rated power | 600W (650VA) | ||||||
| Peak power | 1200W | ||||||
| Input voltage | DC 12V | DC 24V | DC 48V (if you want, please contact us) | ||||
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | ||||||
| Unload current less than | 0.4A | 0.3A | 0.2A | ||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Power switching time | ≤ 9 ms | ||||||
| Phase | 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) | ||||||
| Waveform distortion | THD＜3% (Linear load) | ||||||
| USB port | QC3.0 | / | |||||
| Max. efficiency | 90% | 92% | |||||
| Charging current | 20A | 10A | 5A | ||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±1.5V | ||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
| Protect function | Low voltage | Alarm at first, voltage continuously reduces. LED red light on and shut down | |||||
| Over voltage | LED red light on, shut down | ||||||
| Over load | LED red light on, shut down | ||||||
| Over temperature | Alarm at first, temperature continuously rises. LED Red light on and shut down | ||||||
| Short circuit | LED red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | -10 ℃—+50 ℃ | ||||||
| Storage temperature | -30 ℃—+70 ℃ | ||||||
| Dimension (mm) | 305*180*80 | ||||||
| Packing (mm) | 345*230*130 | ||||||
| Net. / gross weight (g) | 3000/3600 | ||||||
| QTY / Cth | 6Pcs | ||||||
| Meas.Ctn (mm) | 490*360*440 | ||||||
| Warranty | 2 years | ||||||
| Cooling method | Intelligent air cooling | ||||||

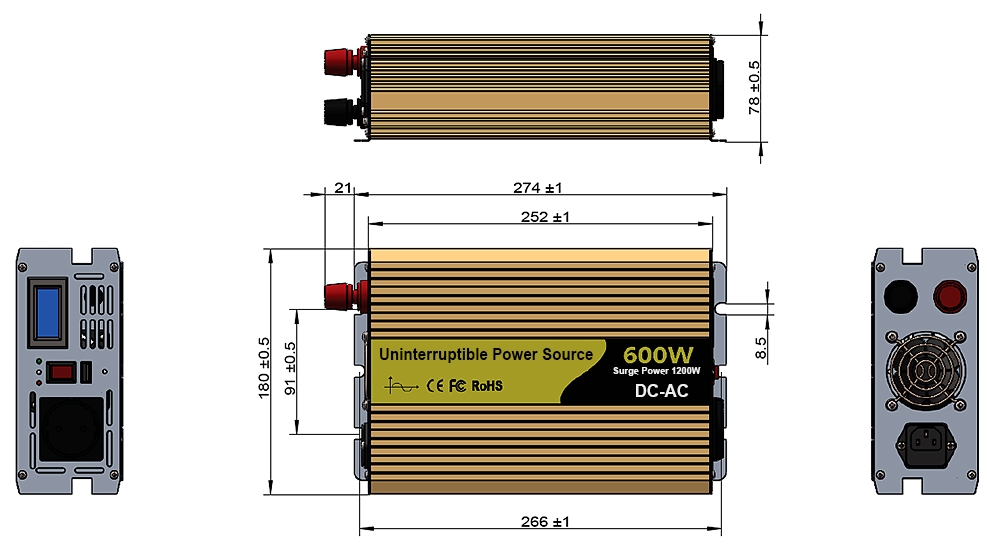

Dimension (Unit: mm)

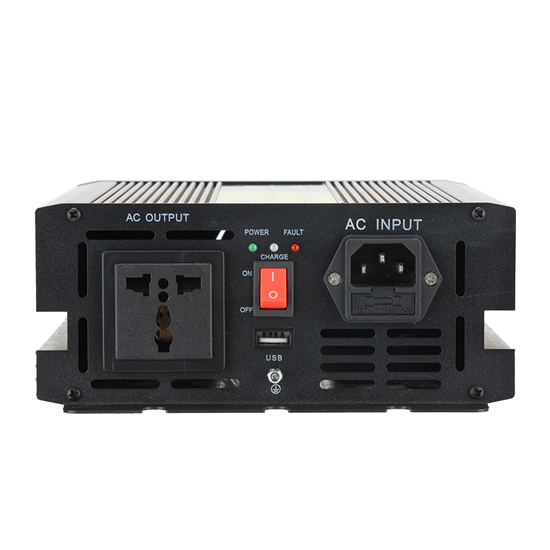

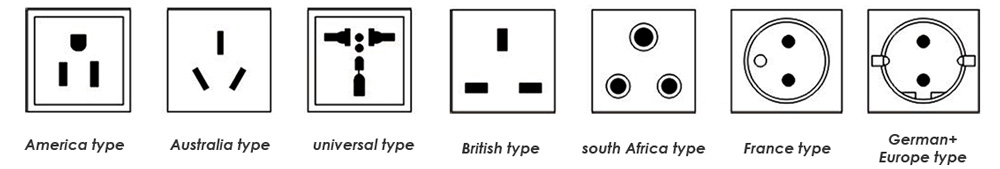

Pure Sine Wave UPS Inverter Output Sockets (Optional)
