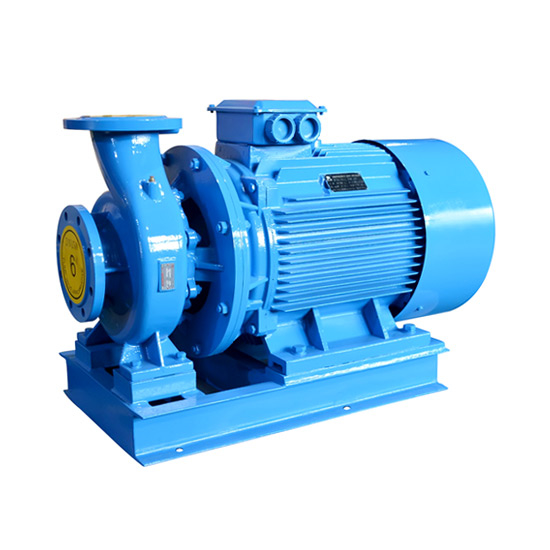

40 hp horizontal centrifugal pump with 32.5m3/h maximum flow, 127m maximum head, and 65mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-65-315 | ||
| Weight | 360kg | ||
| Size | 570*930*390mm | ||
| Power | 40 hp (30kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 17.5m3/h (77 gpm, American system) | 25m3/h (110 gpm, American system) | 32.5m3/h (143 gpm, American system) |
| Head (max. head to min. head) | 127m (417ft) | 125m (410ft) | 122m (400ft) |
| Efficiency | 32% | 40% | 44% |
| Inlet diameter | 65mm (2-1/2 inch) | ||
| Outlet diameter | 65mm (2-1/2 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 315mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.5m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

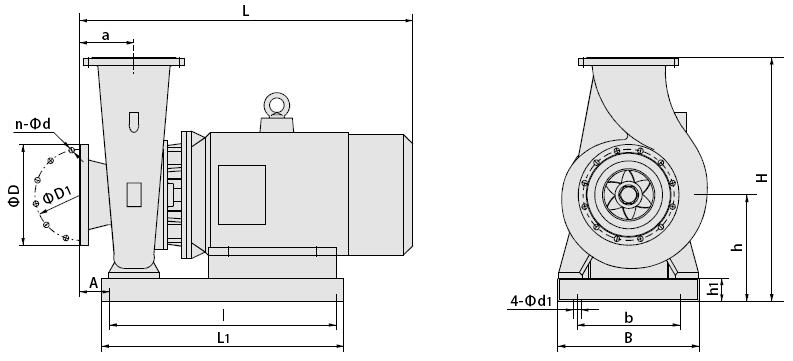

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 300 | 570 | 930 | 125 | 100 | 700 | 390 | 620 | 290 | 100 | 4-Φ20 | Φ185 | Φ145 | 4-Φ18 |
Tips: What is the single-stage centrifugal pump?
The single-stage pump refers to a pump with only one impeller. The general single-stage pump has a high head of 125 meters (410ft). It has advantages such as the simple structure, stable performance, high speed, small size, light weight, high efficiency, large flow, easy operation and maintenance, and so on.
Classification of the single-stage centrifugal pump
According to the installation position of the motor, it is classified into a horizontal single-stage pump and a vertical single-stage pump.
According to the flow pass of suction, it is classified into: single-stage single-suction centrifugal pump, single-stage double-suction centrifugal pump.
Constitution of the single-stage pump
The single-stage pump includes a pump body, a pump cover, an electric motor with an output shaft, a pump shaft, a bearing housing, an impeller, a mechanical seal, and a machine gland mounted in the single-stage pump body. It still has the characteristics that it includes a double-clip coupling set between the motor output shaft and pump shaft, as well as the pilot bearing supporting the pump shaft, which is mounted on the bearing seat. The above-mentioned double-clip coupling is rigidly connected to the motor output shaft and the pump shaft, respectively. In addition, a space is reserved between the motor output shaft and the pump shaft to facilitate the mechanical seal and machine seal gland assembly and disassembly. Therefore, there is no need to disassemble the motor and the pump cover to repair or exchange the mechanical seal.
