210W solar water pump with DC controller, 36V working voltage, 317 gph max. flow, 77m max. head.

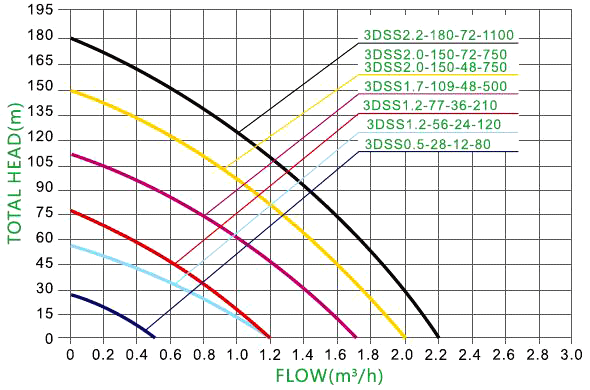

210W 36V DC solar water pump performance curves (see red line):

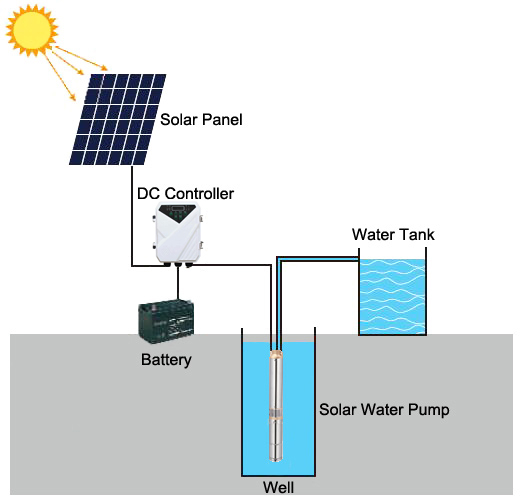

Solar water pump installation drawing:

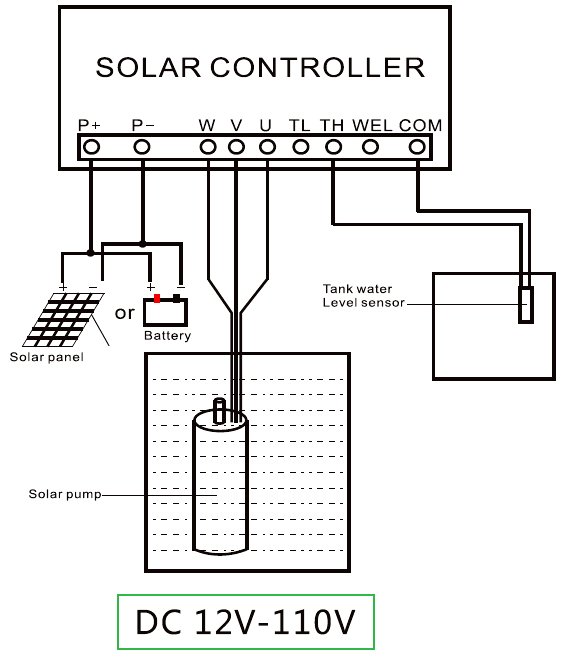

Solar water pump wiring diagram:
| Basics | SKU | HZTOHZ-SWP-36V210 |
| Shipping weight | 15kg | |
| Cable length | 2m | |

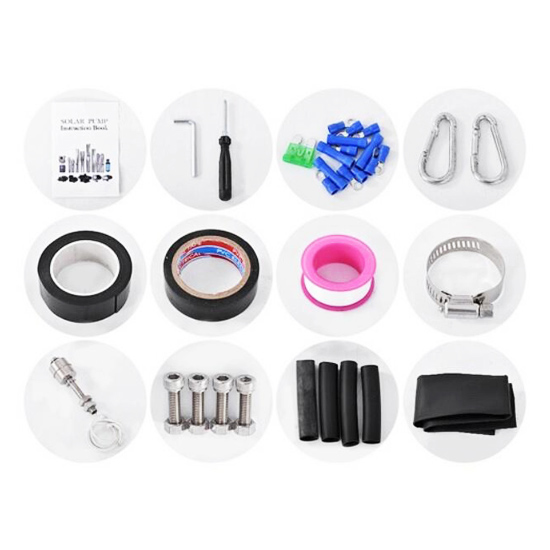

| Package included | 1 * Solar water pump with 2m cable 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual | |
| Warranty | 2 years | |
| Solar water pump features | Model | 3DSS1.2-77-36-210 |
| Voltage | 36V DC | |
| Power | 210W | |
| Max. flow | 1.2m3/h (317 gph, American system) | |
| Max. head | 77m (250ft) | |
| Length | 60cm | |
| Inlet diameter | 3 inch | |
| Outlet diameter | 0.75 inch | |
| Screw structure | Stainless steel single screw | |
| Internal motor | Brushless DC motor | |
| Speed | 4000rpm | |
| Material of shaft | 304 stainless steel | |
| Material of outlet/connector/oil cylinder | Stainless steel | |
| No water protection function | The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | |
| Required open circuit voltage (VOC) of solar panel | ＜50V DC | |
| Required power of solar panel | ≥1.3*pump power | |
| Efficiency | 45% | |
| Controller features | Model | DF-36 |
| Best MPPT voltage range | 30-58V DC | |
| Max. input current | 15A | |
| Working temperature | -15~+60℃ (5~140℉) | |
| Display | LED display can show power, voltage, current and speed value. | |
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection | |
| Protection class | IP65 |
