600W 48V DC Solar Water Pump
from
$746.03
Ex Tax: $746.03
- Stock: In Stock
- Model: HZTOHZ-SWP-48V600
- Weight: 1.00
- SKU: HZTOHZ-SWP-48V600

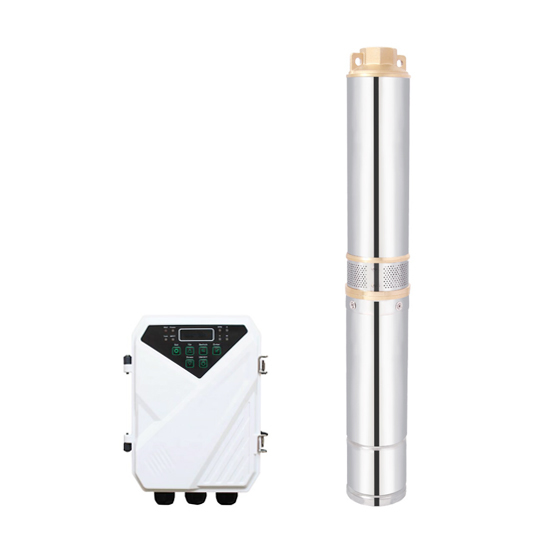

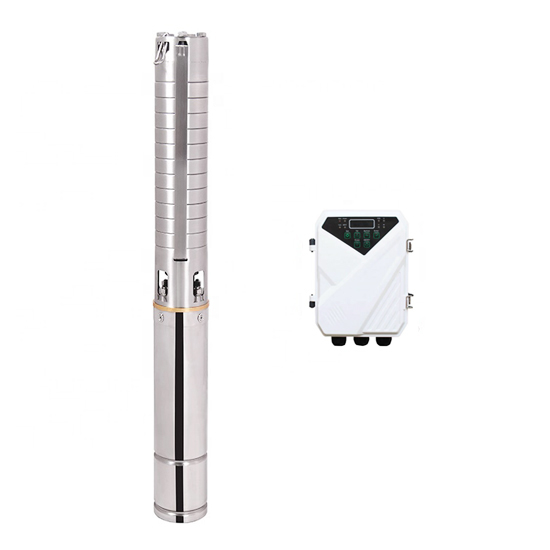

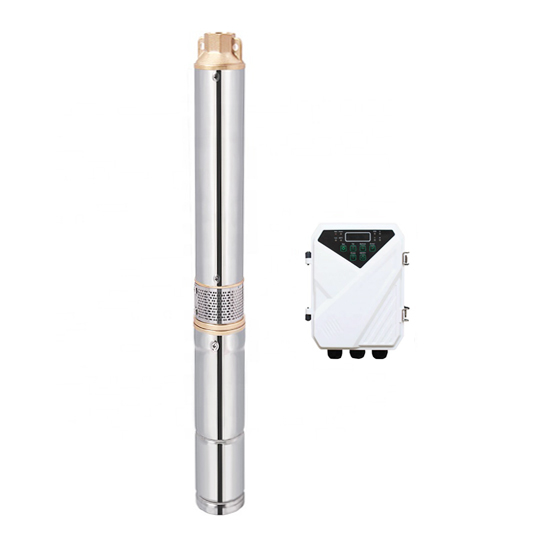

600W solar water pump with DC controller, 48V working voltage, 800~1585 gph max. flow, 42~80m max. head.

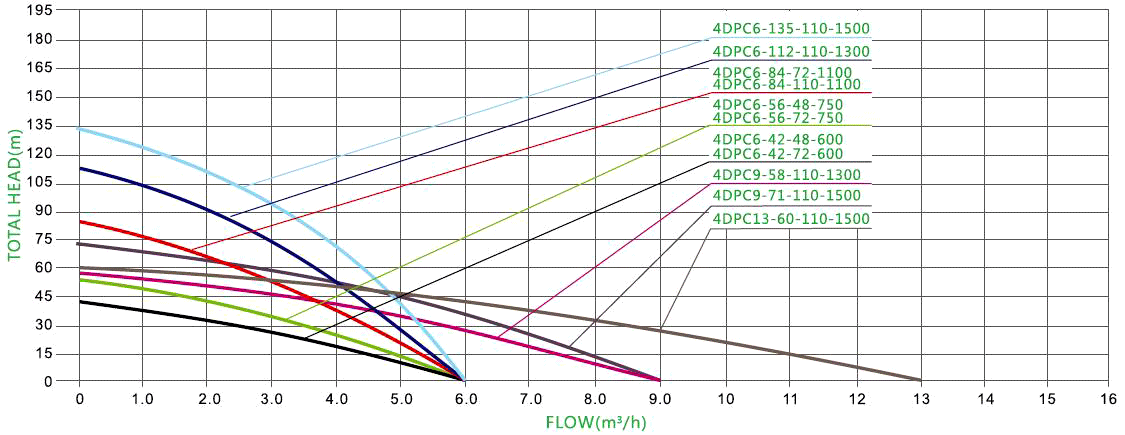

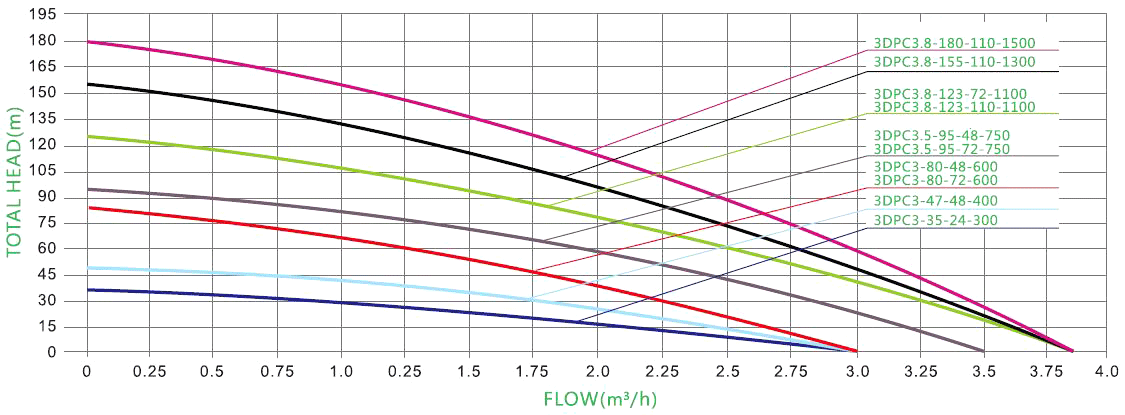

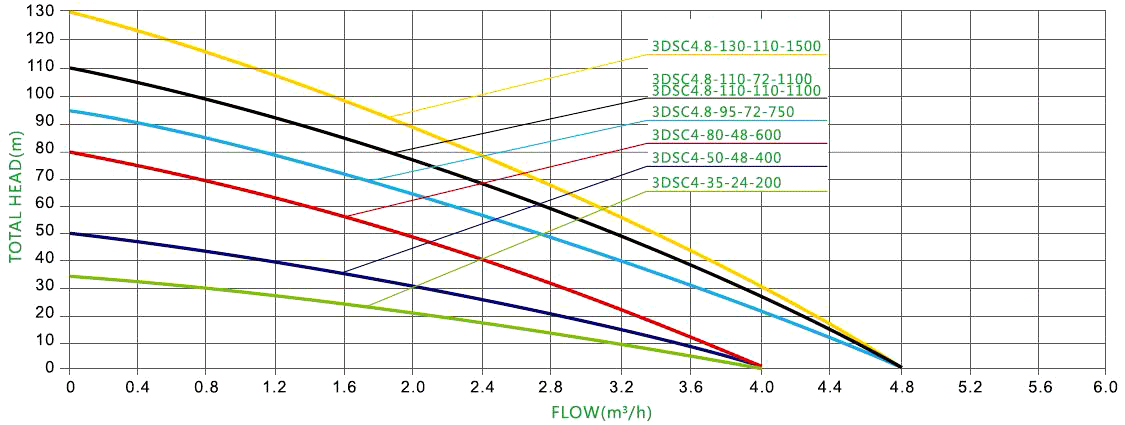

600W 48V DC solar water pump performance curves:
Max. Flow: 3.0m3/h, Max. Head: 80m, Model: 3DPC3-80-48-600
Max. Flow: 4.0m3/h, Max. Head: 80m, Model: 3DSC4-80-48-600
Max. Flow: 6.0m3/h, Max. Head: 42m, Model: 4DPC6-42-48-600

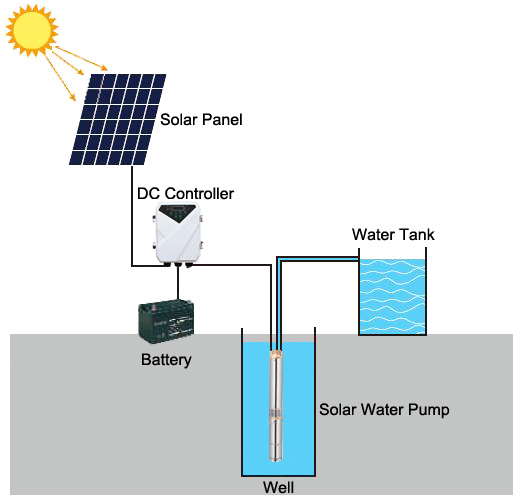

Solar water pump installation drawing:

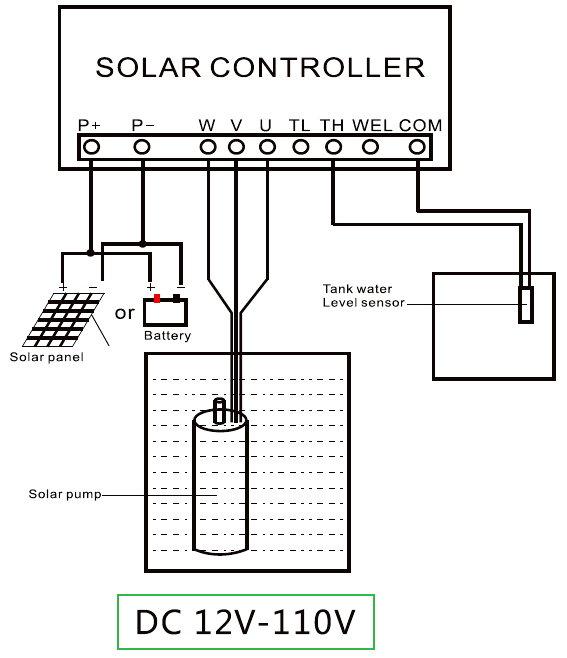

Solar water pump wiring diagram:
| Basics | SKU | HZTOHZ-SWP-48V600 | ||
| Shipping weight | 15kg | |||
| Cable length | 2m | |||

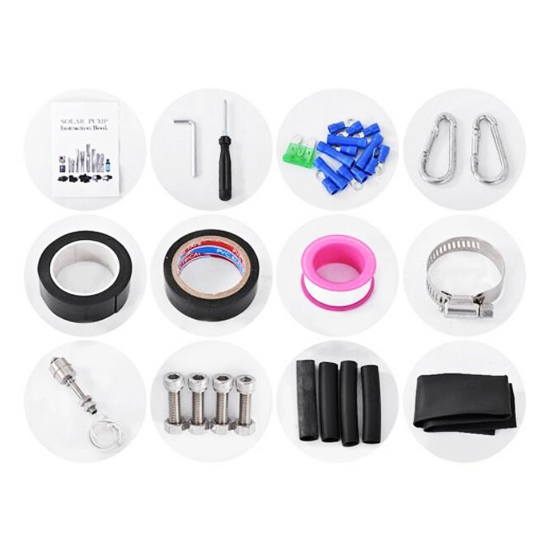

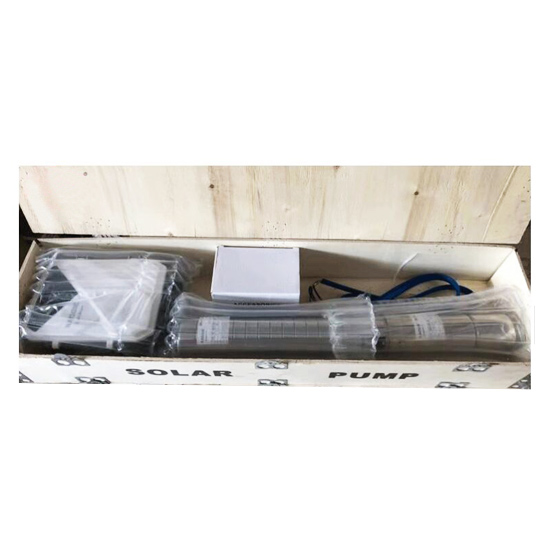

| Package included | 1 * Solar water pump 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual | |||
| Warranty | 2 years | |||
| Solar water pump features | Power | 600W | ||
| Voltage | 48V DC | |||
| Max. flow * | 3.5m3/h (800 gph, American system) | 4.0m3/h (1057 gph, American system) | 6.0m3/h (1585 gph, American system) | |
| Max. head * | 80m (260ft) | 80m (260ft) | 42m (135ft) | |
| Length | 60cm | 70cm | 50cm | |
| Inlet diameter | 3 inch | 3 inch | 4 inch | |
| Outlet diameter | 1.25 inch | 1.25 inch | 1.25 inch | |
| Structure | Single-suction plastic impeller | Single-suction stainless steel impeller | Single-suction plastic impeller | |
| Material of outlet/connector/oil cylinder | Brass | Stainless steel | Brass | |
| Model | 3DPC3.5-80-48-600 | 3DSC4-80-48-600 | 4DPC6-42-48-600 | |
| Internal motor | Brushless DC motor | |||
| Speed | 4000rpm | |||
| Material of shaft | 304 stainless steel | |||
| No water protection function | The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | |||
| Required open circuit voltage (VOC) of solar panel | ＜100V DC | |||
| Required power of solar panel | ≥1.3*pump power | |||
| Efficiency | 45% | |||
| Controller features | Model | DF-48 | ||
| Best MPPT voltage range | 60-90V DC | |||
| Max. input current | 15A | |||
| Working temperature | -15~+60℃ (5~140℉) | |||
| Display | LED display can show power, voltage, current and speed value. | |||
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection | |||
| Protection class | IP65 | |||
