1100W 72V DC Solar Water Pump
from
$821.07
Ex Tax: $821.07
- Stock: In Stock
- Model: HZTOHZ-SWP-72V1100
- Weight: 1.00
- SKU: HZTOHZ-SWP-72V1100

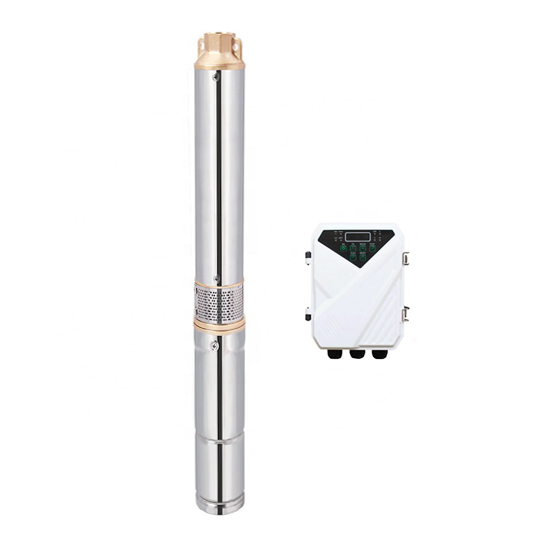

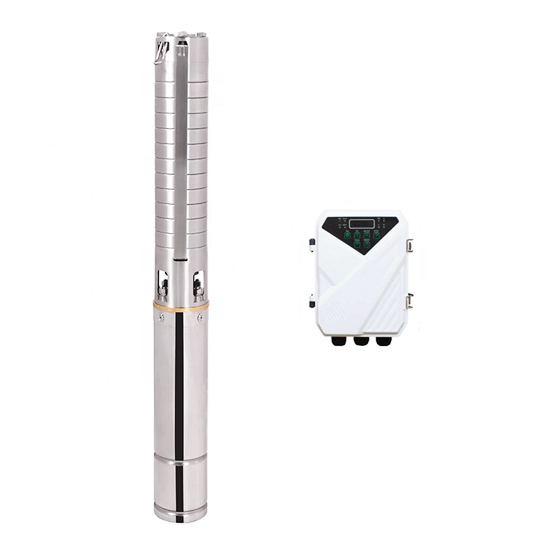

1100W solar water pump with DC controller, 72V working voltage, 1004~1268 gph max. flow, 110~123m max. head.

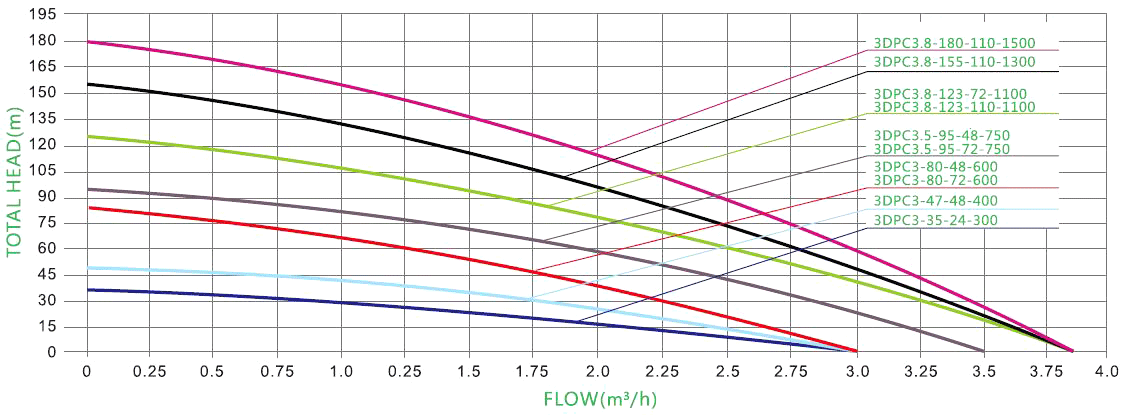

1100W 72V DC solar water pump performance curves:
Max. Flow: 3.8m3/h, Max. Head: 123m, Model: 3DPC3.8-123-72-1100
Max. Flow: 4.8m3/h, Max. Head: 110m, Model: 3DSC4.8-110-72-1100

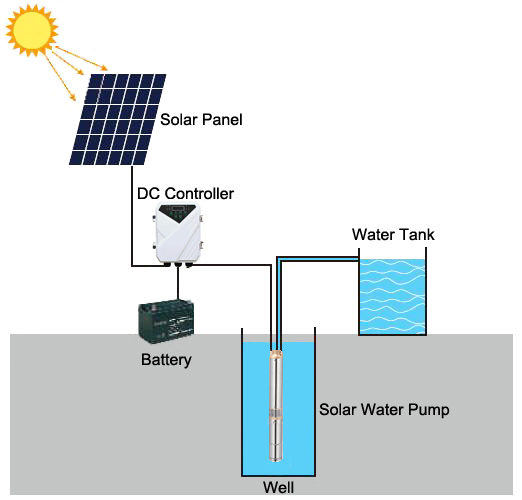

Solar water pump installation drawing:

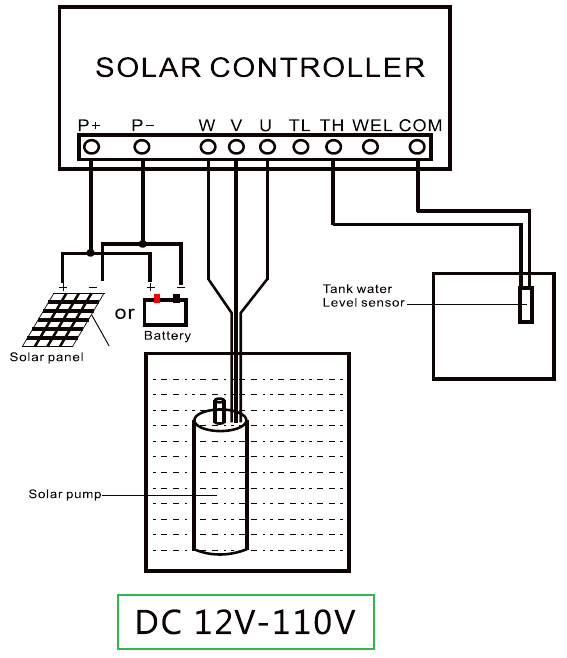

Solar water pump wiring diagram:
| Basics | SKU | HZTOHZ-SWP-72V1100 | |
| Shipping weight | 15kg | ||
| Cable length | 2m | ||

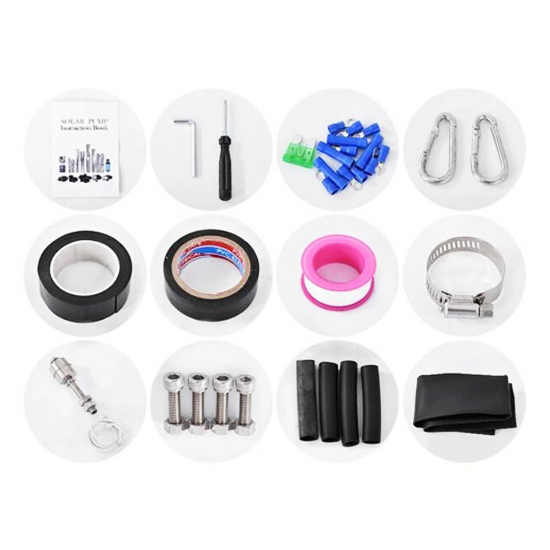

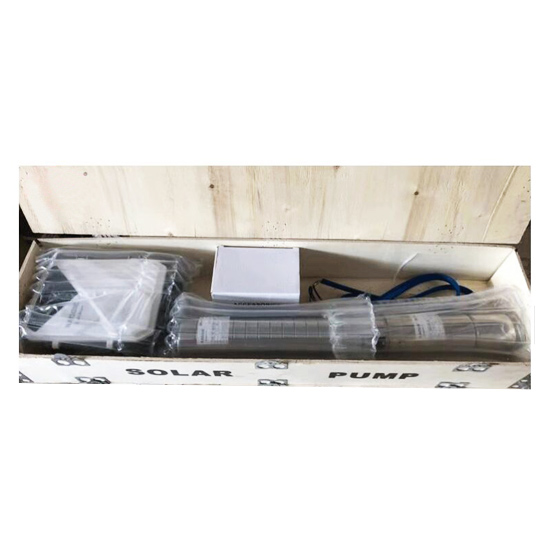

| Package included | 1 * Solar water pump with 2m cable 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual | ||
| Warranty | 2 years | ||
| Solar water pump features | Power | 1100W | |
| Voltage | 72V DC | ||
| Max. flow * | 3.8m3/h (1004 gph, American system) | 4.8m3/h (1268 gph, American system) | |
| Max. head * | 123m (400ft) | 110m (360ft) | |
| Impeller structure | Single-suction plastic impeller | Single-suction stainless steel impeller | |
| Material of outlet/connector/oil cylinder | Brass | Stainless steel | |
| Model | 3DPC3.8-123-72-1100 | 3DSC4.8-110-72-1100 | |
| Length | 80cm | ||
| Inlet diameter | 3 inch | ||
| Outlet diameter | 1.25 inch | ||
| Internal motor | Brushless DC motor | ||
| Speed | 4000rpm | ||
| Material of shaft | 304 stainless steel | ||
| No water protection function | The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | ||
| Required open circuit voltage (VOC) of solar panel | ＜150V DC | ||
| Required power of solar panel | ≥1.3*pump power | ||
| Efficiency | 45% | ||
| Controller features | Model | DF-72 | |
| Best MPPT voltage range | 90-120V DC | ||
| Max. input current | 15A | ||
| Working temperature | -15~+60℃ (5~140℉) | ||
| Display | LED display can show power, voltage, current and speed value. | ||
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection | ||
| Protection class | IP65 | ||
