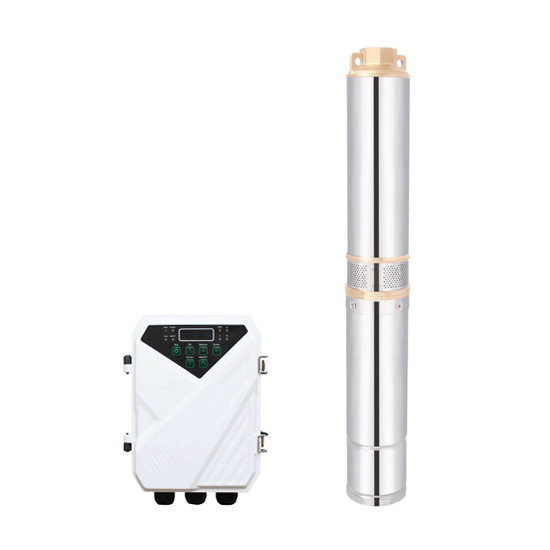

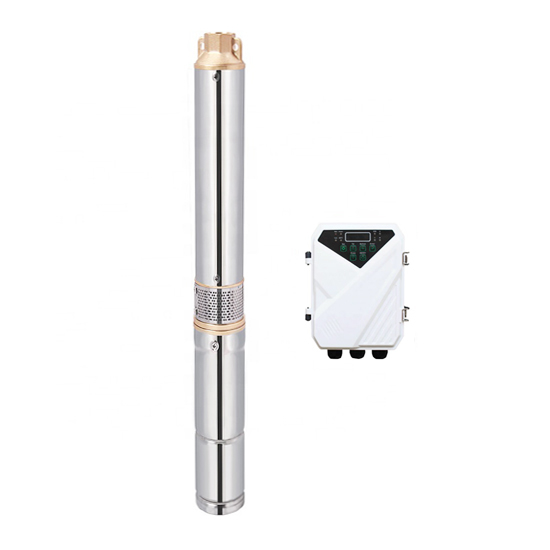

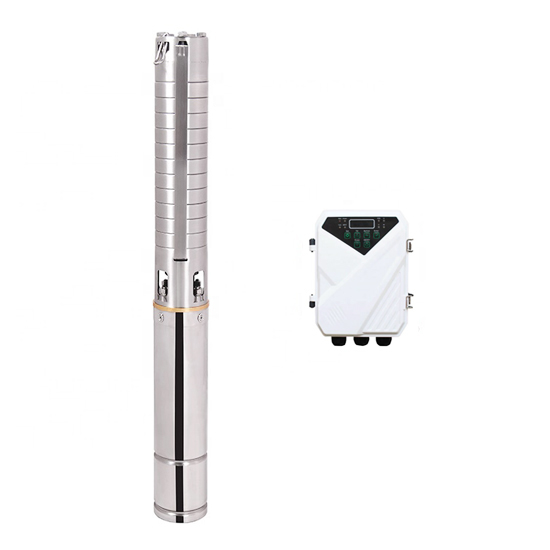

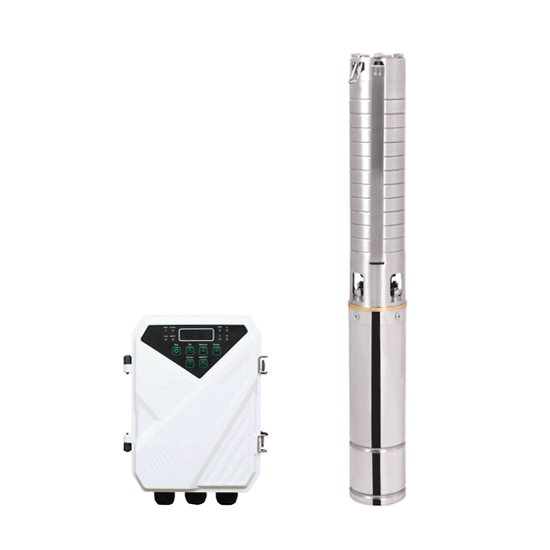

1500W 110V DC Solar Water Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-SWP-110V1500
- Weight: 1.00
- SKU: HZTOHZ-SWP-110V1500
1500W (2 hp) solar water pump with DC controller, 110V working voltage, 1000~5000 gph max. flow, 34~203m max. head.
Specifications:

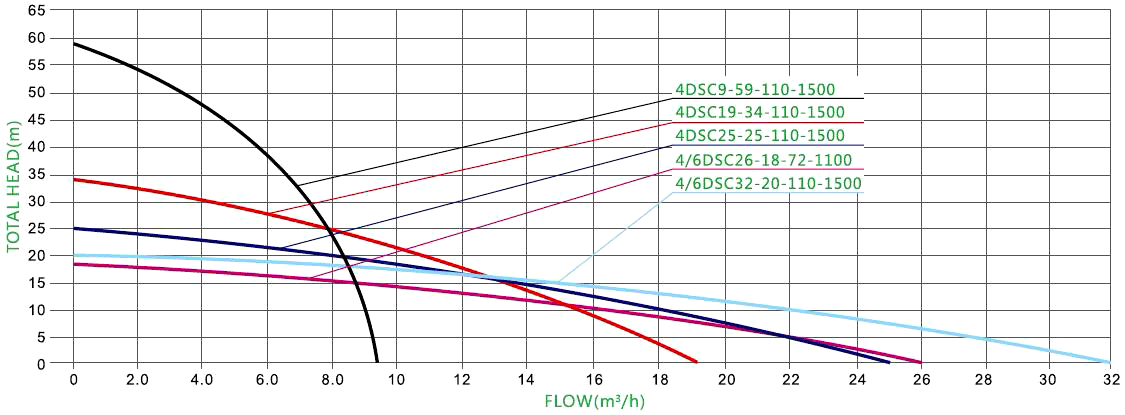

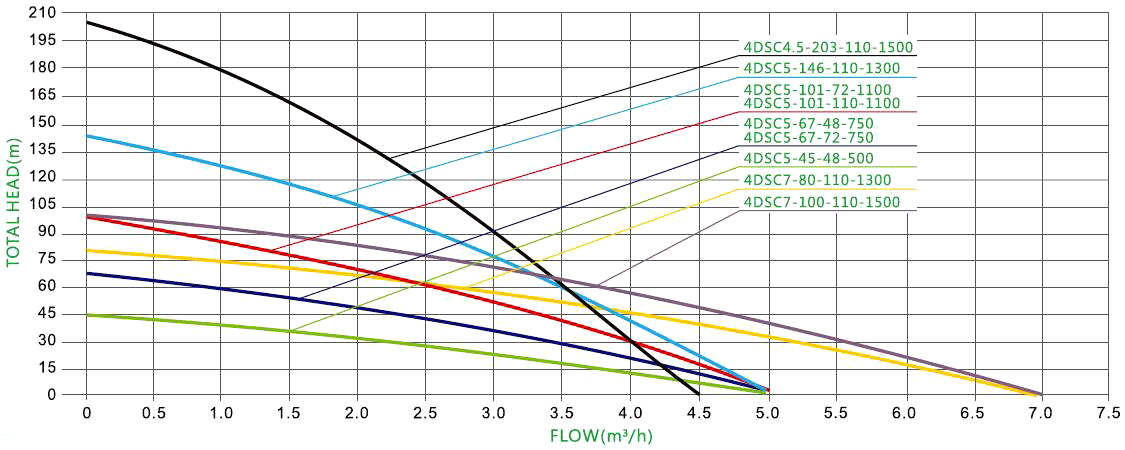

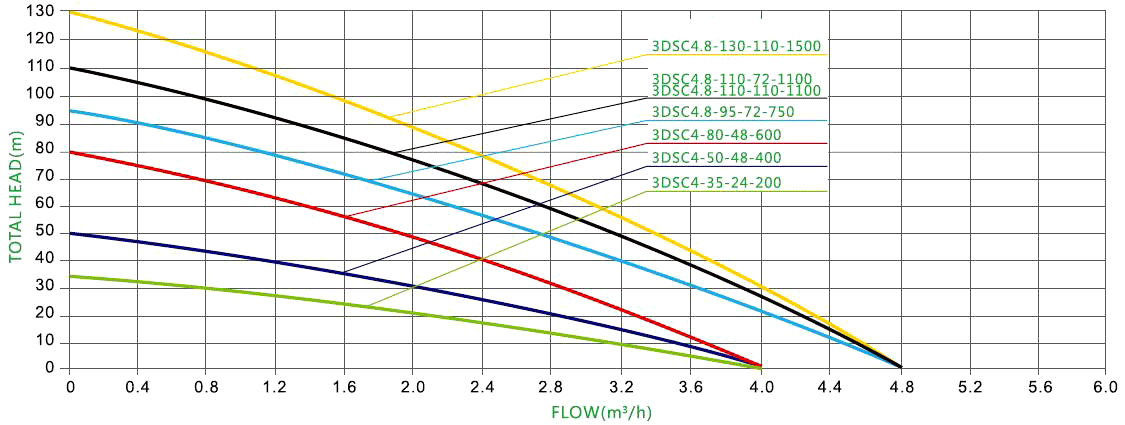

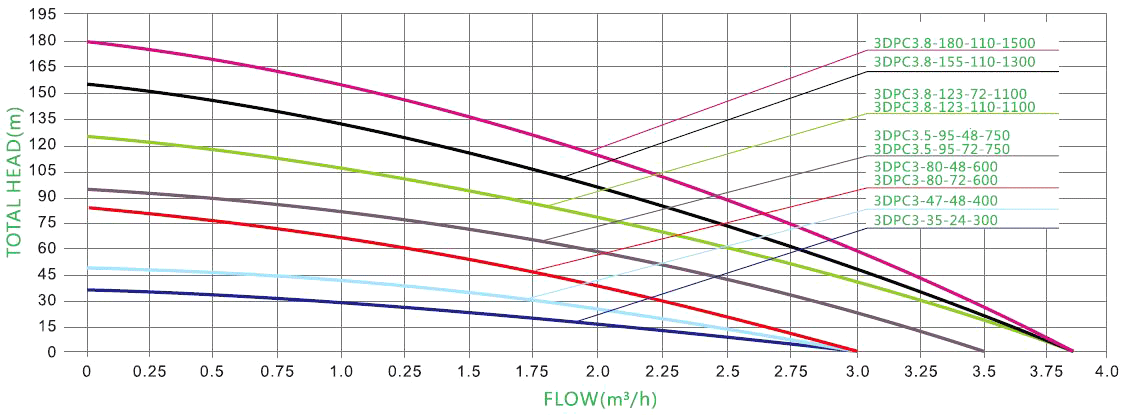

1500W 110V DC solar water pump performance curves:
Max. Flow: 3.8m3/h, Max. Head: 180m, Model: 3DPC3.8-180-110-1500
Max. Flow: 4.8m3/h, Max. Head: 130m, Model: 3DSC4.8-130-110-1500
Max. Flow: 6.0m3/h, Max. Head: 135m, Model: 4DPC6-135-110-1500
Max. Flow: 9.0m3/h, Max. Head: 71m, Model: 4DPC9-71-110-1500
Max. Flow: 13.0m3/h, Max. Head: 60m, Model: 4DPC13-60-110-1500
Max. Flow: 5.0m3/h, Max. Head: 146m, Model: 4DSC5-146-110-1500
Max. Flow: 4.5m3/h, Max. Head: 203m, Model: 4DSC4.5-203-110-1500
Max. Flow: 7.0m3/h, Max. Head: 100m, Model: 4DSC7-100-110-1500
Max. Flow: 9.0m3/h, Max. Head: 59m, Model: 4DSC9-59-110-1500
Max. Flow: 19.0m3/h, Max. Head: 34m, Model: 4DSC19-34-110-1500

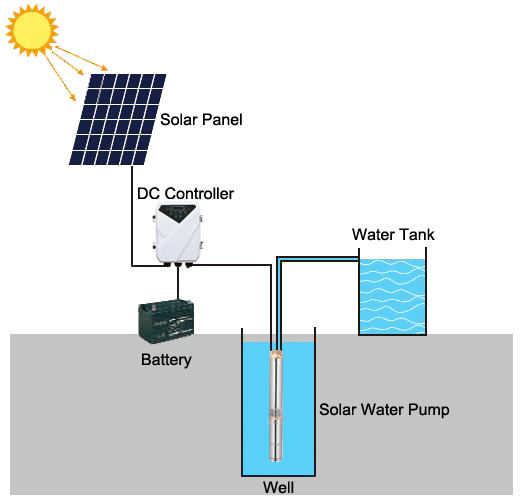

Solar water pump installation drawing:

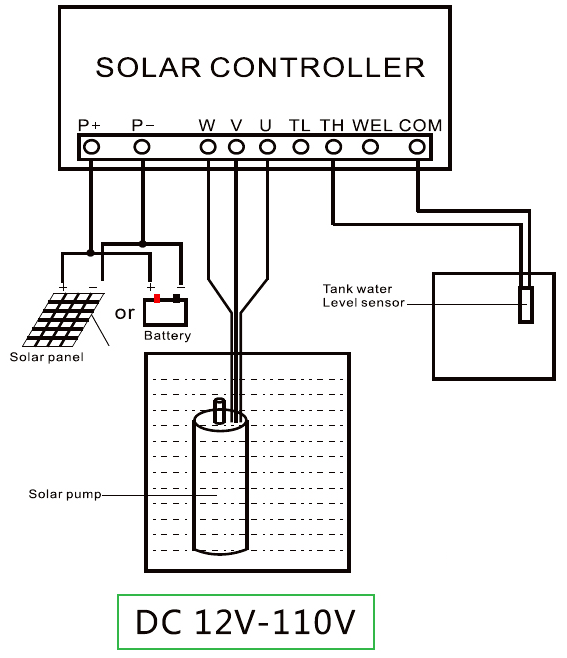

Solar water pump wiring diagram:
| Basics | SKU | HZTOHZ-SWP-110V1500 | ||||
| Shipping weight | 15kg | |||||
| Cable length | 2m | |||||

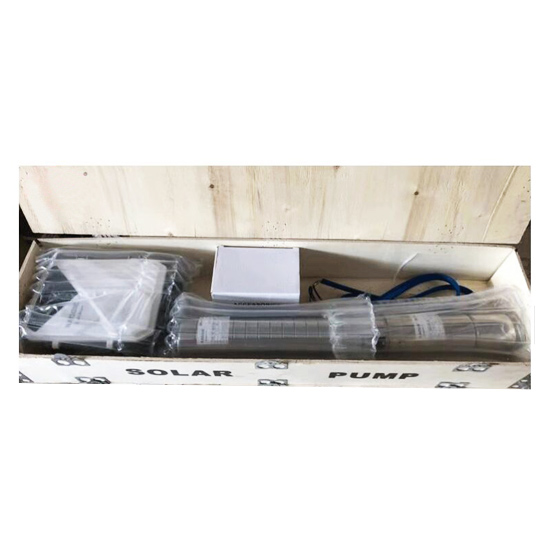

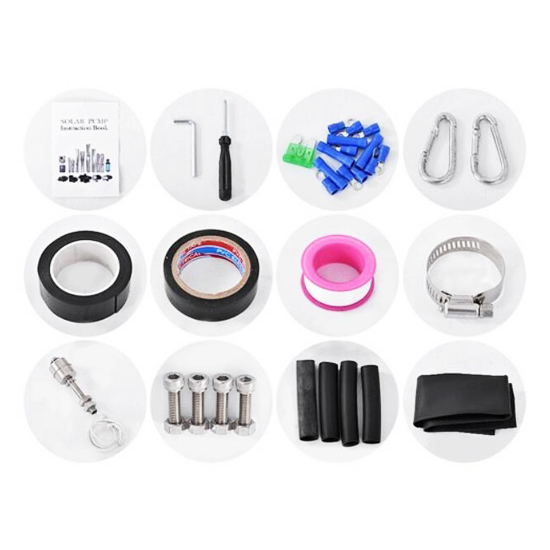

| Package included | 1 * Solar water pump 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual | |||||
| Warranty | 2 years | |||||
| Solar water pump features | Power | 1500W (2 hp) | ||||
| Voltage | 110V DC | |||||
| Max. flow * | 3.8m3/h (1004 gph) | 4.8m3/h (1268 gph) | 6.0m3/h (1585 gph) | 9.0m3/h (2378 gph) | 13.0m3/h (3434 gph) | |
| Max. head * | 180m (590ft) | 130m (425ft) | 135m (440ft) | 71m (230ft) | 60m (195ft) | |
| Inlet diameter | 3 inch | 3 inch | 4 inch | 4 inch | 4 inch | |
| Outlet diameter | 1.25 inch | 1.25 inch | 1.25 inch | 2 inch | 2 inch | |
| Length | 80cm | 80cm | 60cm | 60cm | 60cm | |
| Structure | Single-suction plastic impeller | Single-suction strainless steel impeller | Single-suction plastic impeller | Single-suction plastic impeller | Single-suction plastic impeller | |
| Material of outlet/connector/oil cylinder | Brass | Strainless steel | Brass | Brass | Brass | |
| Model | 3DPC3.8-180-110-1500 | 3DSC4.8-130-110-1500 | 4DPC6-135-110-1500 | 4DPC9-71-110-1500 | 4DPC13-60-110-1500 | |
| Max. flow * | 5.0m3/h (1321 gph) | 4.5m3/h (1189 gph) | 7.0m3/h (1849 gph) | 9.0m3/h (2376 gph) | 19.0m3/h (5019 gph) | |
| Max. head * | 146m (475ft) | 203m (665ft) | 100m (325ft) | 59m (190ft) | 34m (110ft) | |
| Inlet diameter | 4 inch | 4 inch | 4 inch | 4 inch | 4 inch | |
| Outlet diameter | 1.25 inch | 1.25 inch | 1.25 inch | 2 inch | 2 inch | |
| Length | 60cm | 60cm | 60cm | 60cm | 60cm | |
| Structure | Single-suction strainless steel impeller | Single-suction strainless steel impeller | Single-suction strainless steel impeller | Single-suction strainless steel impeller | Single-suction strainless steel impeller | |
| Material of outlet/connector/oil cylinder | Strainless steel | Strainless steel | Strainless steel | Strainless steel | Strainless steel | |
| Model | 4DSC5-146-110-1500 | 4DSC4.5-203-110-1500 | 4DSC7-100-110-1500 | 4DSC9-59-110-1500 | 4DSC19-34-110-1500 | |
| Internal motor | Brushless DC motor | |||||
| Speed | 4000rpm | |||||
| Material of shaft | 304 stainless steel | |||||
| No water protection function | The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | |||||
| Required open circuit voltage (VOC) of solar panel | ＜200V DC | |||||
| Required power of solar panel | ≥1.3*pump power | |||||
| Efficiency | 45% | |||||
| Controller features | Model | DF-110 | ||||
| Best MPPT voltage range | 110-150V DC | |||||
| Max. input current | 15A | |||||
| Working temperature | -15~+60℃ (5~140℉) | |||||
| Display | LED display can show power, voltage, current and speed value. | |||||
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection | |||||
| Protection class | IP65 | |||||
