4000 Watt Off Grid Solar Inverter Charger, 24V/48V
from
$1,410.31
Ex Tax: $1,410.31
- Stock: In Stock
- Model: HZTOHZ-OGI-4000
- Weight: 1.00
- SKU: HZTOHZ-OGI-4000
Quality and cheap solar off grid inverter/ inverter charger on inverter.com online store, which is 4000W (6000VA) power rating, converting 24V/ 48V DC to 110V/ 120V/ 220V/ 230V/ 240V AC. This low frequency inverter charger is perfect for most off grid systems. Grid off inverter often feature smart charging technologies and safety protections to ensure efficient and safe operation.
Features:
- Pure sine wave output for compatibility with loads of different types.
- Inverter charger has a mode of charging the battery from the AC supply with a charging capability of 0-30A.
- Visualization of operation status of the equipment through a digital LCD.
- Automatically transfer between battery and line modes. It enhances system performance, reliability, and user experience in off-grid applications.
- Pure sine wave output (THD < 3%) for a wide range of applications and harsh environment.
- A wide range of input voltage, accurate output and all automatic voltage stabilization, maximizing flexibility and efficiency.
- Overall protection functions: battery overvoltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection.
Details:

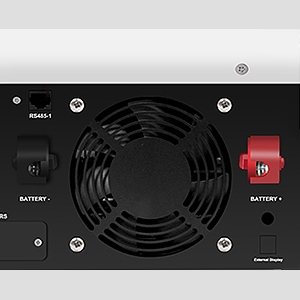

Battery Terminal
Battery positive terminal serves as the power input, receiving direct current (DC) from the battery bank. This connection enables efficient energy transfer from the battery to the inverter, supporting uninterrupted power supply. Conversely, the negative terminal completes the circuit, facilitating the flow of electrons from the battery to the off grid 4000 watt inverter.

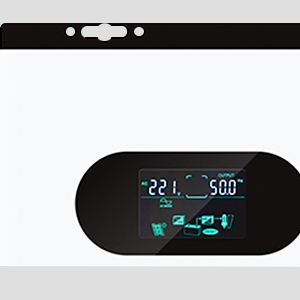

LCD Display
LCD display enhances user convenience by displaying clear, detailed information, reducing the need for external meters, and helping users diagnose and resolve issues quickly. In addition, its low power consumption ensures minimal impact on the efficiency of off grid solar inverter, making them ideal for off-grid applications.

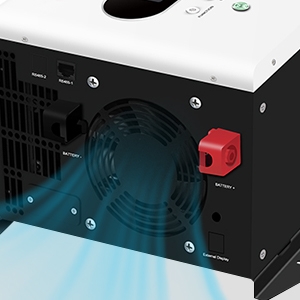

Cooling Fan
It prevents overheating, ensuring the inverter operates efficiently and extends its lifespan. By maintaining an optimal temperature, it reduces the risk of component failure and enhances reliability. Cooling fan also improves energy efficiency by allowing the pure sine wave off grid solar inverter to handle higher loads. Efficient cooling minimizes power loss and protects sensitive electronic components.

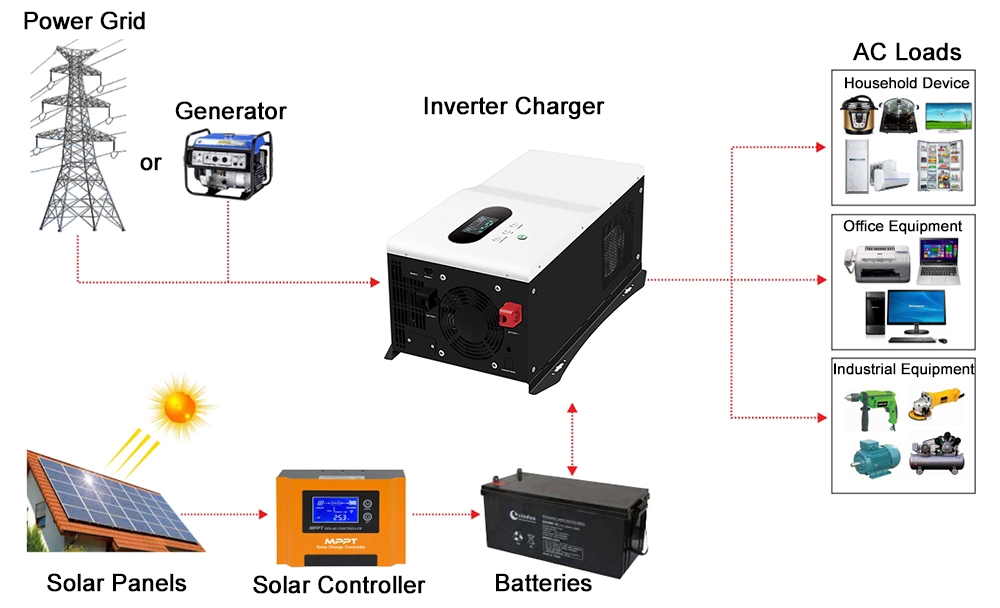

Off Grid Inverter for Solar Panel System:
| Model | HZTOHZ-OGI-4000 | |
| Rated power | 4000W | |
| Phase type | single phase | |
| Standard battery voltage | 24V/ 48VDC | |
| Battery type | Lead-acid / gel/ lithium battery / custom battery | |
| AC input | Rated input voltage | 110V/ 120V/ 220V/ 230V/ 240VAC |
| AC input voltage range | 80VAC-138VAC (110VAC)/ 95VAC-148VAC (120VAC)/ 170VAC-275VAC (220VAC)/ 180VAC-285VAC (230VAC)/ 190VAC-295VAC (240VAC) | |
| AC input frequency | 45Hz-55Hz (50Hz); 55Hz-65Hz (60Hz) | |
| AC output | output wave | pure sine wave |
| conversion efficiency (INV mode) | ＞85% | |
| output voltage/frequency (INV mode) | 110V/ 120V/ 220V/ 230V/ 240VAC±2%; 50/60Hz±1% | |
| Built-in controller MPPT (optional) | rated current | 100A |
| pv array max power | 24V(2800W)/ 48V(5600W) | |
| max pv input voltage(at the lowest temperature) | 12/24V system: 120VDC; 48V system: 180VDC | |
| Other | protection devices | battery undervoltage protection/ battery overvoltage protection/ overload power protection/ inverter output short circuit protection/ temperature protection |
| protection degree | IP20 | |
| display | LCD | |
| cooling method | cooling fan in intelligent control | |
| communication | RS485, APP(wifi monitoring or GPRS monitoring)optional | |
| working mode(settable) | battery priority/ maine priority | |
| operating remperature | -15℃~40℃ | |
| relative humidity | 0-95%, no condensation | |
| product size | 615*315*209mm (L*W*H) | |
| packing size | 680*365*280mm (L*W*H) | |
| N.W/G.W | 24kg/25.5kg | |
