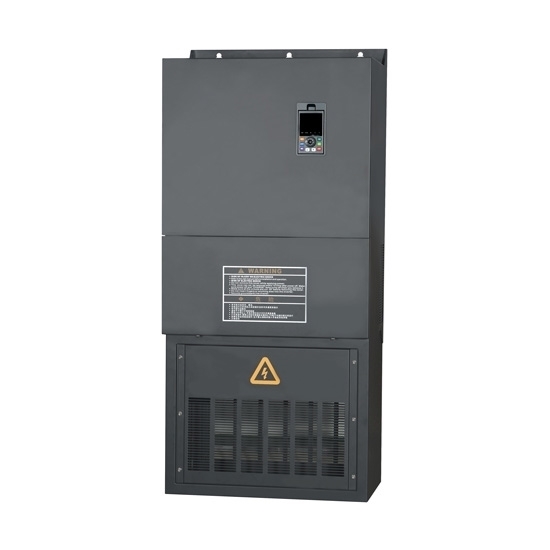

200 Hp (160 KW) VFD, 3 Phase 240V, 420V, 480V

200 Hp (160 KW) VFD, 3 Phase 240V, 420V, 480V
Free Shipping
200 Hp (160 KW) VFD, 3 Phase 240V, 420V, 480V
0 reviews • Write a review
from Save -4%
$6,979.36
$7,259.00
Ex Tax: $6,979.36
  • Stock: In Stock
  • Model: HZTOHZ-G59
  • Weight: 1.00
  • SKU: HZTOHZ-G59

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product

200 hp VFD, 160 kW heavy duty three phase 240V, 420V, 480V variable frequency drive.

Specification:

BasicsModelGK3000-4T1600G/ GK3000-2T1600G
Capacity200 hp (160 kW)
Shipping weight180 kg
Dimension1440*600*399 mm
I/O FeatureRated current304A at 380V ~ 480V, 585A at 220V ~ 240V
Input voltageThree phase 240V /420V /480V AC ±15% (Optional)
Input frequency50Hz/ 60Hz
Output voltageThree phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150 % of rated current for 1 minute, 200 % of rated current for 1 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: How does a VFD work?
The AC grid power is converted into DC and then the DC is converted back into AC via electronic gates at the cycles and voltage needed to make the AC motor run at the desired speed. The controlling of these gates is done with an electronic controller that is powered from the variable frequency drive (VFD) using a switcher power supply.

Variable Frequency Drives can be used for a variety of things when it comes to induction motors. Example: soft starting, torque control, speed adjustment etc. These VFDs are able to control the speed of an induction motor using the electrical frequency. This VFD is expensive but surely do a lot more than traditional motor starters, in terms of monitoring and more controls.
