15 Hp Horizontal Centrifugal Pump
from
$3,492.73
Ex Tax: $3,492.73
- Stock: In Stock
- Model: HZTOHZ-HCP-011KW
- Weight: 1.00
- SKU: HZTOHZ-HCP-011KW

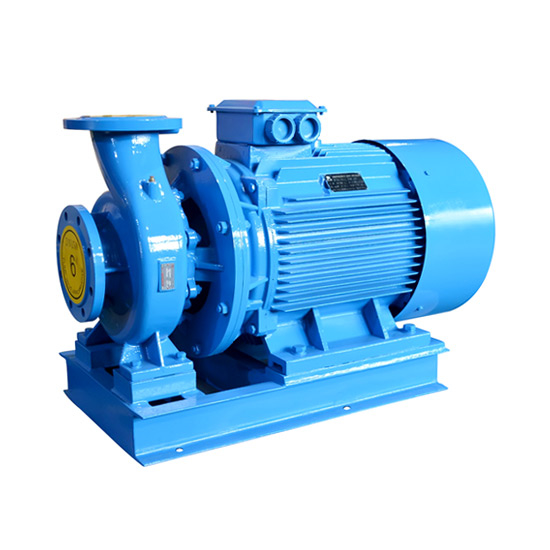

15 hp horizontal centrifugal pump with 16.3m3/h maximum flow, 81.2m maximum head, and 40mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-40-250I | ||
| Weight | 180kg | ||
| Size | 500*790*340mm | ||
| Power | 15 hp (11kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 8.8m3/h (38.7 gpm, American system) | 12.5m3/h (55 gpm, American system) | 16.3m3/h (71.8 gpm, American system) |
| Head (max. head to min. head) | 81.2m (266ft) | 80m (262ft) | 77.5m (254ft) |
| Efficiency | 31% | 38% | 40% |
| Inlet diameter | 40mm (1-1/2 inch) | ||
| Outlet diameter | 40mm (1-1/2 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 250mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

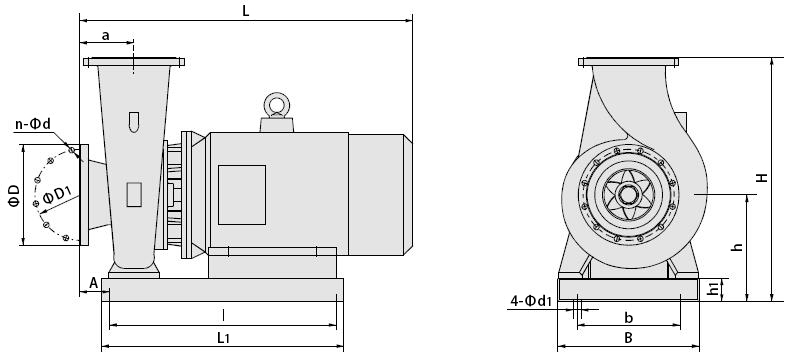

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 280 | 500 | 790 | 100 | 65 | 560 | 340 | 510 | 240 | 100 | 4-Φ18 | Φ150 | Φ110 | 4-Φ18 |
Tips: Centrifugal pump troubleshooting - motor current is too high
- Reason 1: The power of the supporting motor is too small. The solution: adjust the supporting motor and replace the motor.
- Reason 2: The revolving speed of the water pump is too high. The solution: reduce the revolving speed of the water pump.
- Reason 3: The pump shaft is bent, and the bearing is worn or damaged. The solution: correct the straightening of the pump shaft and repair or replace the bearing.
- Reason 4: The stuffing is compressed too tightly. The solution: Release the stuffing gland.
- Reason 5: In practical operation, the head is much lower than the pump head, causing a too high flow rate. The solution: Turn down the outlet valve and control the water pump flow rate.
- Reason 6: The coupling is not concentric, or the clearance between the couplings is too small. The solution: Correct the concentricity or adjust the clearance between the couplings.
- Reason 7: The pump has been stopped for a too-long period, thus causing heat expansion. The solution: implement the normal operation procedure and stop immediately for inspection in case of a fault.
- Reason 8: The motor is wetted because of being dipped in water. The solution: dry the wet motor.
