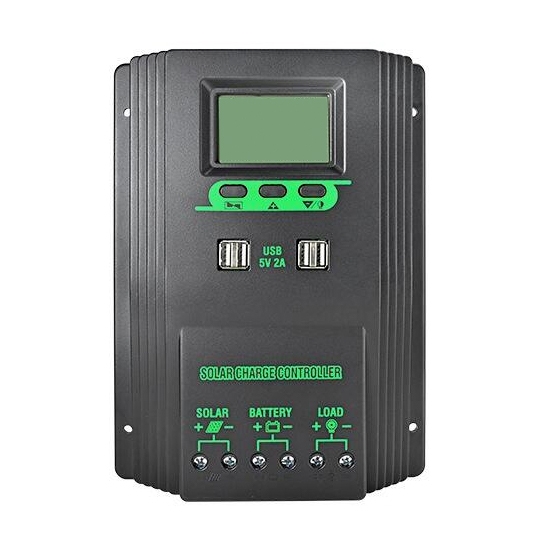

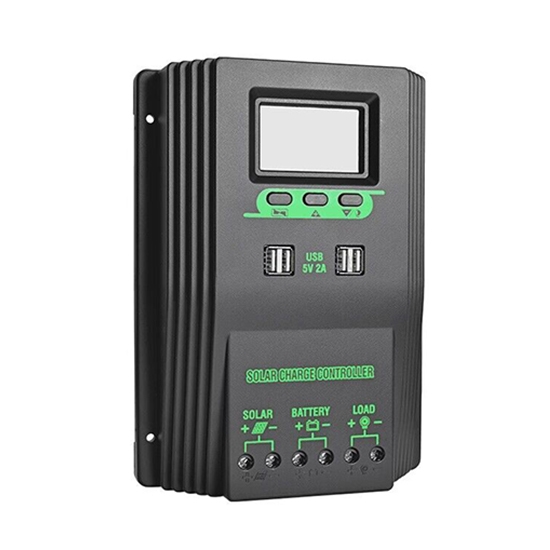

80A 12V/24V/48V PWM Solar Charge Controller
from
$115.19
Ex Tax: $115.19
- Stock: In Stock
- Model: HZTOHZ-PWM-CP-M80
- Weight: 1.00
- SKU: HZTOHZ-PWM-CP-M80
An 80A PWM (Pulse Width Modulation) solar charge controller regulates the charging of batteries from solar panels, ensuring efficient energy transfer and preventing overcharging. The "80A" refers to the controller's maximum current capacity, meaning it can handle up to 80 amps of current from the solar panels. PWM technology gradually reduces the power supplied to the batteries as they near full charge, ensuring a longer battery life and improved efficiency. These PWM charge controllers are typically used in medium to large solar power systems, where maintaining the health of batteries is crucial.
Features:
- Simple design and installation. Typically easy to install and use, with straightforward connections between the solar panel, battery, and load.
- Multiple protection. This solar charge controller has short circuit protection, current limiting, and power limiting protection.
- Adapted to multiple battery types. 80 amp PWM charge controller supports battery types such as lead-acid batteries, colloidal batteries, lithium batteries, outdoor power supplies, etc.
- Pulse width modulation (PWM) technique. PWM technology uses a constant connection between the solar panels and the battery, with the voltage being reduced as the battery nears full charge, which reduces power losses.
Details:

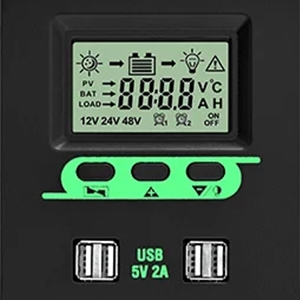

LCD Display
It provides real-time monitoring of critical system parameters like voltage, current, and battery charge status, allowing for easy tracking and management. This visibility enhances 80A PWM charge controller system efficiency by enabling timely adjustments. LCD display also helps in diagnosing issues, reducing troubleshooting time. Additionally, it can show error messages or alerts, ensuring better protection for connected equipment.

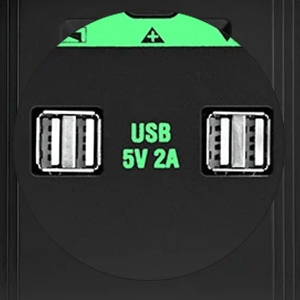

Dual USB Charging Ports
It can charge two devices at once (supports most usb port devices), enhancing convenience for users with multiple gadgets. Additionally, having dual ports can provide a backup option in case one port fails, increasing reliability and versatility for various charging needs. This reduces reliance on additional power sources and enhances convenience.

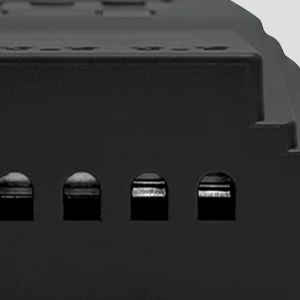

Large Cross-section
A large cross-section in a 80 amp PWM solar charge controller reduces electrical resistance, minimizing power loss and heat generation in the wiring. This ensures more efficient energy transfer from the solar panels to the battery, improving overall system efficiency. Additionally, it allows for higher current handling, which is particularly beneficial in systems with higher power outputs.

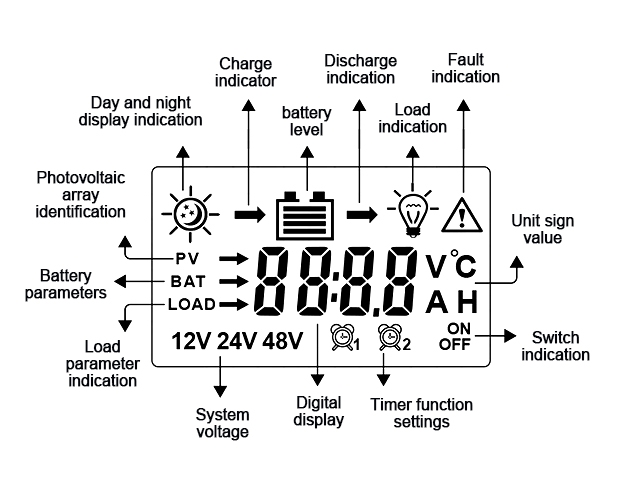

PWM Charge Controller Interface Introduction:

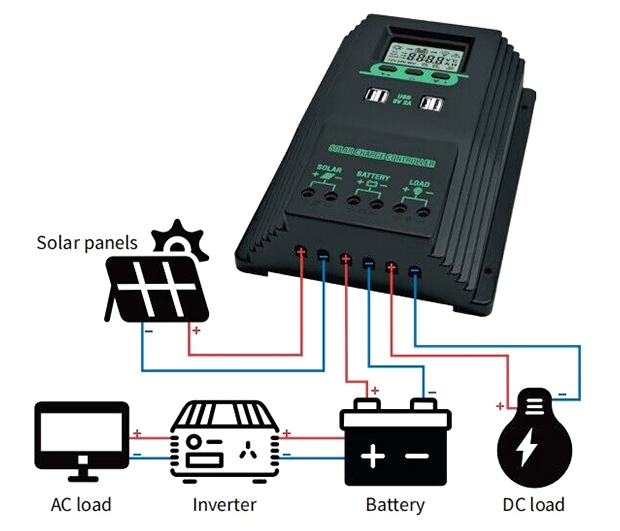

80A PWM Solar Charge Controller Wiring Diagram:
Applications:

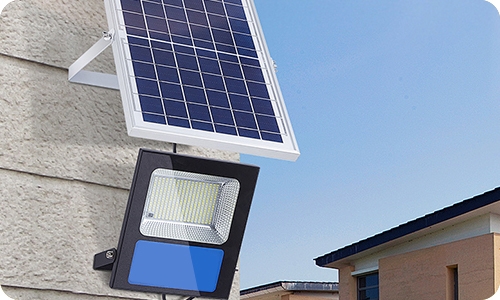

Solar illuminating light

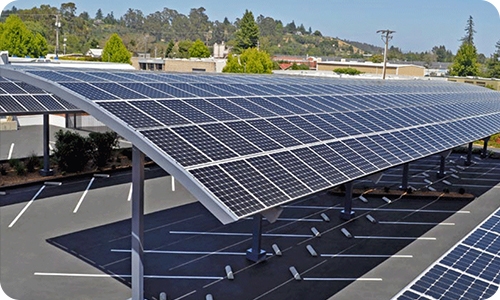

Solar Awning
Solar Monitor

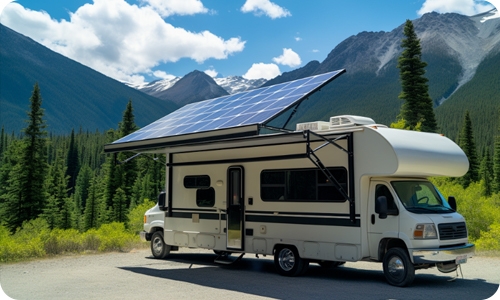

Solar RV
| Model | HZTOHZ-PWM-CP-M80 |
| System voltage | 12V/24V/48V self-identification |
| Load loss | ≤12mA |
| Solar maximum input voltage | 100V VOC |
| Battery voltage | 9-32V |
| Maximum power voltage range | storage battery voltage +2V~100V |
| Rated charging current | 80A |
| USB output | 5V/1A |
| Discharge current | 40A |
| Waterproof level | IP32 |
| Operating temperature | -20 ℃~55 ℃ |
| Terminal scale | 28-6AWG |
| Overload current protection | yes, restart again in two minutes |
| Net weight | 790g |
| Product size | 234x175x65 mm |
