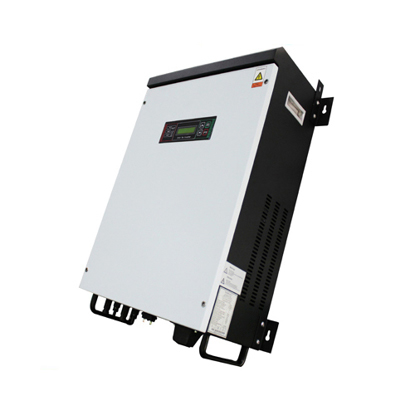

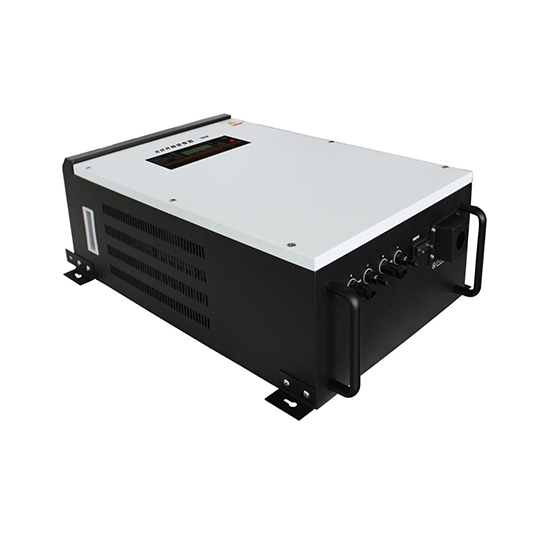

8000W Single Phase Grid Tie Solar Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product

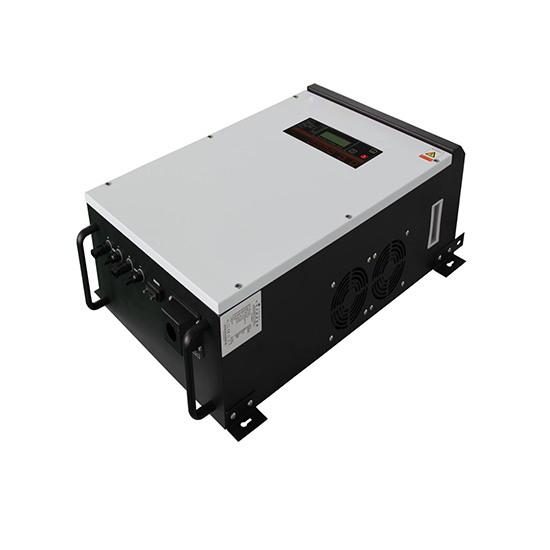

8000W Single Phase Grid Tie Solar Inverter
from
$1,942.29
Ex Tax: $1,942.29
- Stock: In Stock
- Model: HZTOHZ-GTI-TL8000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TL8000
Single phase 8000 watt sine wave on grid inverter operates at 50Hz / 60Hz low frequency, transformerless design, with wide input voltage 180-500V DC and output 230V/ 240V (190-270) AC. IP65 protection degree of 240-volt grid tie inverter, creative MPPT tech makes efficiency higher than 99%, ensuring efficient energy production and seamless integration with the existing electrical infrastructure. It is a perfect solution for grid tied solar power system.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- On grid inverter adopts no isolation transformer H6 full-bridge configuration, with the highest efficiency reaching 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

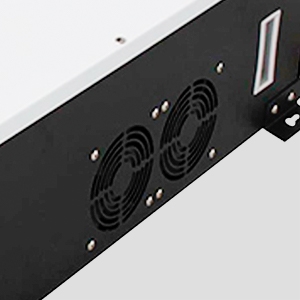

Cooling Fan
It enhances heat dissipation, ensuring the 8kW grid tie inverter operates within optimal temperature ranges, which prolongs its lifespan. Effective cooling prevents thermal shutdowns and maintains consistent performance, especially under heavy load or high ambient temperatures. Additionally, it reduces the risk of overheating-related damage to sensitive components, thus lowering maintenance costs and downtime.

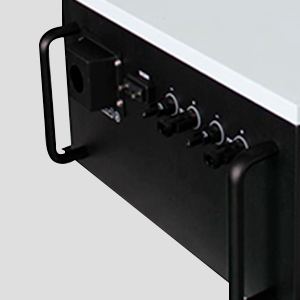

RS232 Interface
It provides a reliable and straightforward method for communication and data exchange with external devices like computers and monitoring systems. This interface supports long-distance communication and is cost-effective due to its widespread use and availability. RS232 allows for easy integration with various software for system diagnostics, real-time monitoring, and performance logging of 8 kW grid tied pv inverter.

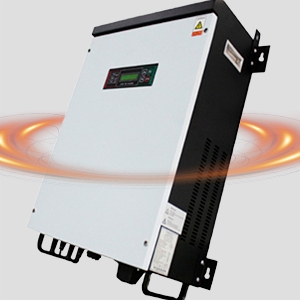

MPPT Technology
This ensures maximum efficiency and energy yield, even under varying weather conditions. MPPT enhances overall grid tie power inverter system performance, leading to higher electricity production. It also helps maintain grid stability and reduce losses associated with power conversion, extending the lifespan of PV systems by preventing overloading and underutilization of the panels.
Applications:

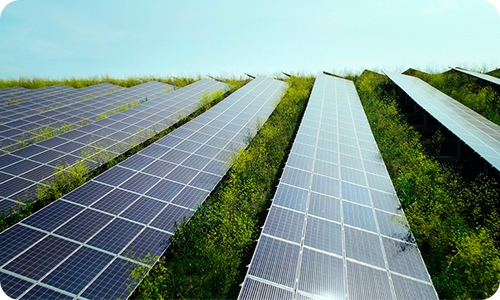

Solar Farm
Remote Location
Battery Power
Rural Electrification
| MODEL | HZTOHZ-GTI-TL8000 | |||||
| DC INPUT | Max. DC Input Power | 8700 watt | ||||
| Max. DC Input Voltage | 500V DC | |||||
| Max. DC Input Current | 43A | |||||
| MPPT Tracking Voltage Range | 180-500V | |||||
| MPPT Tracking Number / Each Input String Number | 1/2 | |||||
| Power ON / OFF Voltage | 200V / 100V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 8000W | ||||
| Output Range | Single phase AC 190~270V Adjustable according to different countries and regions' requirements. | |||||
| Rated Voltage | L+N+PE 220V/ 230V/ 240V AC | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | Single phase (L1+L2) / Spilt phase (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC | |||||
| Power Factor | 1 | |||||
| Maximum Current | 36A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 97% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP20 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | 0W | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | The size of the inverter is different due to different specifications, please contact us to confirm. | ||||
| Weight | Single phase version: 58kg, split phase version: 116kg | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
