4 KW Solar Pump Inverter, DC/AC Input To 1ph AC Output
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product

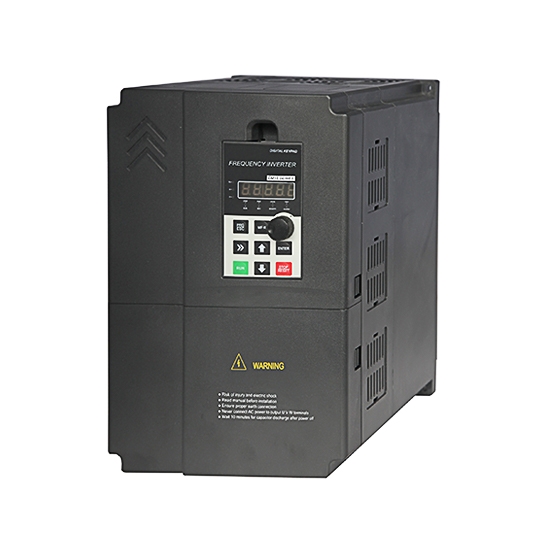

4 KW Solar Pump Inverter, DC/AC Input To 1ph AC Output
from
$432.08
Ex Tax: $432.08
- Stock: In Stock
- Model: GK330-SP1S-004
- Weight: 1.00
- SKU: GK330-SP1S-004
Good performance 4 kW solar pump inverter, using advanced Maximum Power Point Tracking control technology, real-time detection of solar panels power voltage. No condensation when the RH(Relative Humidity) is less than 95%, and the cooling mode is forced air cooling. The solar pump drive is widely applied in urban water, livestock water, and agricultural irrigation.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself from trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
The cost-effective and advanced 4 kW solar pump inverter's high-density vents dissipate heat superbly, ensuring stable operation in high-temperature environments. DC powerful heat sink, silent operation, effectively reducing the heat generated by using the inverter, intelligent start-stop control. The design of independent air ducts can form an airtight space, effectively preventing dust and water mist from entering the circuit board part.

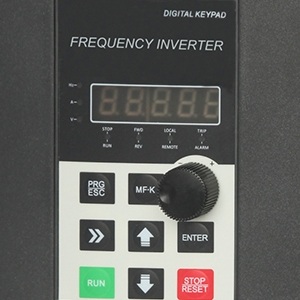

Digital Keypad
The solar pump inverter has an at-a-glance numeric digital keypad that can easily control the inverter's start, stop, as well as accelerate functions. Anyone who uses it can set the working parameters of the inverter and adjust the output frequency to control the running speed of the 4 kW solar pump through simple key operation. The numeric keypad design is intuitive, making the operation of the solar pump system more efficient and convenient.

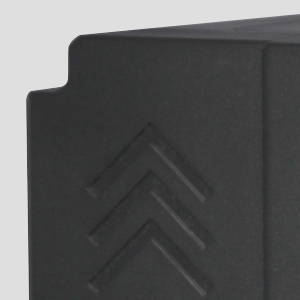

Rugged Casing
The top-performing and advanced 4kW solar variable frequency drive for pumps is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, corrosion-resistant facts, effective insulation against moisture and dust, stable operation, reliability, and safety. It not only protects the circuit and electronic parts inside the equipment but also ensures the PV pump inverter's safety, stability, and reliability, capably extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 4D0 | Adaptable motor power: 4D0 (4KW) |
| Model | SP1S-004 |
| Rated power | 4kW |
| Voltage input | DC 250~400 (V), AC 200~240 (V) at 1-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 120V |
| Max. DC voltage | 480V |
| Recommended MPPT range | 250~400(V) |
| AC output current | 13A at 1-phase 220V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~ 50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
