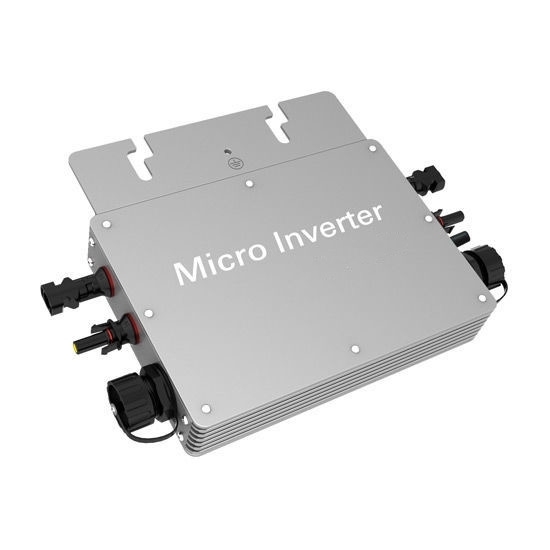

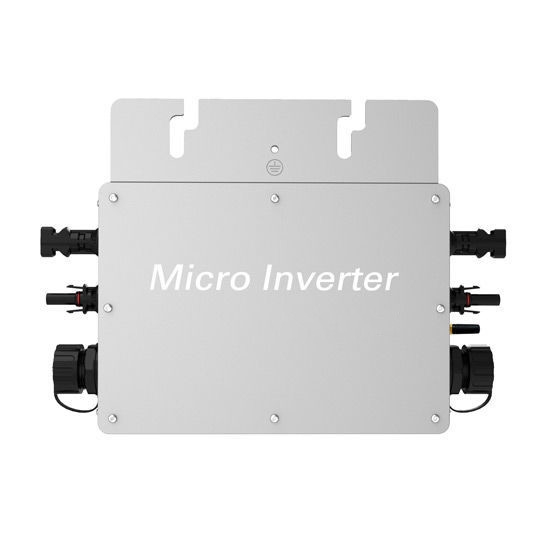

800 Watt Solar Micro Inverter, Grid-tie Inverter
from
$295.26
Ex Tax: $295.26
- Stock: In Stock
- Model: HZTOHZ-WVC-800
- Weight: 1.00
- SKU: HZTOHZ-WVC-800
800W grid tie solar inverter, smart micro inverter with wide input and output range, max 2x500W maximum input power, 800VA output power, 22~60V working voltage range, and 120V AC or 230V AC output range. Unlike a traditional string inverter, which handles the output of multiple solar panels, a PV micro inverter is installed on each solar panel. MPPT function for effectively capturing and collecting sunlight, more reliable and stable.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wireless 433MHz communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

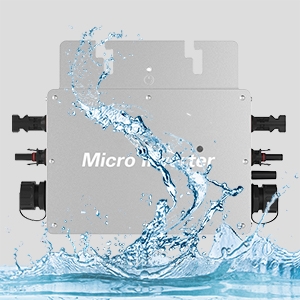

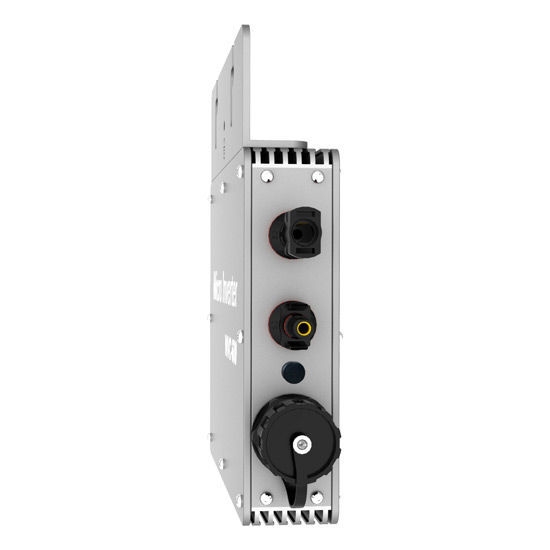

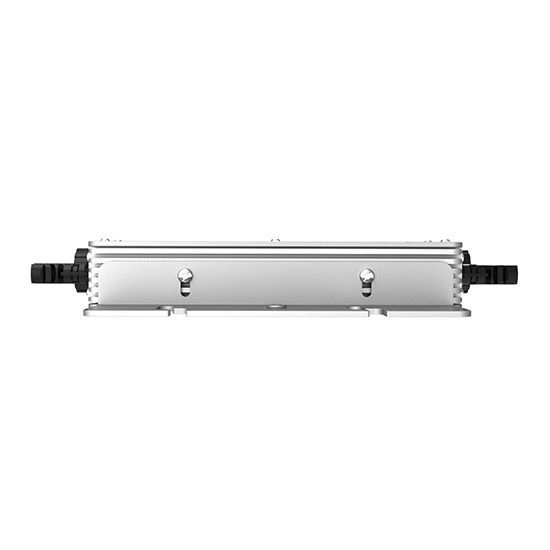

Waterproof Protection
The shell of the smart micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

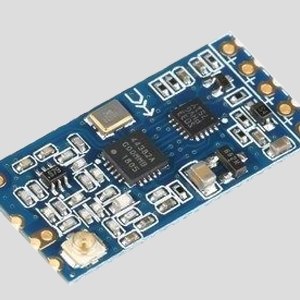

Communication Mode
433MHz communication code in grid tie micro inverter offers advantages like longer range, lower power consumption, and reduced interference. It ensures reliable communication between the micro inverter and the monitoring system, enhancing efficiency and performance in a distributed energy system.
Power Chip
The 800W micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

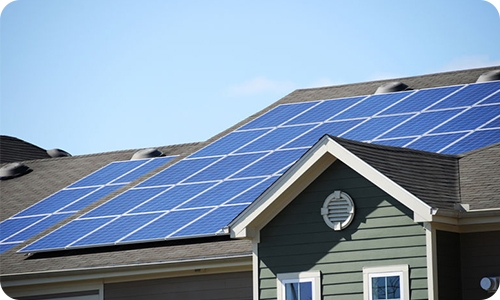

Solar Roof

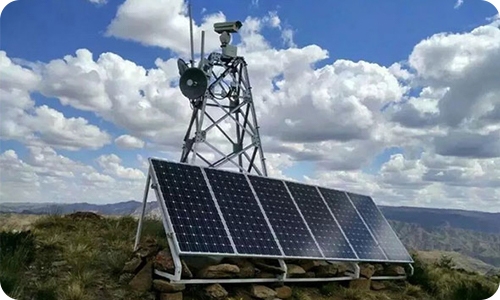

PV Communication Station

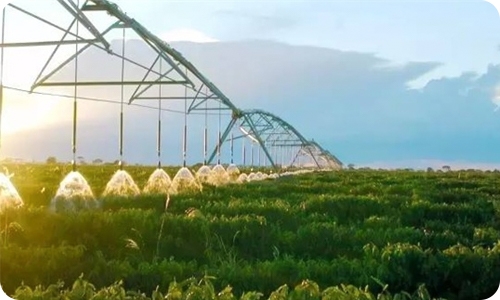

Farming Generation System

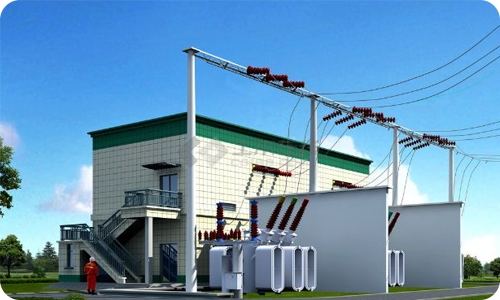

Small Power Station
| Model | HZTOHZ-WVC-800 |
| DC Input | |
| Maximum Input Power | Max 2x500W |
| MPPT Voltage Range | 30~60 V |
| Starting Voltage | 220V DC |
| Working Voltage Range | 22~60V DC |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 2x18A |
| Maximum Input Short Circuit Current | 2X20A |
| Maximum Feedback Current of the Array | 0A |
| AC Output | |
| Maximum Output Power | 800VA |
| Rated Output Current | 6.6A (120V), 3.5A (230V) |
| Nominal Output Voltage Range | 120V AC (Application Area: Japan, North America, etc.) |
| 230V AC (Application Area: Europe) | |
| Nominal Frequency Range | 50Hz/60Hz |
| Power Factor | ＞0.99 Default, 0.95 Leading...0.95 Lagging |
| Harmonic Distortion Of Output Current | ＜3% |
| Maximum Number Of Connections Per Branch | 6 PCs（120V）, 12PCs (230V) |
| Efficiency, Safety, and Protection | |
| Peak Microinverter Efficiency | 92.70% |
| CEC Weighted Efficiency | 92.50% |
| Nominal MPPT Efficiency | 99.80% |
| Night Power Consumption (mW) | 0 |
| Mechanical Data | |
| Ambient Temperature Range | -20 to +50°C |
| Storage Temperature Range | -20 to +50°C |
| Dimensions (LxWxH) | 283x200x41.6mm |
| Weight | 3kg |
| Waterproof Level | Outdoor Nema 3r (IP65) |
| Cooling Method | Natural Convection (No Fans) |
| Degree of Pollution | PD3 |
| Features | |
| Power Delivery Mode | Reverse Transmission, Load Priority |
| Communication Method | WiFi |

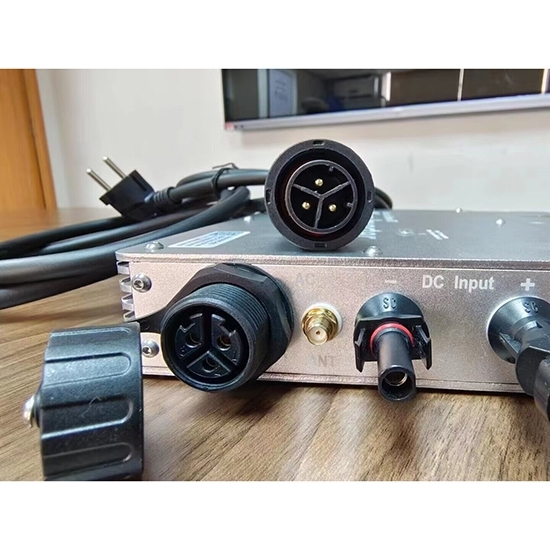

| Connecting cable and plug | Comes standard with a 3m connecting cable and plug (European standard), if you need a longer cable or other size plug, please contact us. |
| Surveillance System | Smart Life |
| Warranty | 5 Years |
| Electrical Standard | EN 50549-1:2019, EN 50549-2:2019, EN 61000-6- 1:2007, EN 61000-6-3:2007+A1:2011+AC2012, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011 |
