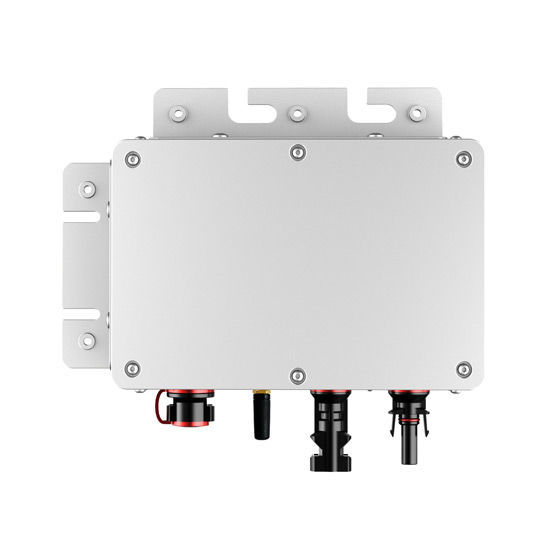

300 Watt Solar Micro Inverter, Grid-tie Inverter
from
$217.29
Ex Tax: $217.29
- Stock: In Stock
- Model: HZTOHZ-WVC-300-WiFi
- Weight: 1.00
- SKU: HZTOHZ-WVC-300-WiFi
300W MPPT solar grid tie inverter, micro inverter for sale, IP65 waterproof class, effectively prevent rainwater from eroding the surface. It adopts reverse efficient power transmission technology. Extra electricity is transmitted to the grid. Efficient use of the inverter to the power emitted. The AC output can be automatically switched to 120V or 230V according to the local grid voltage.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wireless 433MHz communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

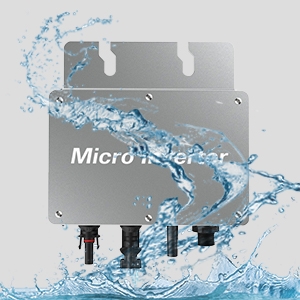

Waterproof Protection
The shell of the micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

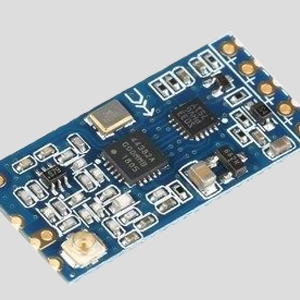

Communication Mode
433MHz communication code in 300-watt micro inverter offers advantages like longer range, lower power consumption, and reduced interference. It ensures reliable communication between the micro inverter and the monitoring system, enhancing efficiency and performance in a distributed energy system.
Power Chip
The pv micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

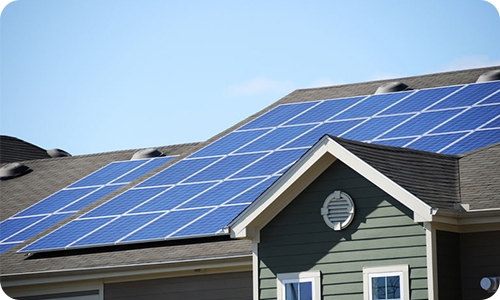

Solar Roof

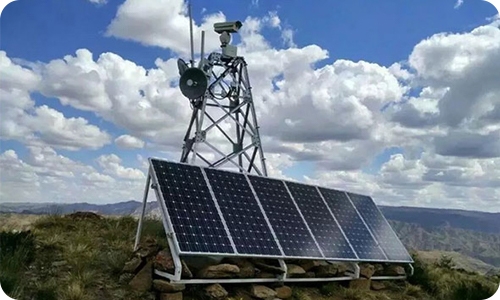

PV Communication Station

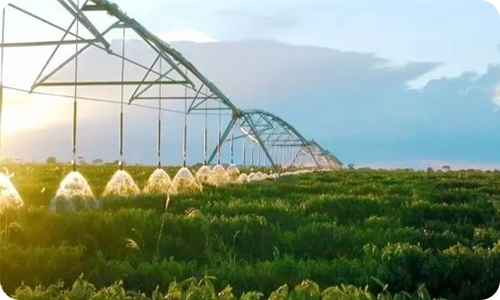

Farming Generation System

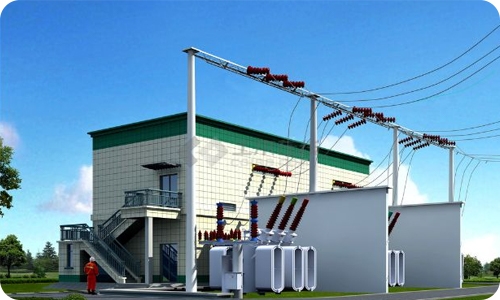

Small Power Station
Model | HZTOHZ-WVC-300-WiFi | ||||
Maximum input power | 360 watt | ||||
Output voltage mode | 120/230V Auto switch | ||||
PV Open circuit voltage | 30-60VOC | ||||
Operating voltage range | 24V/48V DC, range: 22-60V DC | ||||
Starting voltage range | 22-60V DC | ||||
Short-circuit current | 14A | ||||
Maximum working current | 11.5A | ||||
| Output Parameters | @120V AC | @230V AC | |||
Output peak power | 360 watt | 360 watt | |||
Rated output power | 300W | 300W | |||
Output current | 2.5A | 1.3A | |||
AC voltage range | 80-160V AC | 180-260V AC | |||
AC frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | |||
Power factor | >95% | >95% | |||
| Number of branch connections | 15PCS (single-phase) | 30PCS (single-phase) | |||
| Output Efficiency | @120V AC | @230V AC | |||
| Static MPPT efficiency | 99.5% | 99.5% | |||
Max output efficiency | 95% | 95% | |||
Loss of power at night | <> | <> | |||
Total current harmonics | <> | <> | |||
Appearance and technical features | |||||
Temperature range | -40℃ to +65℃ | ||||
| Dimensions (WxHxD) | 165mm×176mm×38mm | ||||
Net amount | 0.8kg | ||||
Waterproof grade | IP65 NEMA3R | ||||
Heat dissipation mode | Self-cooling | ||||
| Communication Mode | WiFi | ||||
| WIFI Connection | iOS / Android (Monitor power generation, DC input & AC output display, etc.) | ||||
| 433MHz Data Collector | Monitor 30 inverters simultaneously | ||||
| Power transmission mode | Reverse transmission, Load priority | ||||
| Monitoring System | Browser | ||||
| Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | ||||
Power grid | EN61000-3-2 EN62109.UL STD.1741 | ||||
Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | ||||
| Certificate | CEC, CE, INMETOR, ETL, Patented technology | ||||
| Warranty period | 12 months | ||||
Packing weight | |||||
Weight | 1ＫG | ||||
Size | 245×202×60mm | ||||
