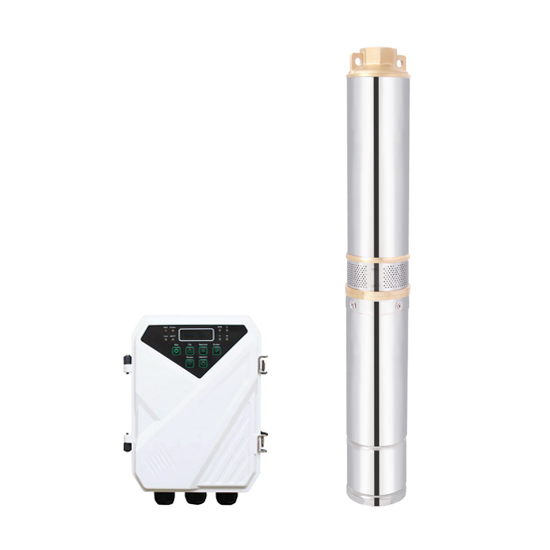

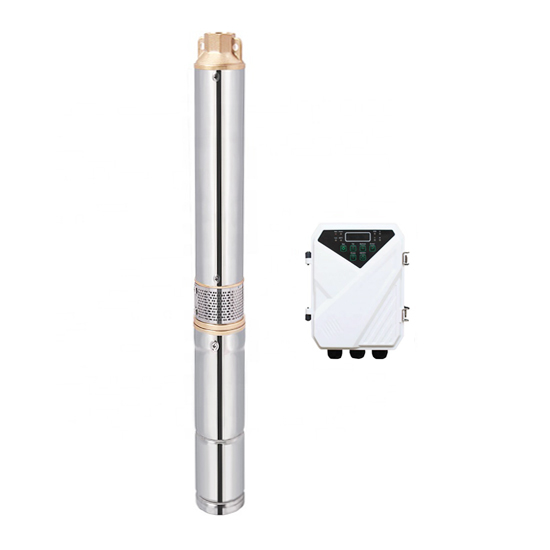

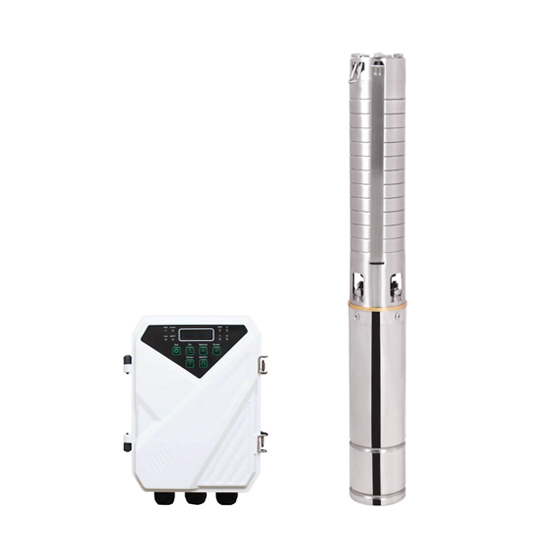

750W 48V DC Solar Water Pump
from
$783.55
Ex Tax: $783.55
- Stock: In Stock
- Model: HZTOHZ-SWP-48V750
- Weight: 1.00
- SKU: HZTOHZ-SWP-48V750
750W solar water pump with DC controller, 48V working voltage, 925~1585 gph max. flow, 56~95m max. head.
750W 48V DC solar water pump performance curves:

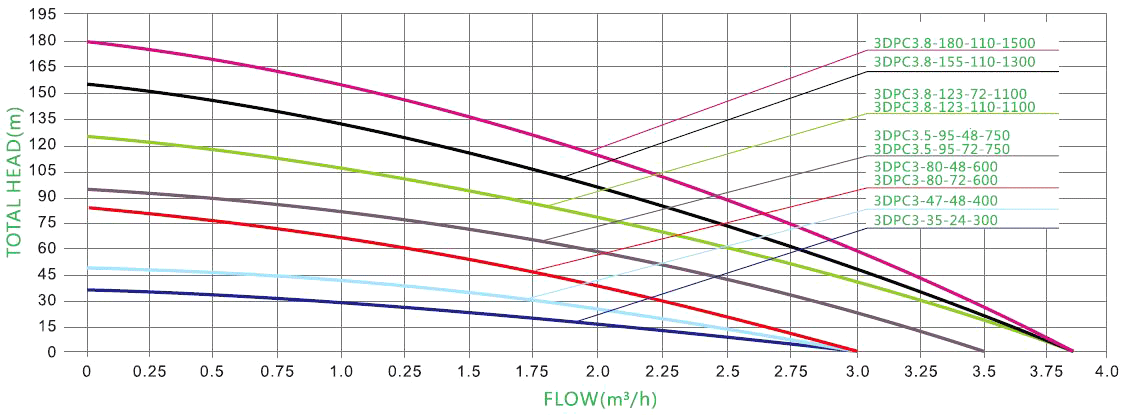

Max. Flow: 3.5m3/h, Max. Head: 95m, Model: 3DPC3.5-95-48-750

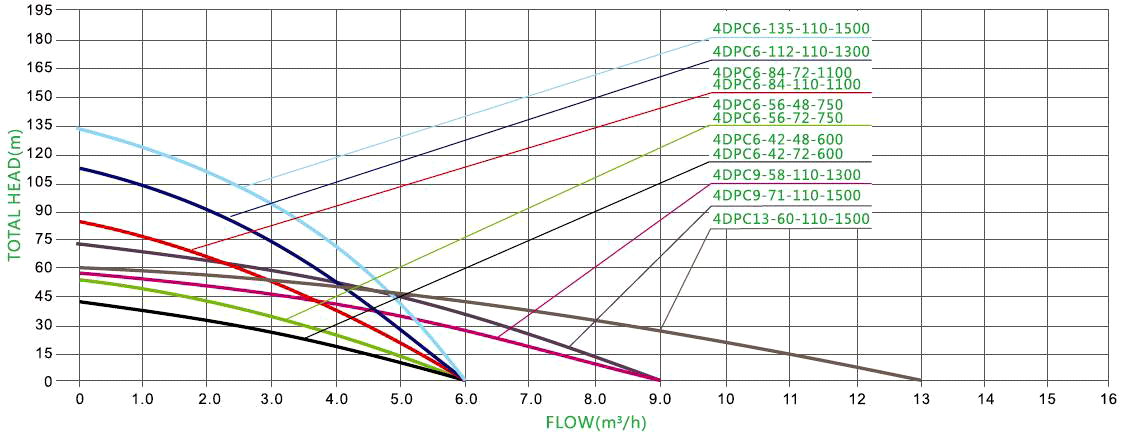

Max. Flow: 6.0m3/h, Max. Head: 56m, Model: 4DPC6-56-48-750

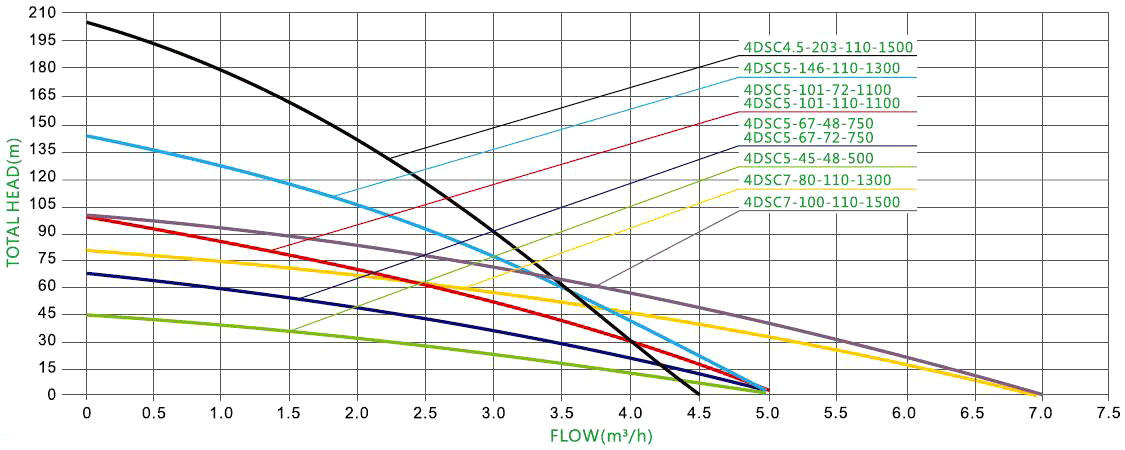

Max. Flow: 5.0m3/h, Max. Head: 67m, Model: 4DSC5-67-48-750

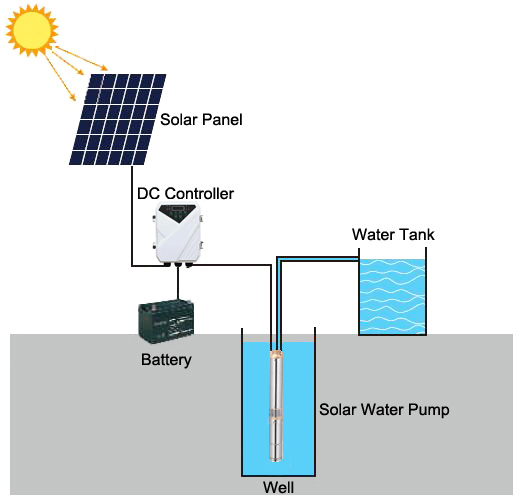

Solar water pump installation drawing:

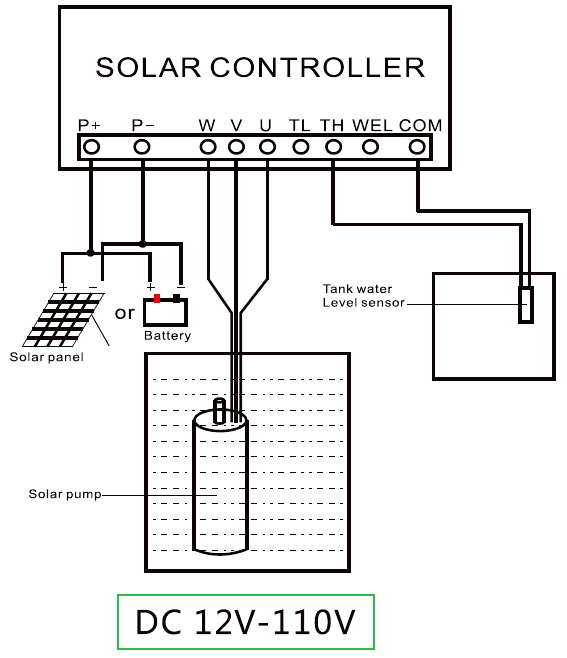

Solar water pump wiring diagram:
| Basics | SKU | HZTOHZ-SWP-48V750 | ||
| Shipping weight | 15kg | |||
| Cable length | 2m | |||

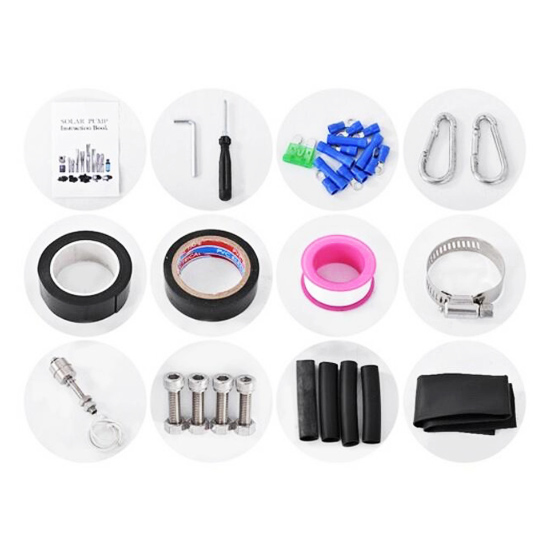

| Package included | 1 * Solar water pump 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual | |||
| Warranty | 2 years | |||
| Solar water pump features | Power | 750W (1 hp) | ||
| Voltage | 48V DC | |||
| Max. flow * | 3.5m3/h (925 gph, American system) | 6.0m3/h (1585 gph, American system) | 5.0m3/h (1321 gph, American system) | |
| Max. head * | 95m (310ft) | 56m (180ft) | 67m (220ft) | |
| Length | 70cm | 50cm | 50cm | |
| Inlet diameter | 3 inch | 4 inch | 4 inch | |
| Outlet diameter | 1.25 inch | 1.25 inch | 1.25 inch | |
| Impeller structure | Single-suction plastic impeller | Single-suction plastic impeller | Single-suction stainless steel impeller | |
| Material of outlet/connector/oil cylinder | Brass | Brass | Stainless steel or brass | |
| Model | 3DPC3.5-95-48-750 | 4DPC6-56-48-750 | 4DSC5-67-48-750 | |
| Internal motor | Brushless DC motor | |||
| Speed | 4000rpm | |||
| Material of shaft | 304 stainless steel | |||
| No water protection function | The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. | |||
| Required open circuit voltage (VOC) of solar panel | ＜100V DC | |||
| Required power of solar panel | ≥1.3*pump power | |||
| Efficiency | 45% | |||
| Controller features | Model | DF-48 | ||
| Best MPPT voltage range | 60-90V DC | |||
| Max. input current | 15A | |||
| Working temperature | -15~+60℃ (5~140℉) | |||
| Display | LED display can show power, voltage, current and speed value. | |||
| Functions | Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection | |||
| Protection class | IP65 | |||
