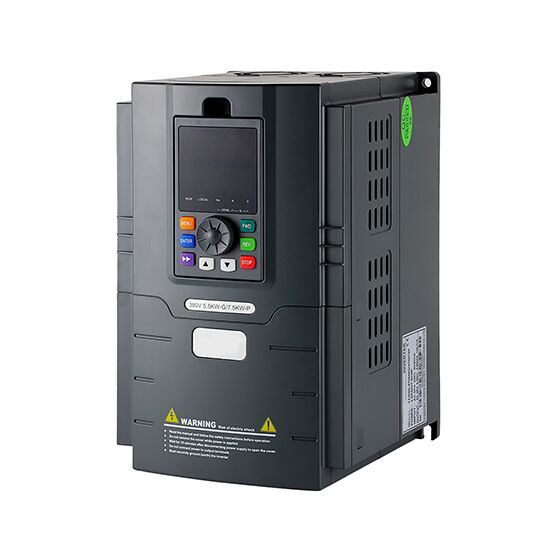

7.5 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0075
- Weight: 1.00
- SKU: GK3000-2S0075
10 hp variable frequency drive single phase to 3 phase, converting single phase to 3 phase, come with LCD and cooling fan, work at (–10℃, 40℃). The Interior PID controller is convenient for making closed-loop systems. Single-phase to three-phase inverters are widely used in small industrial equipment, commercial buildings, agricultural applications, energy saving and speed regulation, and green buildings.
Feature
- 1 phase to 3 phase inverter with RS485 communication mode, and frequency precision. Digital setting: max frequency ± 0.01%; Analog setting: max frequency ± 0.2%.
- Equipped with a cooling fan, the interior PID controller of single phase to 3 phase inverter is convenient for making closed-loop system.
- Come with an LCD display and multi-functional keys, inverter 1 phase to 3 phase works at( –10℃, 40℃).
- IP 20 protection rating of single phase to 3 phase inverter, compact and durable, easy to use.
Details

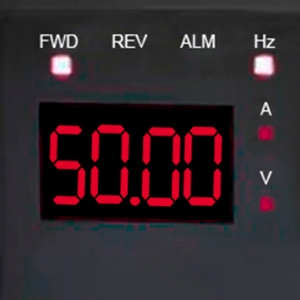

Digital Display
The LCD screen of the 7.5kw inverter 1 phase to three phase displays clear fonts. A 10hp inverter digital indicators of the single phase to 3 phase inverter will display the corresponding 7.5kw frequency inverter operating conditions, which can monitor real-time inverter data changes, and improve safety performance.

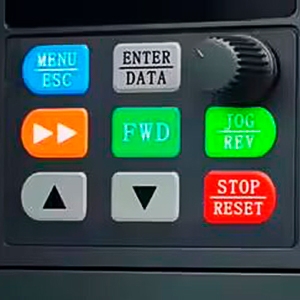

Multi-function Button
Come with multi-function keys, the frequency inverter from single phase to three phase has menu/exit, up/down keys, forward, and so on. Functional key of the variable frequency drive inverter is very convenient for adjusting single to three phase inverters' parameters and operating status at any time.

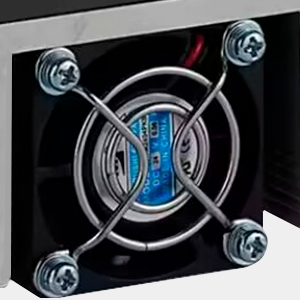

Cooling Fan
The intelligent cooling fan installed in the 10hp single phase to 3 phase inverter can introduce cooling air into the frequency inverter, which can reduce the 7.5kw variable frequency drive's component temperature, protect the devices from damage, and prolong 1 phase to three phase inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0075G |
| Capacity | 7.5 kW (10 hp) | |
| Shipping weight | 18 kg | |
| Dimension | 423*258*230 mm | |
| I/O Feature | Rated current | 32 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
