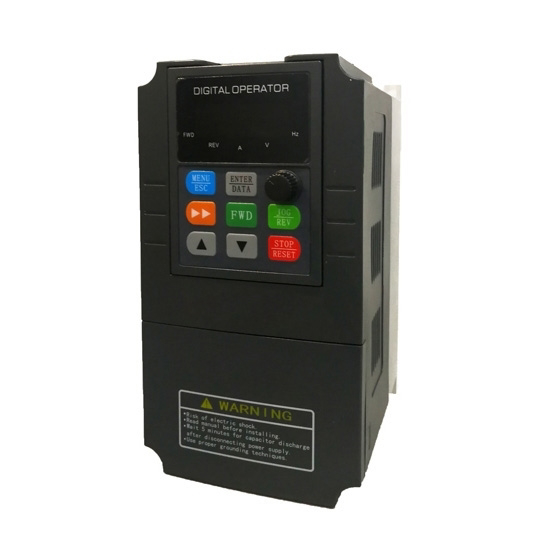

5.5 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0055
- Weight: 1.00
- SKU: GK3000-2S0055
Single phase to three phase frequency inverter, 5.5 kW (7.5 hp), 1-phase 220v, 230v, 240v 50Hz/60Hz input, 3 phase 0-220v output. Come with a cooling fan, 1 phase to 3 phase inverter has LCD to show parameters, and convenient real-time monitoring of working status. Equipped with a Panel speed control knob, the single phase to 3 phase inverter can manually adjust the operating speed.
Feature
- Equipped with a cooling fan, the single phase to 3 phase inverter has a strong heat dissipation capacity, which is conducive to maintaining the optimal internal operating temperature and protecting internal parts from damage.
- The LCD screen of the 1 phase to 3 phase inverter is moderate in size and has clear fonts. The installation of LCD makes the operating parameter changes more intuitive. The Interior PID controller is convenient for making closed-loop systems of inverter converting single phase to 3 phase.
- Come with a panel speed control knob, the operating speed of the variable frequency drive single phase to 3 phase can be adjusted by itself.
Details

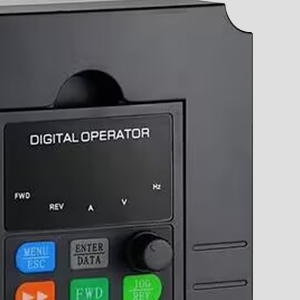

Digital Display
The electronic screen of the 5.5kw 1 phase to 3 phase inverter displays clear fonts. The digital inverter indicators of the variable frequency inverter will display the corresponding 5.5kw inverter operating conditions. It can monitor real-time inverter data changes, and improve safety performance.

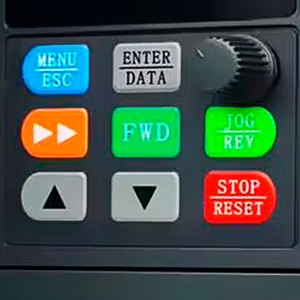

Multi-function Button
Come with multi-function keys, the inverter single phase to three phase has menu/exit, up/down keys, forward and stop/reset. The functional key of the variable frequency drive single phase to three phase is very convenient to adjust the frequency inverters' parameters and operating status at any time.

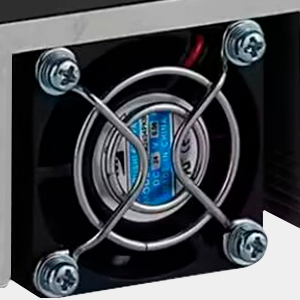

Cooling Fan
The intelligent cooling fan installed in the 7.5hp single phase to 3 phase inverter can introduce cooling air into the frequency inverter, which can reduce the 5.5kw variable frequency drive inverter's component temperature, protect the devices from damage, and prolong frequency drive inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0055 |
| Capacity | 5.5 kW (7.5 hp) | |
| Shipping weight | 11 kg | |
| Dimension | 339*231*234 mm | |
| I/O Feature | Rated current | 28 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
