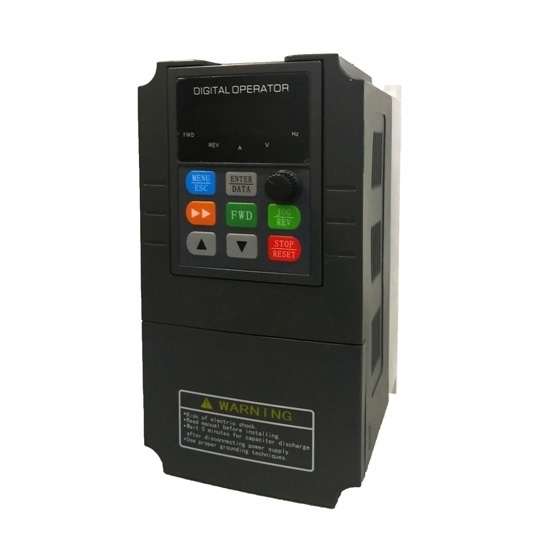

7.5 Hp VFD, Single Phase To Three Phase VFD

7.5 Hp VFD, Single Phase To Three Phase VFD
7.5 Hp VFD, Single Phase To Three Phase VFD
0 reviews • Write a review
from Save -12%
$697.22
$792.00
Ex Tax: $697.22
  • Stock: In Stock
  • Model: HZTOHZ-G80
  • Weight: 1.00
  • SKU: HZTOHZ-G80

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product

7.5 hp variable frequency drive, single phase 220v, 230v, 240v to three phase output.

Specification:

BasicsModelGK3000-2S0055G
Capacity7.5 hp (5.5 kW)
Shipping weight11 kg
Dimension339*231*214 mm
I/O FeatureRated current28 A
Input voltage1 phase 220V /230V /240V AC
Input frequency50Hz/60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: Summarize some important information of the impact on cable size of a motor
1) Always check the wiring to match the load profile - see motor nameplate data.
2) All motors are not created equal. If the motor is not rated for use with VFD, it is certain to fail quickly and dramatically, either by failure of insulation (and arc to chassis / ground) or by bearing failure due to circulating currents. So if it is not rated for VFD, don't use it with a VFD.
3) All cables are not created equal. VFDs produce voltage spikes in the order of 1600-2000V while artificially generating the desired sine wave that drives the motor. This is 2-4x the rating of most electrical wire insulation. If the wire is not rated for this voltage, it will quickly fail, allowing the voltage to ACR to nearest conductor (or personnel) with dangerous or deadly results.
