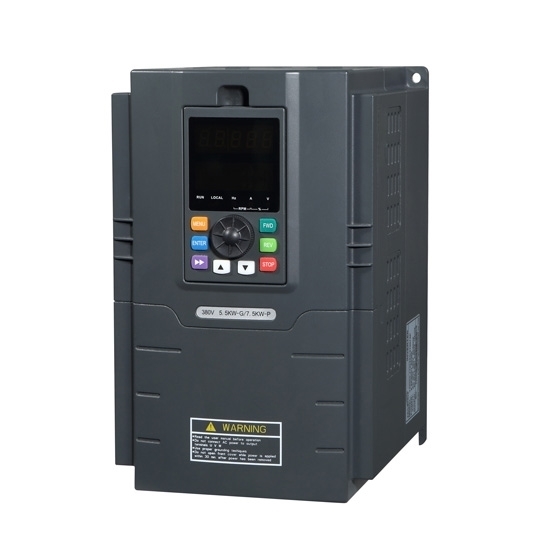

7.5 Hp (5.5 KW) VFD, 3 Phase 208V, 380V, 480V

7.5 Hp (5.5 KW) VFD, 3 Phase 208V, 380V, 480V
7.5 Hp (5.5 KW) VFD, 3 Phase 208V, 380V, 480V
0 reviews • Write a review
from Save -11%
$415.08
$467.00
Ex Tax: $415.08
  • Stock: In Stock
  • Model: HZTOHZ-G19
  • Weight: 1.00
  • SKU: HZTOHZ-G19

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product

7.5 hp heavy duty variable frequency drive, three phase 50Hz/60Hz 208V /380V /480V ±15%.

Specification:

BasicsModelGK3000-4T0055G/ GK3000-2T0055G
Capacity7.5 hp (5.5 kW)
Shipping weight6.5 kg
Dimension280*181*183 mm
I/O FeatureRated current13A at 380V ~ 480V, 25A at 220V ~ 240V
Input voltage3 phase 208V /380V /480V AC ±15% (Optional)
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:＜5.9m/s2 (0.6g); Transportation:＜15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: Can I install VFD to an extra enclosure?
In some cases it is feasible to apply containerized solutions for VFD systems, the generation of heat loss and transportation/exchange of heat has to verified with the changes in the ambient temperature and humidity of the environment. This is comparable to the marine applications where VFD panels end up in compartments below deck.

In most cases VFDs are installed in a controlled environment as you have to avoid dirt/dust and moisture. Ambient heat is mostly countered by considering it with the dimensioning of the VFD rating.

We installed the VFD input and output filters and other associated hardware in an IP55 sealed walk in skid enclosure. We then added an external industrial air conditioner on one end with stainless steel tubes to cool the internal heat and heat caused by the sun loading and high ambient temperatures.
