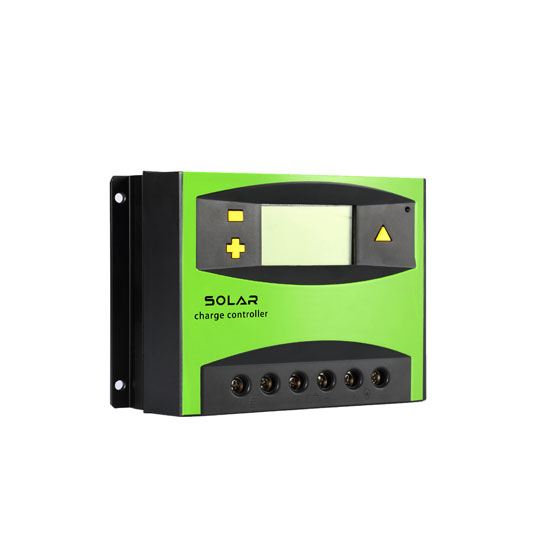

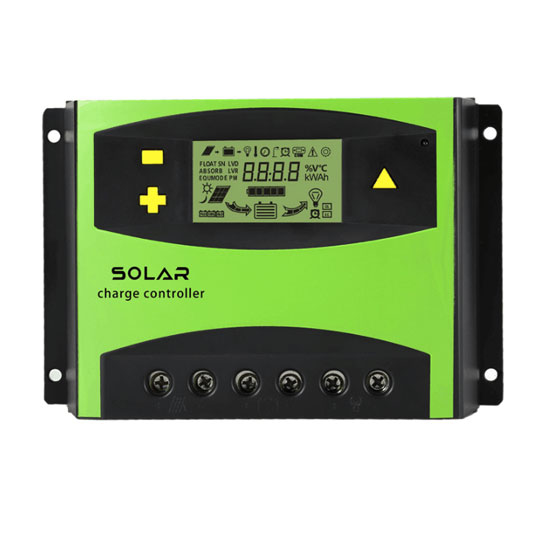

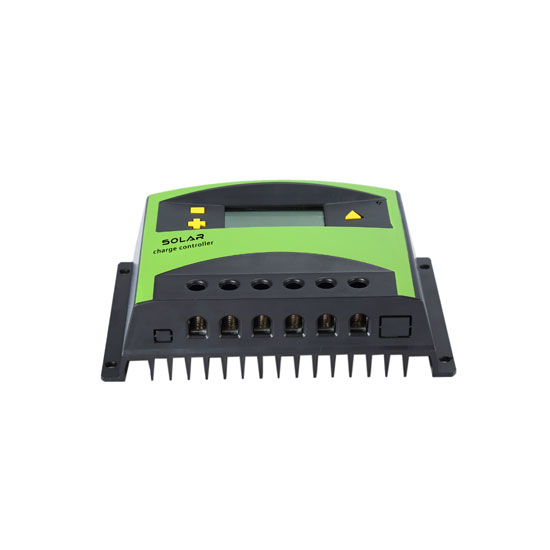

60A 12V/24V/48V PWM Solar Charge Controller
from
$101.26
Ex Tax: $101.26
- Stock: In Stock
- Model: HZTOHZ-PWM-LS-60
- Weight: 1.00
- SKU: HZTOHZ-PWM-LS-60
Safety 60 Amp PWM solar charge controller can automatically recognize 12V/24V/48V, clear LED display, it is widely used in solar control systems.
Features
- Automatic identification system voltage 12V/24V or 24V/48V.
- The 60 amp PWM solar charge controller has a personalized LCD, two-button operator, and page. High-performance PWM three-stage charging.
- You can choose to load the control template and set the streetlights in the world at night. 60a PWM solar charge controller has overvoltage, short circuit, overload, overcharge, and over-discharge protection.
- Accurate temperature compensation, correct charging, and discharging voltages automatically extend battery life.
- The default setting can be reset when the 12v PWM solar charge controller with the parameter set is powered off.
- The positive and negative terminals of the input terminal are reversely connected to protect 12 volt PWM controller.

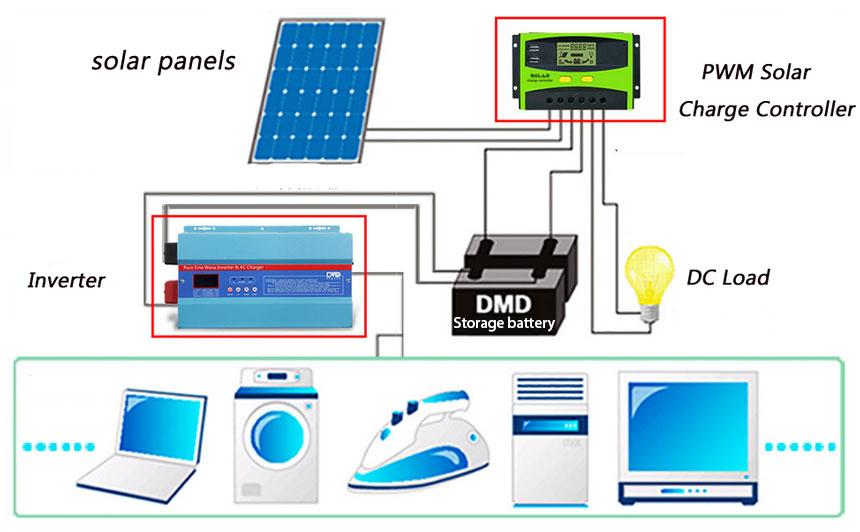

Circuit Diagram
| Model | HZTOHZ-PWM-LS-60 |
| System Voltage | DC 12V/24V, DC 24V/48V,automatically switch |
| The Max Voltage of The Solar Panel Input | 50V (12V/24V), 100V (24V/48V) |
| Self Los | ≤13mA |
| Max Charge Current | 20A |
| Max Discharge Current | 20A |
| LVD | (9-11V), 21V (18-22V), 42V (36-44V) |
| LVR | 12.6V (11-13.5V), 25.2V (22-27V), 50.4V (44-54V) |
| Floating Voltage | 13.8V (13-15V), 27.6V(26-30V), 55.2V(52-60V) |
| Increase the Charge | 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V/48V, start extra charge for 2 hours |
| Battery overpressure protection | 15V/30V/60V |
| Input Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, every two seconds to restart |
| Charging Mode | PWM |
| Temperature Compensation | -24mV℃， -48mV℃， -96-mV℃， relative to 12V/24V/48V System |
| Operating Temperature | -20℃- +55℃ |
| Terminal Scale | 28-10AWG |
| Waterproof level | IP 32 |
| Product Size | 195mm*107mm*59mm |
| Weight | 850g |
